1-34
HDC1000/V2 (J, E)
B3 x 8
B3 x 8
B3 x 8
K2 x 5
K2 x 5
B2.6 x 5
B3 x 5
To SWITCHING REG.
To
SWITCHING REG.
To
MB-1059(CN17)
1902
1904
1903
1910
1906
1901
1907
1909
1907
1912
1905
1908
1911

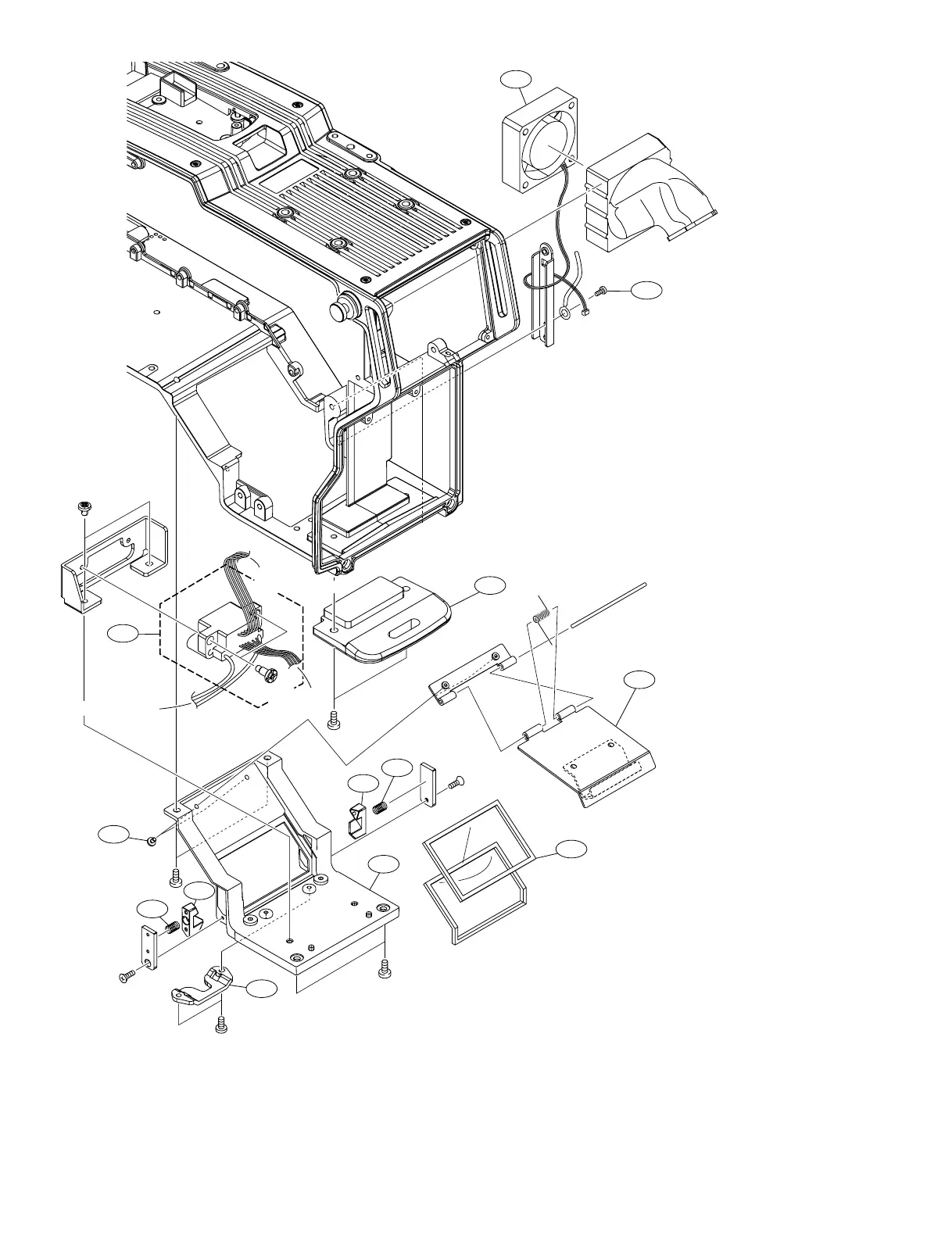

Hotshoe Block (HDC1400/1450/1500/1550/1580/1600)
No. Part No. SP Description
1901 X-3704-670-1 s HOT DOOR
1902 ! 1-787-070-11 s FAN, DC (41 SQUARE)
1903 1-963-924-11 s HARNESS, SUB (BUILD UP)
1904 3-364-941-01 s SCREW (+B) (2.6X5),NYLOK
1905 3-626-781-03 s STOPPER
1906 3-626-960-02 s GUARD,TAIL
1907 3-872-522-02 s SPRING,COMPRESSION(STOPPER)
1908 3-872-541-01 s BASE,HOT SHOE
1909 3-872-551-01 s STOPPER(L),HOT DOOR
1910 3-872-573-01 s WATER PROTECT(HOT DOOR)
1911 3-872-550-01 s STOPPER(R),HOT DOOR
1912 4-654-273-02 s ACE (M2), LOCK
7-621-555-30 s SCREW +K 2X5(EP-FE/ZNBK/CM2)
7-621-775-20 s SCREW +B2.6X5
7-682-546-09 s SCREW +B3X5
7-682-548-09 s SCREW +B 3X8
