47
Specifications
Specifications
General
Power requirements 240 V AC, 1.4 A (max.)
180 V DC, 1.0 A (max.)
12 V DC, 7 A (max.)
Operating temperature
−20°C to +45°C
Storage temperature −20°C to +60°C
Mass Approx. 4.5 kg (camera head only)
Imager
Imager 2/3-type CCD
Method 3-CCD, RGB
Effective resolution 1920 (horizontal) × 1080 (vertical)
Electrical characteristics
Sensitivity f11.0 (at 2000 lx with 89.9%
reflectivity)
Image S/N Typical −55 dB
Horizontal resolution
1000 TV lines (at center of screen)
5% or higher modulation
Registration 0.02% for total area (not including
lens distortion)
Geometric distortion Negligible (not including lens
distortion)
Optical system specifications
Spectral system F1.4 prism
Built-in filters Optical filter
1: clear
2: 1/4 ND
3: 1/16 ND
4: 1/64 ND
5: cross
Input/output connectors
CCU
Optical/electrical multi-connector
(1)
LENS 12-pin (1)
VF 20-pin (1)
MIC 1 IN XLR 3-pin, female (1)
AUDIO IN CH1, CH2
XLR 3-pin, female (1 each)
For MIC: −60 dBu (may be selected
to −20 dBu by menu or
HDCU1000/1080/1500
operations), balanced
For LINE: 0 dBu, balanced
INTERCOM1, INTERCOM2
XLR 5-pin, female (1 each)
EARPHONE Stereo minijack (1)
DC IN XLR 4-pin (1), 10.5 to 17 V DC
DC OUT 4-pin (1), 10.5 to 17 V DC, 1.5 A
maximum
It may be limited depending on the
load and input conditions.
TEST OUT BNC type (1)
RET2
WHT
OFF
ON
SET
BLK
AUTO B/W BAL
INTERCAM
LEVEL
SHUTTER
LEN
S
CALL
UP
FILTER
LOCAL
STATUS
GAIN OUTPUT WHITE BAL
CANCEL
DISPLAY
MENU
OFF
DOWN
POWER
198
362
135
105
266
Unit: mm

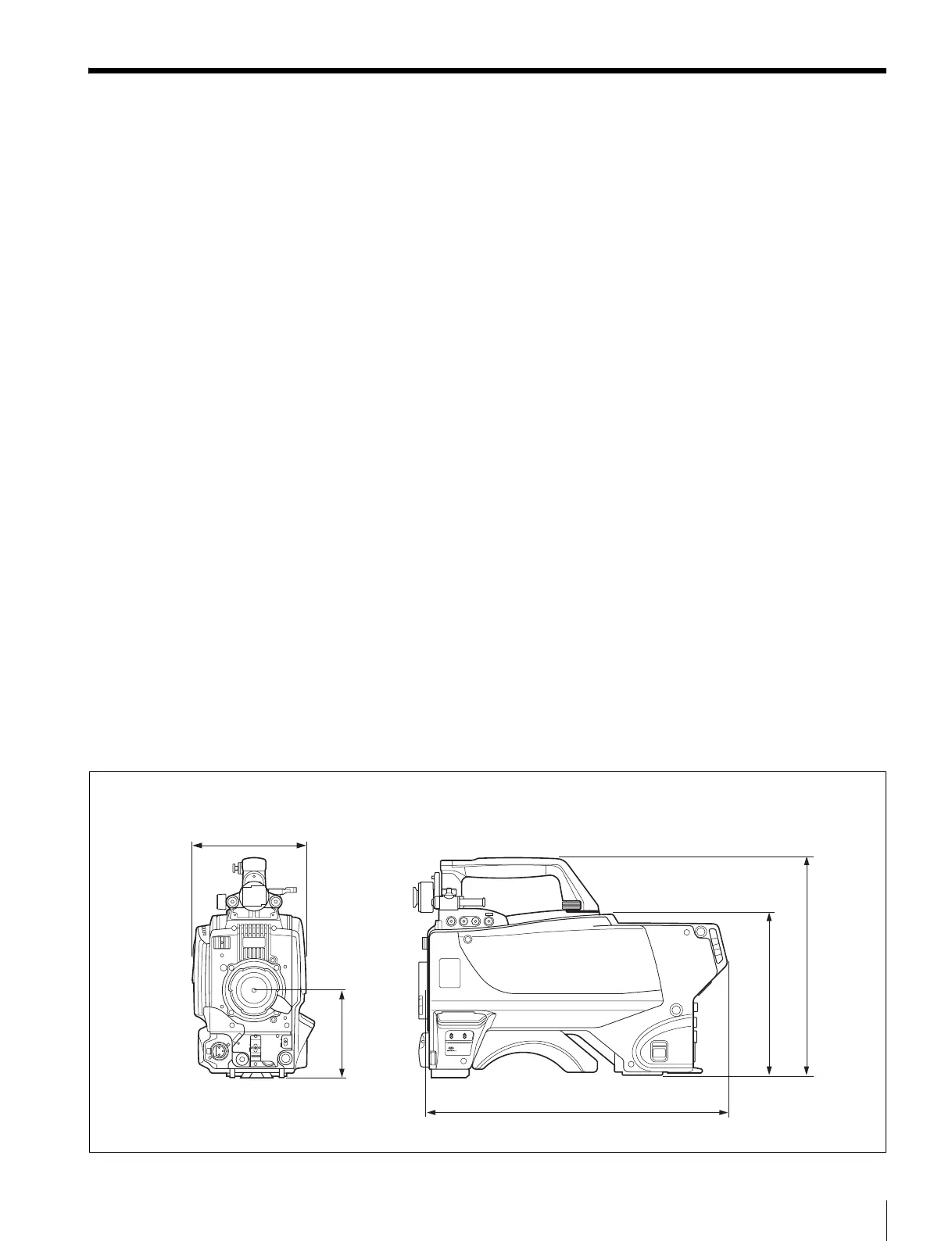

Dimensions
