Chapter 3 Preparations
Chapter 3 Preparations 3-3
HDSDI INPUT
REF. VIDEO
INPUT
HDSDI OUTPUT
REF. VIDEO
INPUT
•Connections for recording from a switcher or signal generator
•Connections for recording from an external VTR (player)

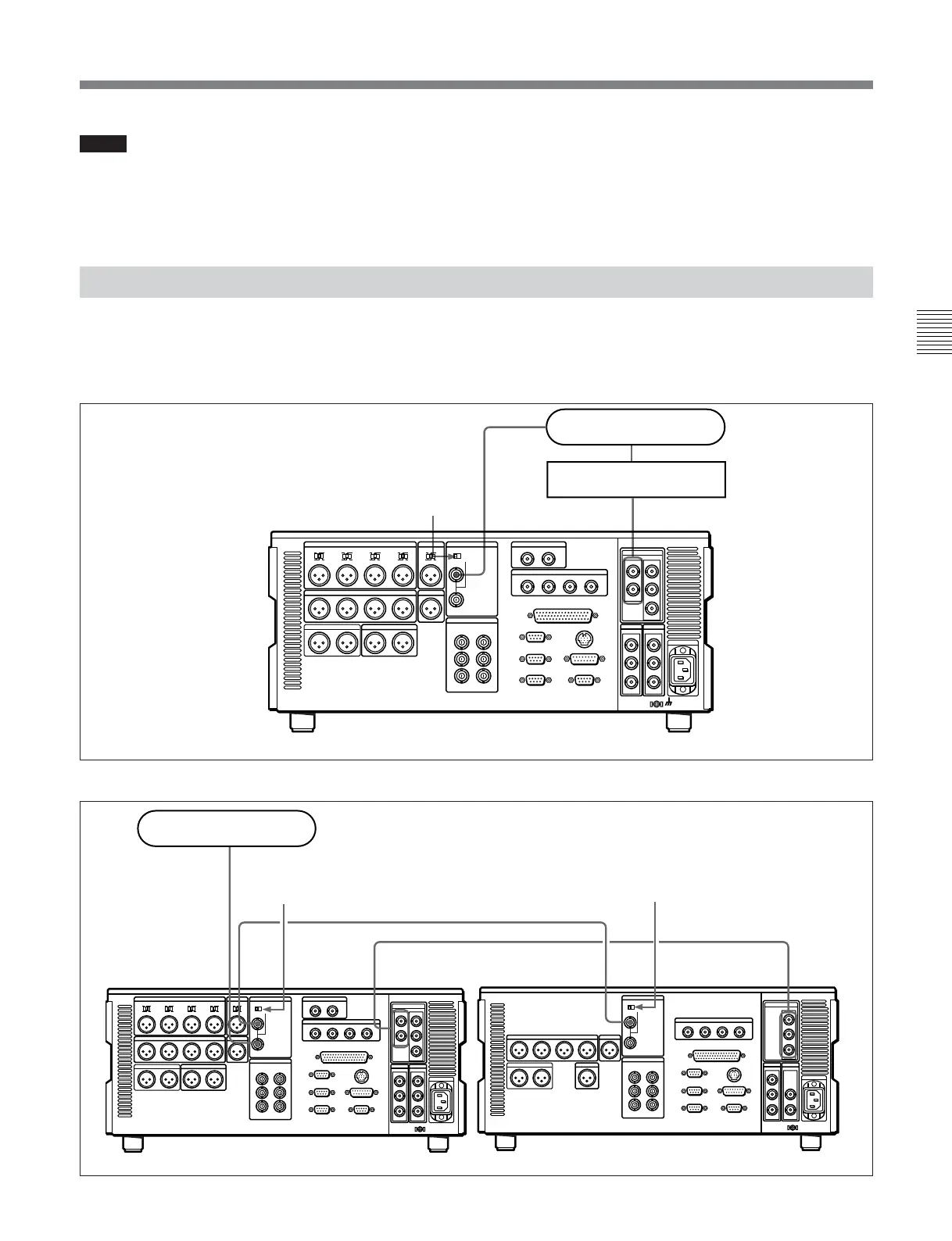

3-2-2 Connecting Reference Signals
Connect reference signals as shown below, according
to the way in which the unit is to be used.
Reference signal
HDW-2000/M2000/M2000P (recorder)
75 Ω termination switch: OFF
75 Ω termination switch: ON
HDSDI INPUT
REF. VIDEO
INPUT
75Ω
Reference signal
Switcher or signal generator
HDW-2000/M2000/M2000P
75 Ω termination switch: ON
HDW-M2100/M2100P (player)
Notes
•When there are no HD-SDI signal or SDTI signal
(option) input whereas INPUT is selected for
OUTREF, the unit synchronizes to the input
reference video signal.
•When there is no reference video signal input
whereas REF is selected for OUTREF, no external
reference signal is used. In this case, the unit
synchronizes to the internally generated reference
signal.
To Next Page
