4D
ISS switch (Interference Suppression Switch) on the rear panel
Cuts out the beat noise (whistle-like sound) which may occur while
recording a-m program from the HP-319 receiver onto the built-in
Cassette-corder; move the switch to either" 1 " or "2 ", depending
on which position reduces the beat noise.
~ PLAY bar
Depress this bar to playa cassette.
~ Cassette holder
4fj
Cassette lever
~~ .. slide and lock this lever to the left for fast forward tape
motion.
EJECT .
PUSH' depress this lever to stop the tape motion and eject the
cassette.
~ .. slide and lock this lever to the right to rewind the tape.
CR)
MICrophone jacks
4Ii>
Tape counter and RESET button
t!!l
RECord lamp
fl)
RECord button
Depress this button to record; the associated RECord lamp will
light.

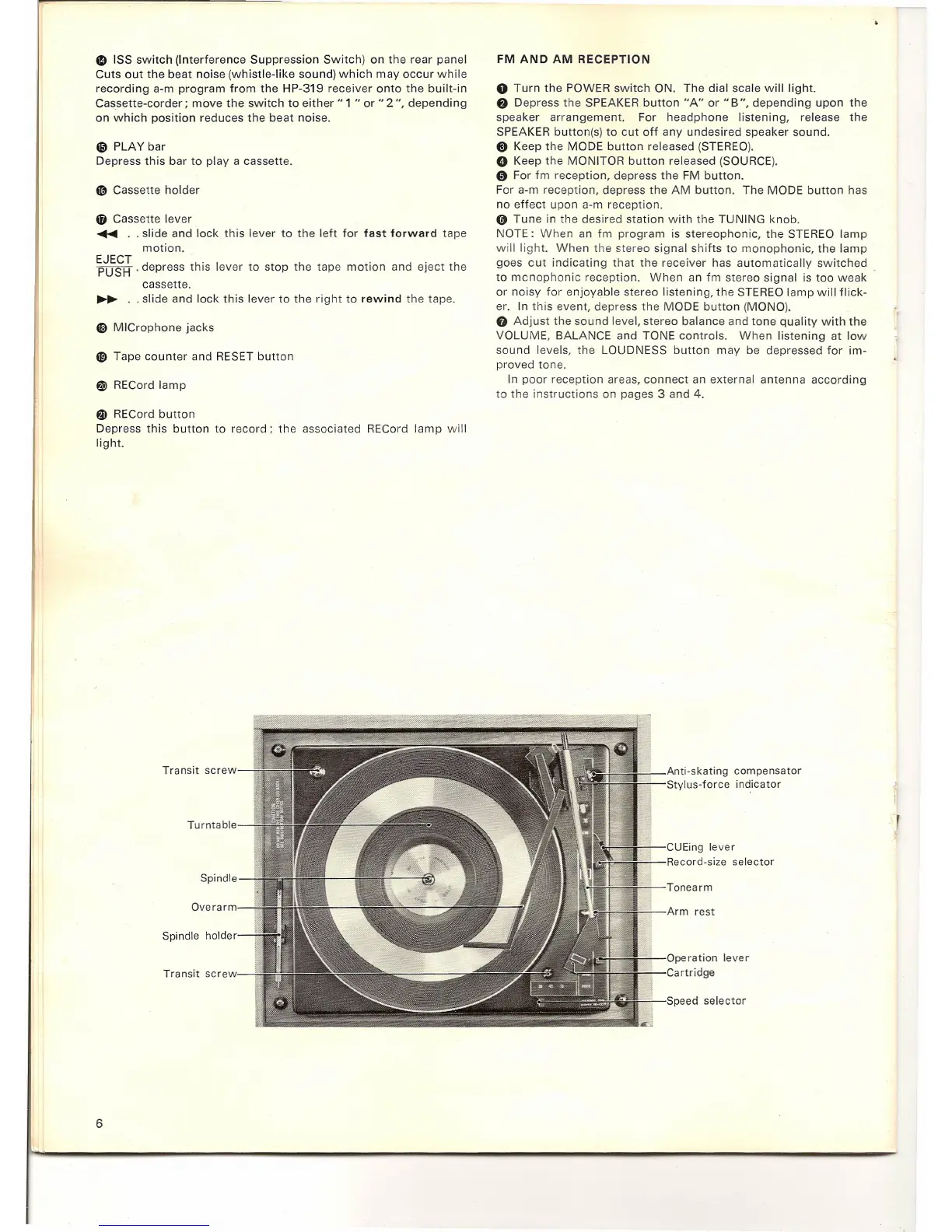

Transit screw
Turntable
Spindle
Overarm
Spindle holder
Transit screw
6
"
FM AND AM RECEPTION
o
Turn the POWER switch ON. The dial scale will light.
e
Depress the SPEAKER button "A" or "B ", depending upon the
speaker arrangement. For headphone listening, release the
SPEAKER button(s) to cut off any undesired speaker sound.
e
Keep the MODE button released (STEREO).
e
Keep the MONITOR button released (SOURCE).
o
For fm reception, depress the
FM
button.
For a-m reception, depress the AM button. The MODE button has
no effect upon a-m reception.
o
Tune in the desired station with the TUNING knob.
NOTE: When an fm program is stereophonic, the STEREO lamp
will light. When the stereo signal shifts to monophonic, the lamp
goes out indicating that the receiver has automatically switched
to monophonic reception. When an fm stereo signal is too weak
or noisy for enjoyable stereo listening, the STEREO lamp will flick-
er. In this event, depress the MODE button (MONO).
e
Adjust the sound level, stereo balance and tone quality with the
VOLUME, BALANCE and TONE controls. When listening at low
sound levels, the LOUDNESS button may be depressed for im-
proved tone.
In poor reception areas, connect an external antenna according
to the instructions on pages 3 and 4.
"",",~~_Anti-skating compensator
A~--Stylus-force indicator
CUEing lever
Record-size selector
Tonearm
Arm rest
Operation leve r
Cartridge
Speed selector
