Connect your speakers to the receiver. This receiver allows you to use a 5.1 channel speaker system.
To fully enjoy theater-like multi channel surround sound requires five speakers (two front speakers, a
center speaker, and two surround speakers) and a sub woofer (5.1 channel).

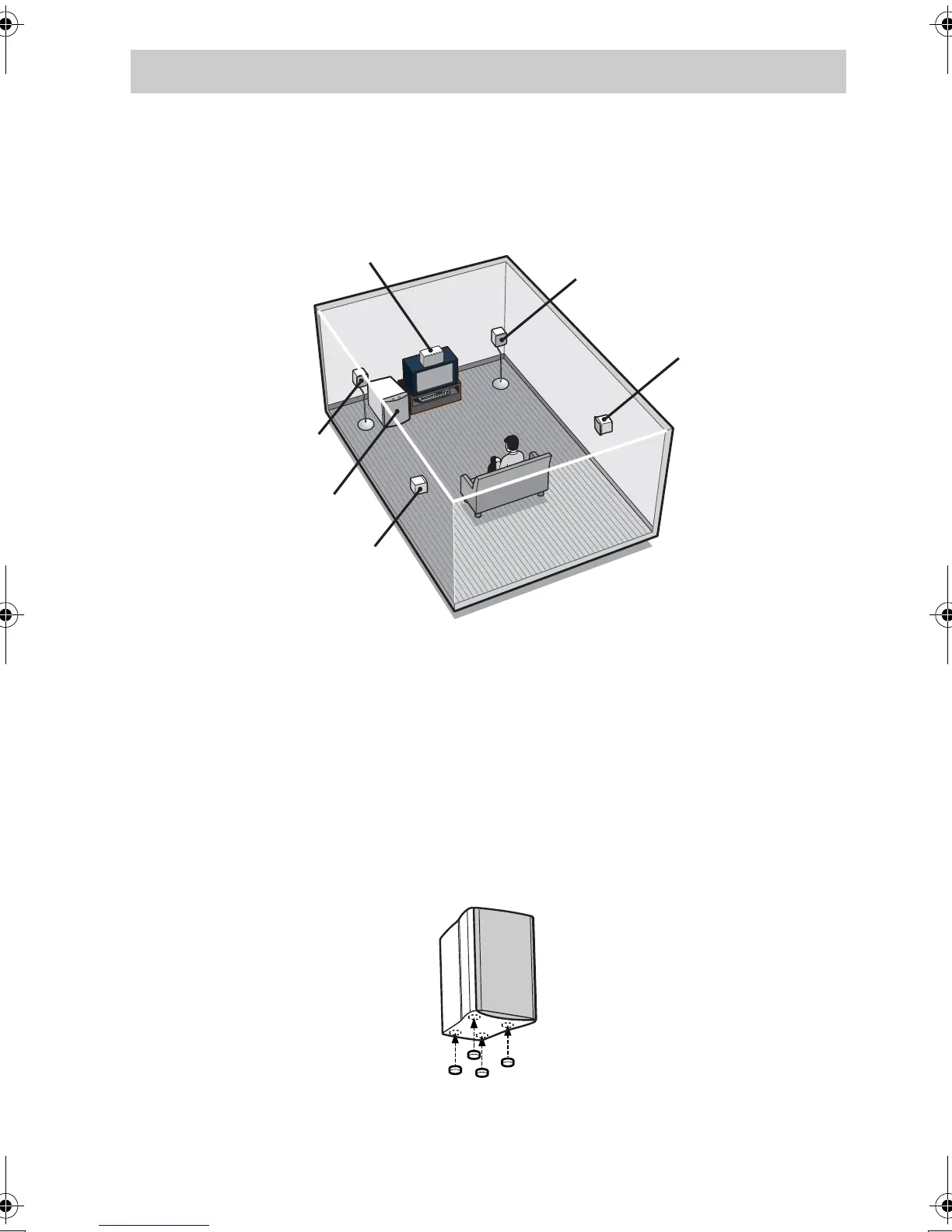

Example of 5.1 channel speaker system configuration
Tips
• Since the sub woofer does not emit highly directional signals, you can place it wherever you want.
• For greater flexibility in the positioning of the speakers, use the optional WS-FV11 or WS-FV10D floor stand
(available only in certain countries).
Note
Connect the long speaker connecting cords to the surround speaker terminals and the short speaker connecting cords
to the front and center speaker terminals.
Attaching foot pads
To prevent speaker vibration or movement, attach the supplied foot pads to the speaker as shown in the
illustration below.
Note
Be sure to attach the supplied foot pads to the sub woofer as well.
3: Connecting speakers
Front speaker (Right)
Surround speaker (Right)
Center speaker
Front speaker (Left)
Sub woofer
Surround speaker (Left)
