HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format.
Note
You can also rename the DVD input so that it can be
displayed on the receiver’s display. For details, see
“Naming inputs” (page 40).
To enjoy TV multi channel
surround sound broadcasting
You can listen to TV multi channel surround
sound broadcasting from the speakers
connected to the receiver.
Connect the OPTICAL output jack of the TV
to the OPTICAL IN jack of the receiver.
* Connect at least one of the audio cords (B or C).

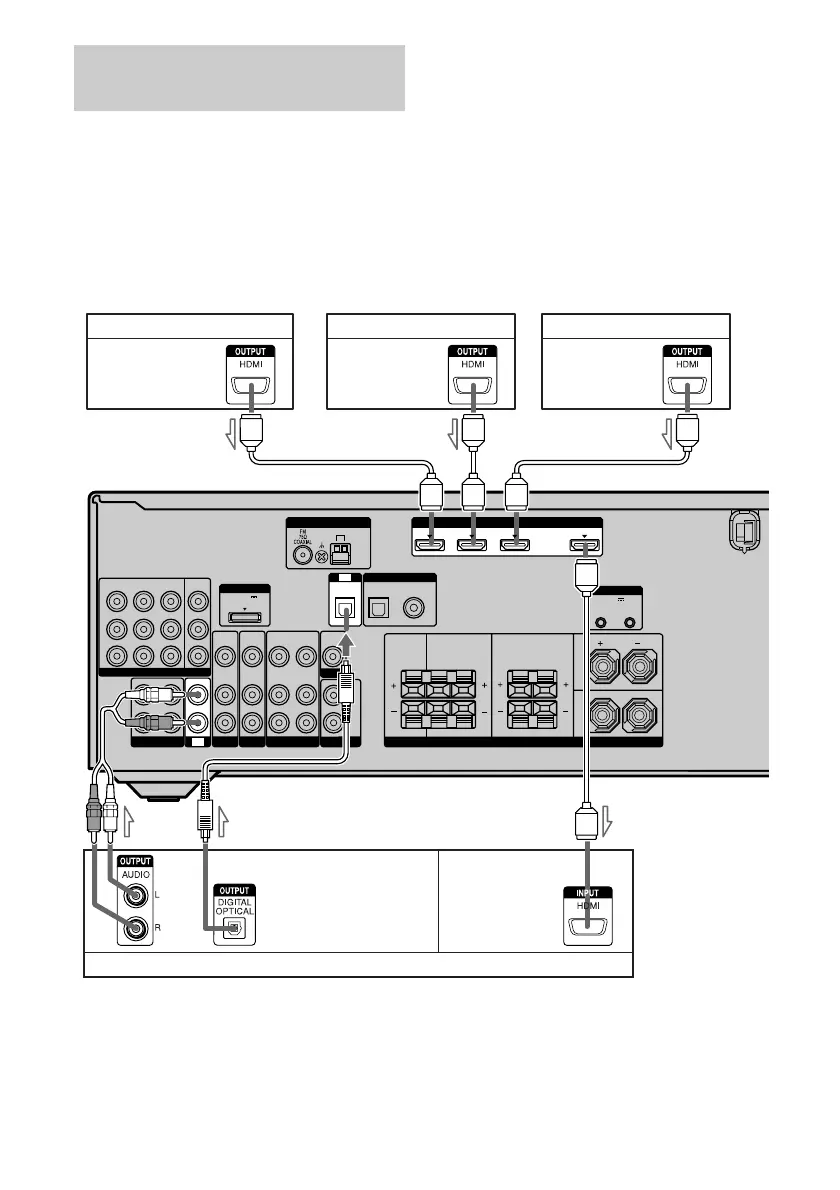

Connecting components with
