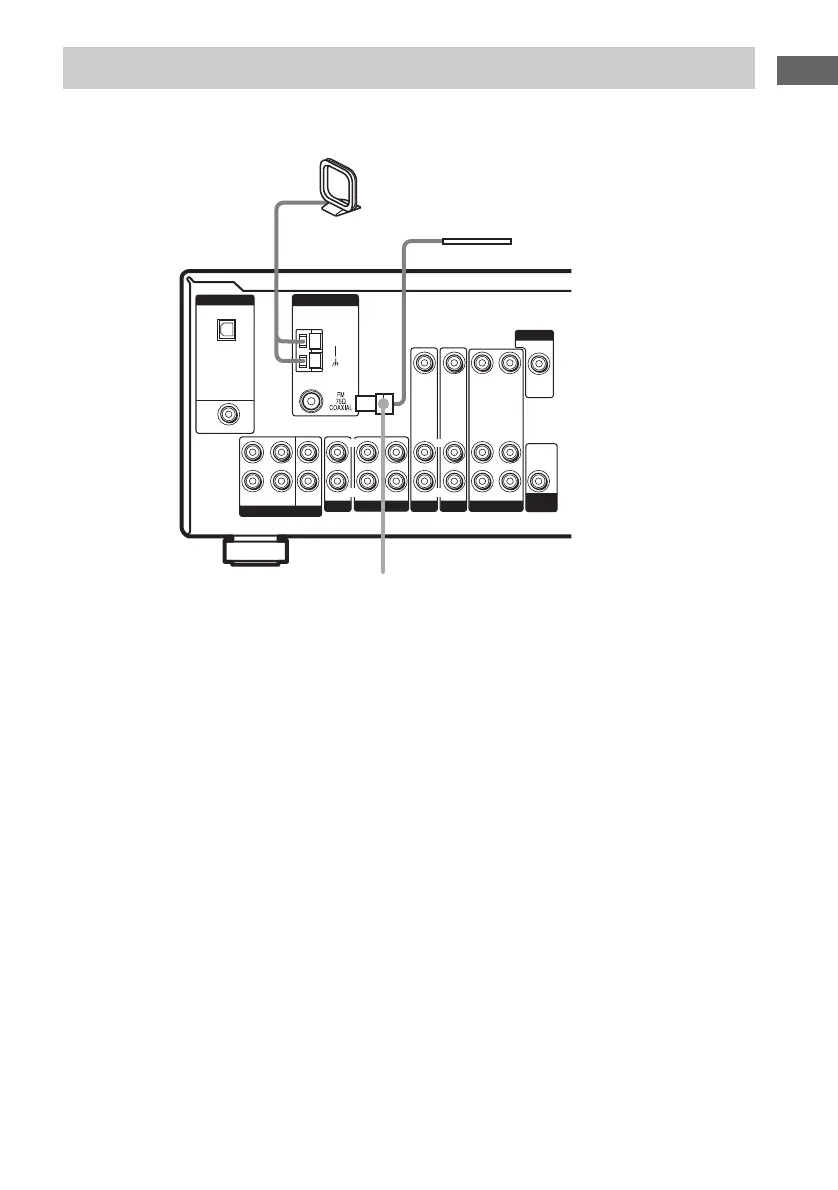

Connect the supplied AM loop antenna and FM wire antenna.
*
The shape of the connector varies depending on the area code.
Notes
• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
2: Connecting the antennas
ANTENNA
DIGITAL
OPTICAL
VIDEO 2
IN
DVD IN
COAXIAL
L
R
CD
IN OUT
IN
L
R
MULTI CH IN
FRONT SURROUND
SUB
WOOFER
CENTER
L
R
L
R
MONITOR
SUB
WOOFER
VIDEO 1
VIDEO 2
DVD
AUDIO IN AUDIO IN
AUDIO OUT AUDIO IN
VIDEO IN VIDEO IN
VIDEO OUT VIDEO IN
VIDEO OUT
AUDIO
OUT
AM
*
MD/TAPE
L
R
AM loop antenna
(supplied)
FM wire antenna
(supplied)
