The following illustration shows how to
connect audio components such as Super
Audio CD player, etc.

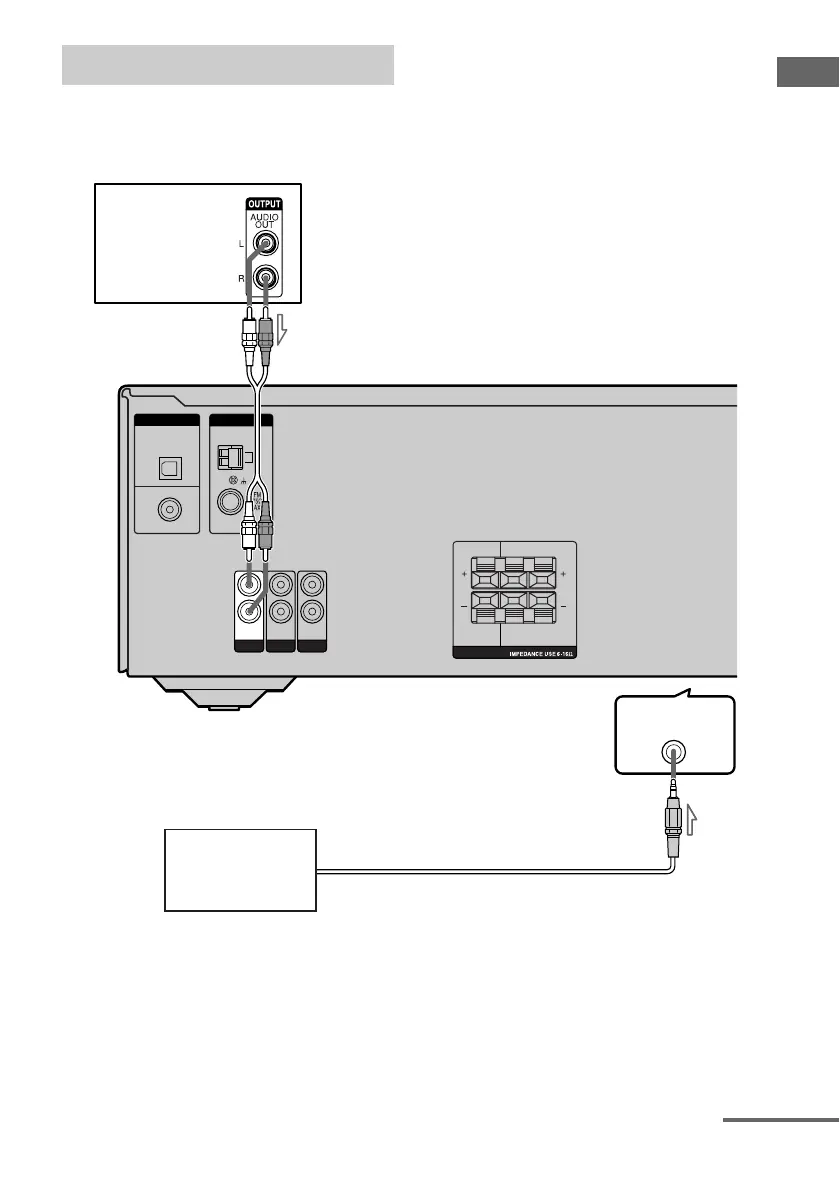

Connecting audio components
SUB
WOOFER
DVD
IN
DIGITAL
OPTICAL
VIDEO 2/
BD IN
COAXIAL
ANTENNA
AM
L
R
TV
AUDIO IN
SAT
AUDIO IN
SURROUND
LR
LR
SPEAKERS
SA-CD / CD
AUDIO IN
VIDEO 1 IN/
PORTABLE AUDIO IN/
AUTO CAL MIC
Super Audio CD
player/CD player
A
A Audio cord (not supplied)
B RCA cable with stereo headphone jack (not supplied)
To the VIDEO 1 IN/PORTABLE AUDIO IN/
AUTO CAL MIC jack (Front panel)
Portable audio
B
