Getting Started
Description and location of parts

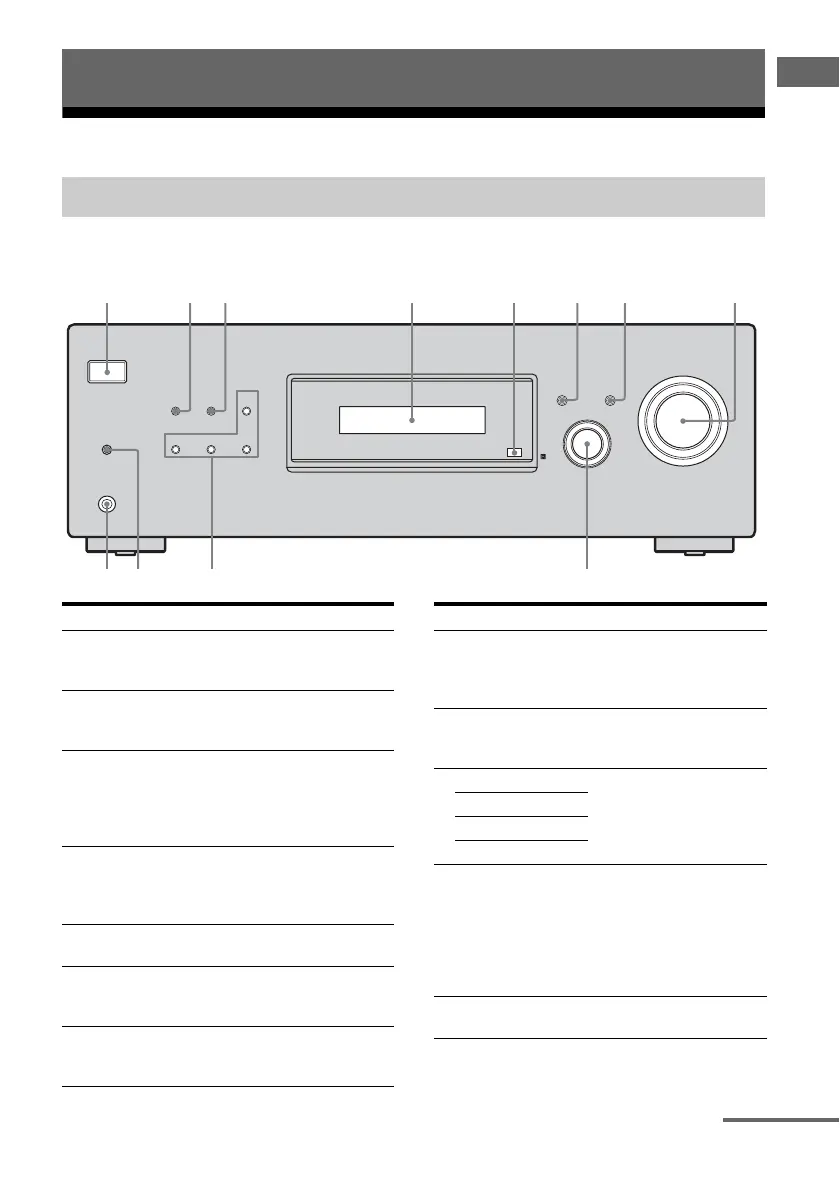

Front panel
Getting Started
Receiver
VIDEO 1 IN/
PORTABLE AUDIO IN/
AUTO CAL MIC
PHONES
INPUT SELECTOR
A.F.D. MOVIE MUSIC
?/1
DISPLAY
MASTER VOLUME
AUTO CAL
DIMMER SLEEP
9
qa
q;qs
145
2CH
32
Name Function
A ?/1
(on/standby)
Press to turn the receiver
on or off (page 20, 27, 28,
43, 57).
B DIMMER Press to adjust the
brightness of the display
(page 37).
C SLEEP Press to activate the Sleep
Timer function and the
duration which the receiver
turns off automatically
(page 49).
D Display The current status of the
selected component or a
list of selectable items
appears here (page 6).
E Remote sensor Receives signals from
remote commander.
F DISPLAY Press to select information
displayed on the display
(page 49).
G AUTO CAL Press to activate the Auto
Calibration function (page
22).
Name Function
H MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 25, 26, 27,
28).
I INPUT
SELECTOR
Turn to select the input
source to playback (page
26, 27, 28, 48).
J 2CH Press to select a sound field
(page 38).
A.F.D.
MOVIE
MUSIC
K VIDEO 1 IN/
PORTABLE
AUDIO IN/
AUTO CAL MIC
jack
– Connects to the supplied
optimizer microphone for
the Auto Calibration
function (page 22).
– Connects to a portable
audio such as an MP3
player, etc. (page 15).
L PHONES jack Connects to headphones
(page 54).
