Connections
1: Installing the speakers
HT-M77
This receiver allows you to use a 7 channel
speaker with 2 subwoofer system.
HT-M55
This receiver allows you to use a 5 channel
speaker with 2 subwoofer system.
HT-M22
This receiver allows you to use a 5 channel
speaker with 1 subwoofer system.
You can enjoy different sound effects from
the system by placing the speakers as
shown below.
A Front speaker (left)
B Front speaker (right)
C Center speaker
D Surround speaker (left)
E Surround speaker (right)
F Surround back speaker (left)
G Surround back speaker (right)
H Subwoofer

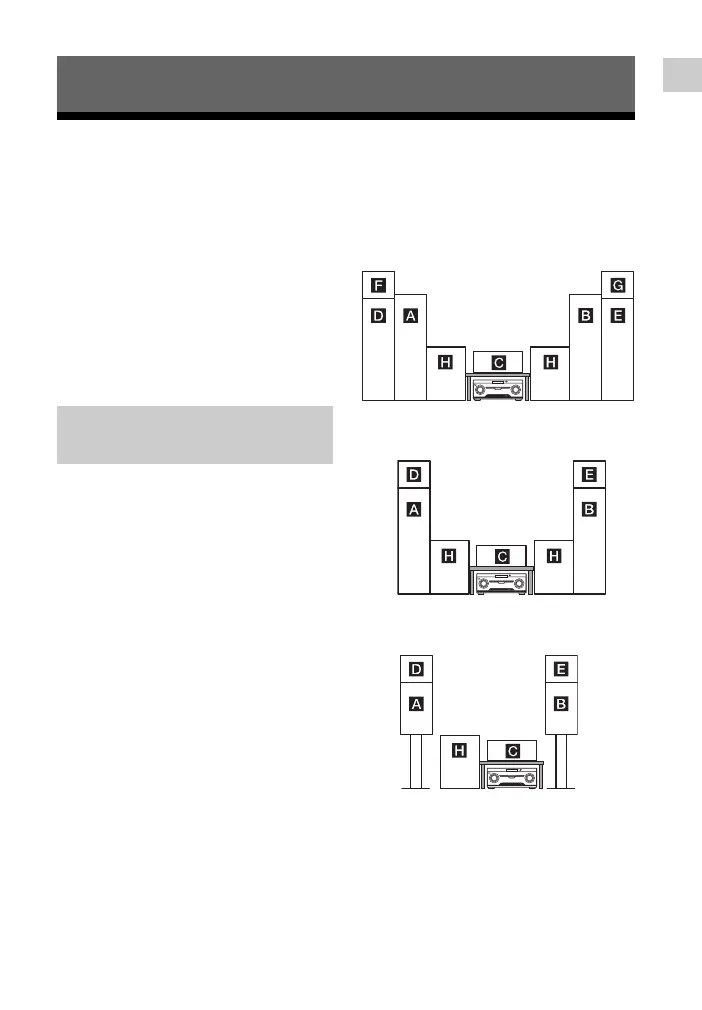

Installing all the speakers in
front position (Speaker
layout: All Front)
– HT-M77
– HT-M55
– HT-M22
Connections
Example of speaker
system configuration
