HT-S20R
13
Sony CONFIDENTIAL
For Authorized Servicer

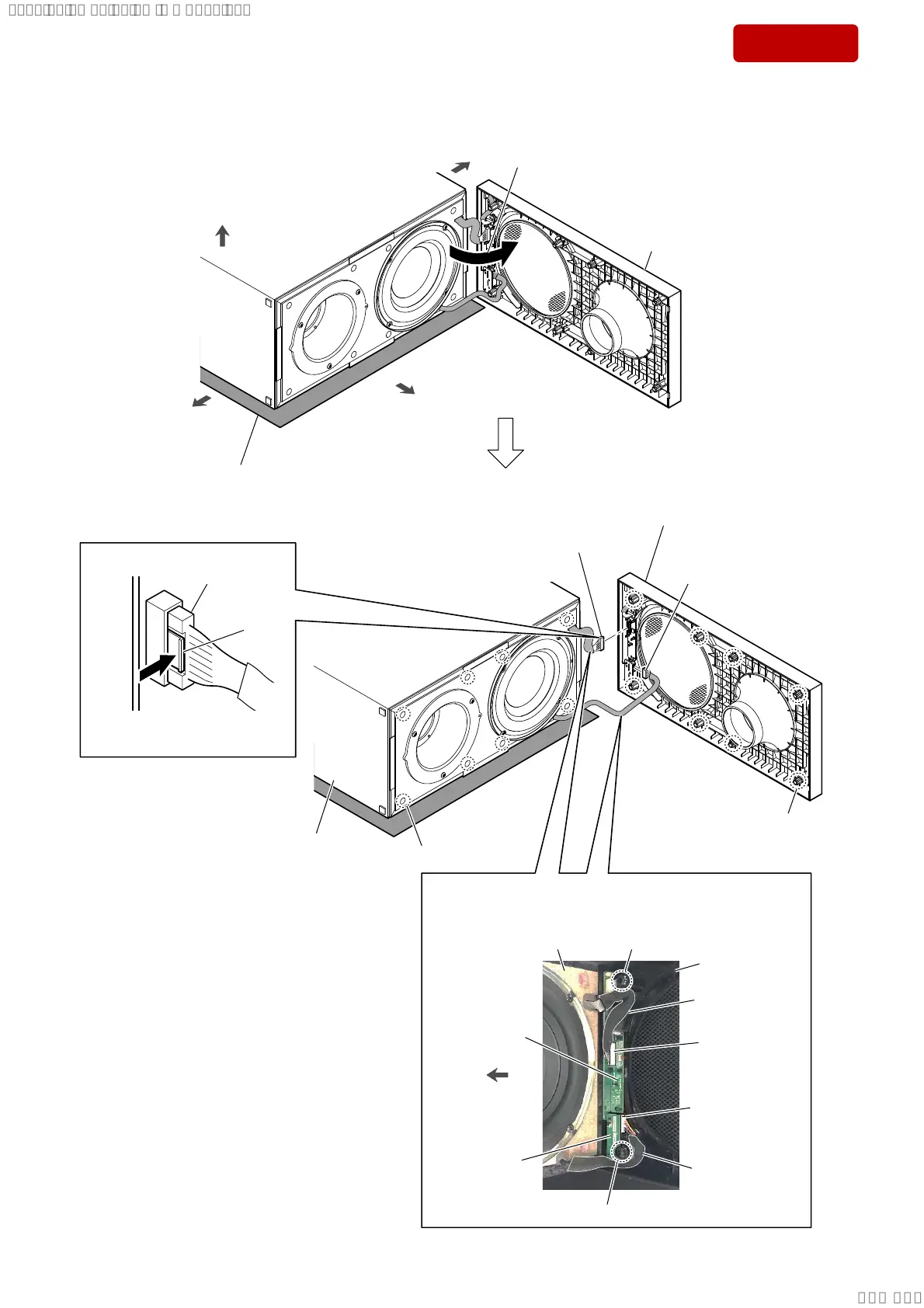

2-7. FRONT PANEL BLOCK-2 (SA-WS20R)
5 front panel block
Note 2: When installing the front panel block,
remove cleanly the sticked bond on
bosses and holes, and apply bond to
the speaker cabinet holes again and
install it.
top side
bottom side
front side
left side
soft cloth, etc.
Note 1:
When working with the side other than
the bottom side facing downward, lay
a soft cloth, etc. so as not to damage.
front panel block
1 Open the front panel block
in the direction of the arrow.
2 MAIN board cable
connector (CN302)
4 MAIN board cable
connector (CN1001)
total eight bosses
speaker cabinet
total eight holes
&DEOHVHWWLQJ
bottom side
DISPLAY board
connector
(CN1001)
boss
MAIN board cable
(6 pin)
boss
MAIN board cable
(15 pin)
speaker cabinet
front panel block
USB board
connector
(CN302)
Note 3:
When installing the front panel block, be careful
not to pinch the two MAIN board cables.
3 Draw the connector while
pressing the claw.
claw
connector
(CN1001)
SYSSET
2021/02/1022:25:21(GMT+09:00)
