Sony HT-S20R User Manual

HT-S20R
14
Sony CONFIDENTIAL
For Authorized Servicer

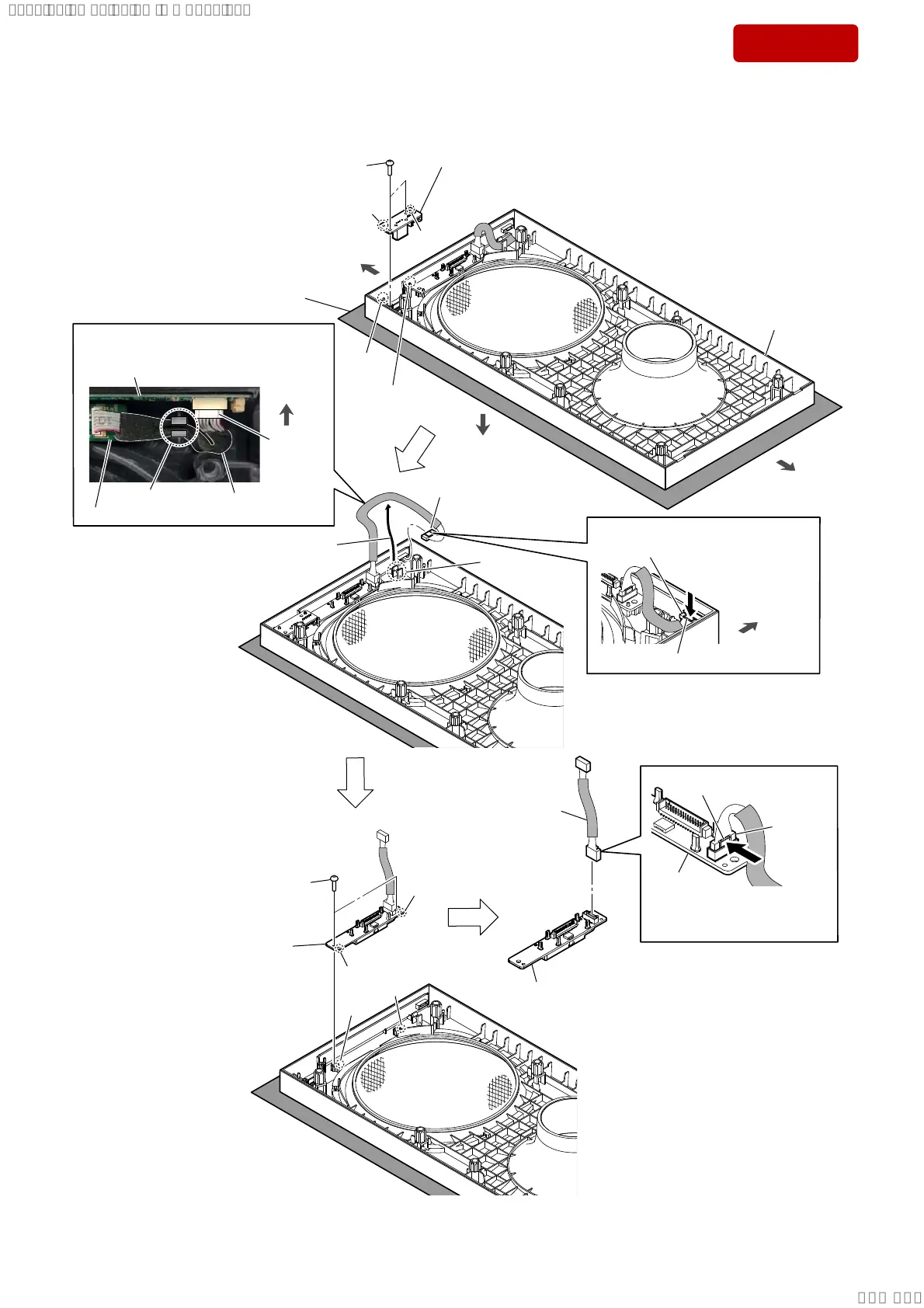

2-8. USB BOARD, DISPLAY BOARD (SA-WS20R)
hole
hole
hole
hole
boss
boss
boss
boss
soft cloth, etc.
Note 1:
When working with the side other than
the bottom side facing downward, lay
a soft cloth, etc. so as not to damage.
front panel block
front side
top side
bottom side
1 two screws
(PTP2.5 u 6)
2 USB board
Note 2:
When installing the USB board,
align the two holes and two bosses.
hook
3 Draw the DISPLAY board
cable out of the hook.
claw
connector
(CN1004)
5 DISPLAY board cable
connector (CN401)
6 two screws
(PTP2.5 u 6)
7 DISPLAY board block
Note 3:
When installing the DISPLAY
board block, align the two holes
and two bosses.
hook
',63/$<ERDUGFDEOHVHWWLQJ
DISPLAY board cable
DISPLAY board
connector
(CN401)
top side
TOUCH
KEY board
claw
connector
(CN401)
4 Draw the connector
while pressing the
claw.
top side
8 Draw the connector
while pressing the
claw.
9 DISPLAY board cable
0 DISPLAY board
–,QQHUYLHZ–
DISPLAY
board
SYSSET
2021/02/1022:25:21(GMT+09:00)

Sony HT-S20R Specifications

General

Equalizer	Yes
Audio decoders	Dolby Digital, Dolby Dual Mono
RMS rated power	400 W
Audio output channels	5.1 channels
Surround modes quantity	4
Wi-Fi	-
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
Soundbar speaker RMS power	- W
Subwoofer type	Active subwoofer
Subwoofer connectivity	Wired
Product color	Black
Wall mountable	No
Cables included	AC
Package type	Box
Package depth	553 mm
Package width	843 mm
Package height	248 mm
Package weight	13000 g
AC input voltage	220 - 240 V
AC input frequency	50 / 60 Hz

Weight and Dimensions

Depth	86 mm
Width	760 mm
Height	52 mm
Soundbar weight	2000 g
Subwoofer depth	342 mm
Subwoofer width	192 mm
Subwoofer height	387 mm
Subwoofer weight	6900 g
