Sony HT-ST7 - IR Repeater Function

2

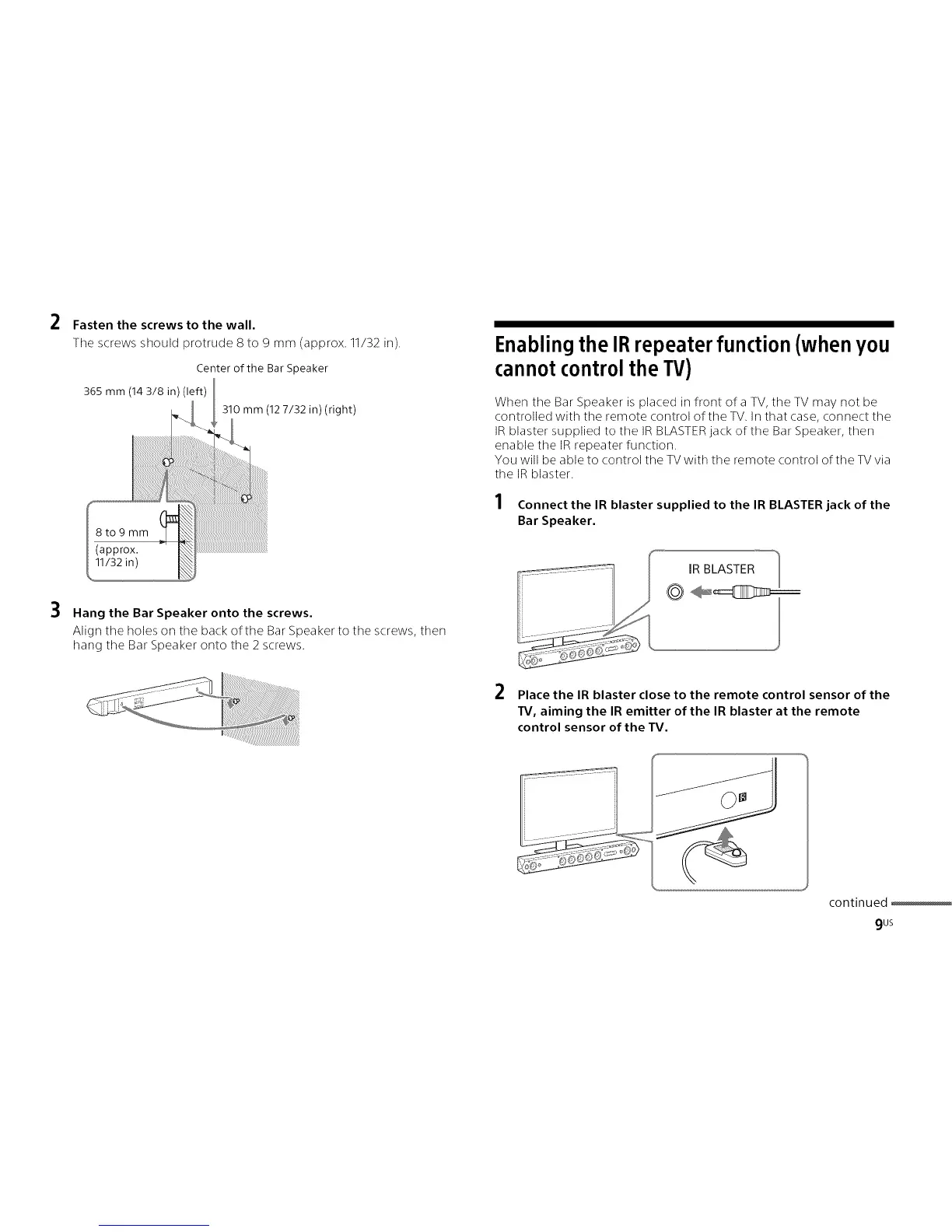

Fasten the screws to the wall.
The screws should protrude 8 to 9 mm (approx. 11/32 in).
Center of the Bar Speaker
365 mm (14 3/8 in) (left)
310 mm (12 7/32 in) (right)
Enablingthe IRrepeater function (when you
cannotcontrol the TV}
When the Bar Speaker is placed in front of a TV, the TV may not be
controlled with the remote control of the TV. In that case, connect the
IR blaster supplied to the IR BLASTER jack of the Bar Speaker, then
enable the IR repeater function.
You will be able to control theTVwith the remote control of the TVvia
the IR blaster.
1 Connect the IR blaster supplied to the IR BLASTER jack of the
Bar Speaker.
3 Hang the Bar Speaker onto the screws.
Align the holes on the back of the Bar Speaker to the screws, then
hang the Bar Speaker onto the 2 screws.
"1
/ Place the IR blaster close to the remote control sensor of the
TV, aiming the IR emitter of the IR blaster at the remote
control sensor of the TV.
continued
9us
