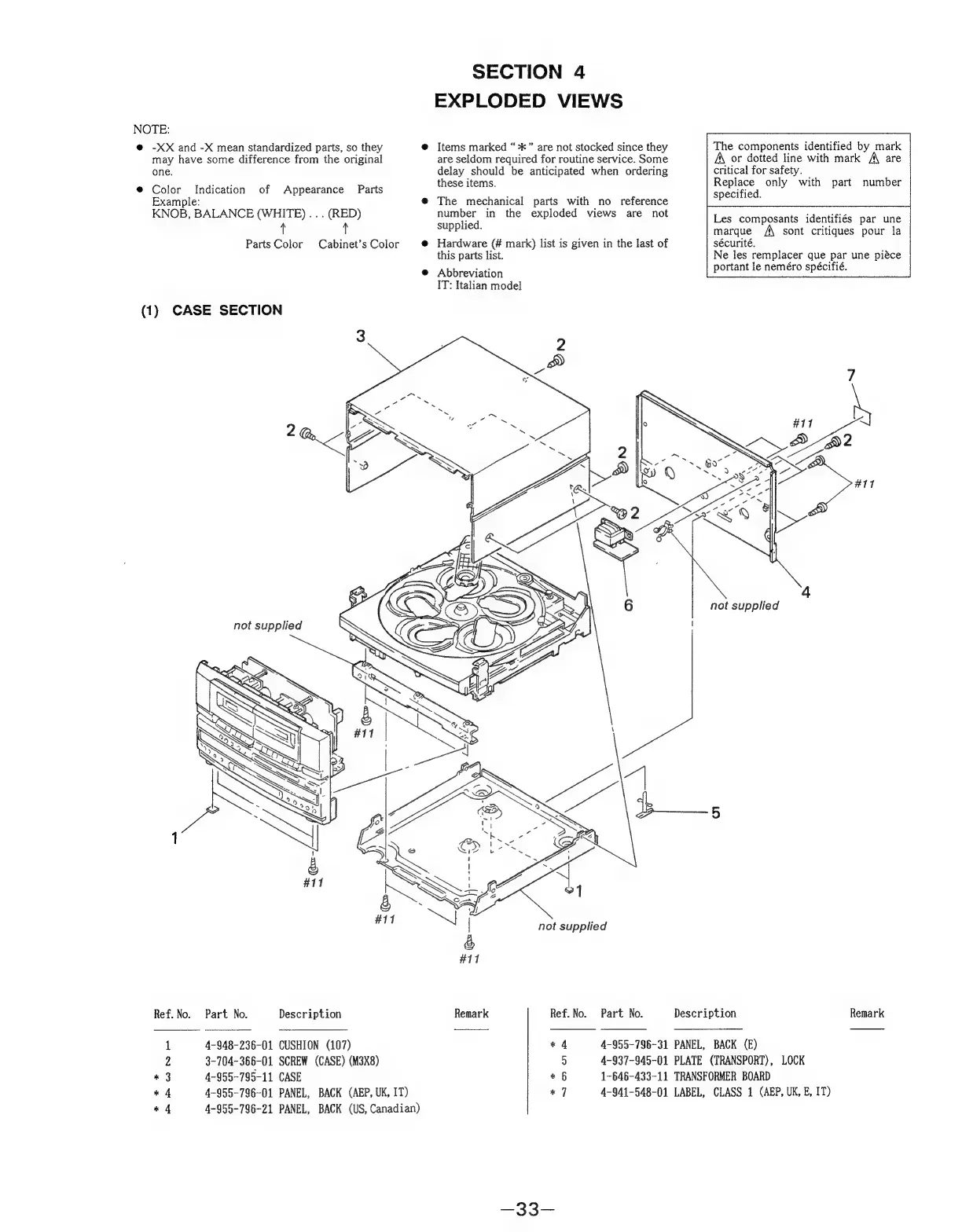

SECTION 4
EXPLODED VIEWS
NOTE:
@ -XX and -X mean standardized parts, so they @ Items marked “**” are not stocked since they The components identified by mark
may have some difference from the original are seldom required for routine service. Some A or dotted line with mark A\ are
one. delay should be anticipated when ordering critical for safety. —
® Color Indication of Appearance Parts these items. paerae only with part number
Example: @ The mechanical parts with no reference :
KNOB, BALANCE (WHITE)... (RED) ena in the exploded views are not Les composants identifiés par une
t * Ppsted marque \ sont critiques pour la
Parts Color Cabinet’s Color | @ Hardware (#4 mark) list is given in the last of sécurité.
this parts list. Ne les remplacer que par une piéce
o “Abbreviation portant le neméro spécifié.
IT: Italian model
(1) CASE SECTION
not supplied
not supplied
not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-948-236-01 CUSHION (107) * 4 4-955-796-31 PANEL, BACK (E)
2 3~-704-366-01 SCREW (CASE) (M3X8) 5 4-937-845-01 PLATE (TRANSPORT), LOCK
* 3 4-955-795-11 CASE * 6 1-646-433-11 TRANSFORMER BOARD
x 4 4-955-796-01 PANEL, BACK (AEP, UK, IT) * 7 4-941-548-01 LABEL, CLASS 1 (AEP, UK, E, IT)
* 4 4-955-796-21 PANEL, BACK (US, Canadian)
