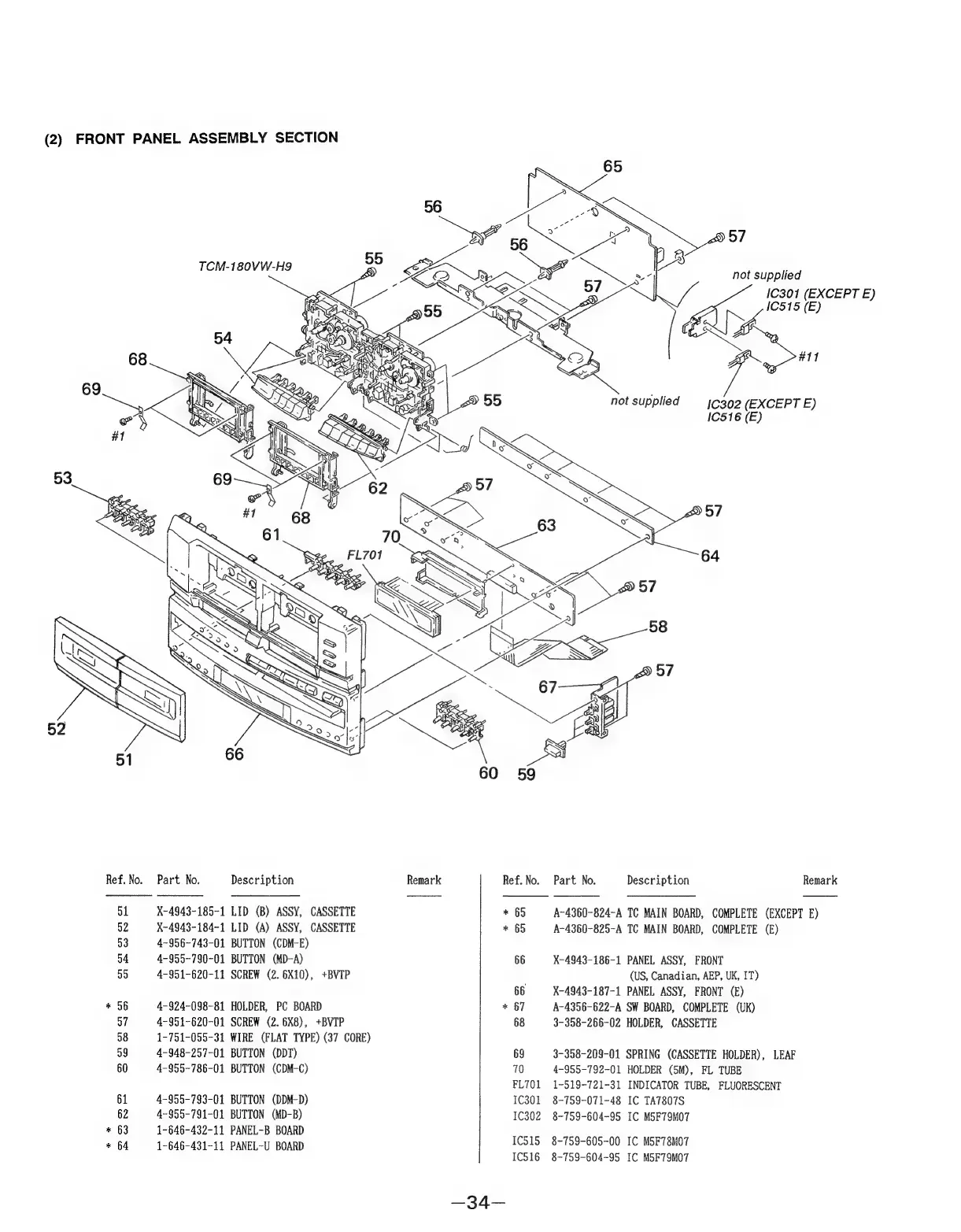

(2) FRONT PANEL ASSEMBLY SECTION
57
TCM-180VW-H9
1C301 (EXCEPT E)
C515 (E)
#11
IC302 (EXCEPT E)
1C516 (E)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4943-185-1 LID (B) ASSY, CASSETTE * 65 A-4360-824-A TC MAIN BOARD, COMPLETE (EXCEPT E)
52 X-4943-184-1 LID (A) ASSY, CASSETTE * 65 A-4360-825-A TC MAIN BOARD, COMPLETE (E)
53 4-956-743-01 BUTTON (CDM-E)
54 4-955-790-01 BUTTON (MD-A) 66 X-4943-186-1 PANEL ASSY, FRONT
55 4-951-620-11 SCREW (2. 6X10), +BVTP (US, Canadian, AEP, UK, IT)
66 X-4943-187-1 PANEL ASSY, FRONT (E)
* 56 4-924-098-81 HOLDER, PC BOARD * 67 A-4356-622-A SW BOARD, COMPLETE (UK)
57 4-951-620-01 SCREW (2. 6X8), +BVTP 68 3-358-266-02 HOLDER, CASSETTE
58 1-751-055-31 WIRE (FLAT TYPE) (37 CORE)
59 4-948-257-01 BUTTON (DDT) 69 3-358-209-01 SPRING (CASSETTE HOLDER), LEAF
60 4-§55-786-01 BUTTON (CDM-C) 70 4~955-792-01 HOLDER (5M), FL TUBE
FL701 1-519-721-31 INDICATOR TUBE, FLUORESCENT
61 4-955-793-01 BUTTON (DDM-D) 1C301 8-759-071-48 IC TA7807S
62 4~955-791-01 BUTTON (MD-B) IC302 8-759-604-95 IC MSF79M07
* 63 1-646-432-11 PANEL-B BOARD
« 64 1-646-431-11 PANEL-U BOARD IC515 8~759-605-00 IC M5F78M07
IC516 8-759-604-95 IC MSF79M07
