Sony HTC-D159 - Page 17

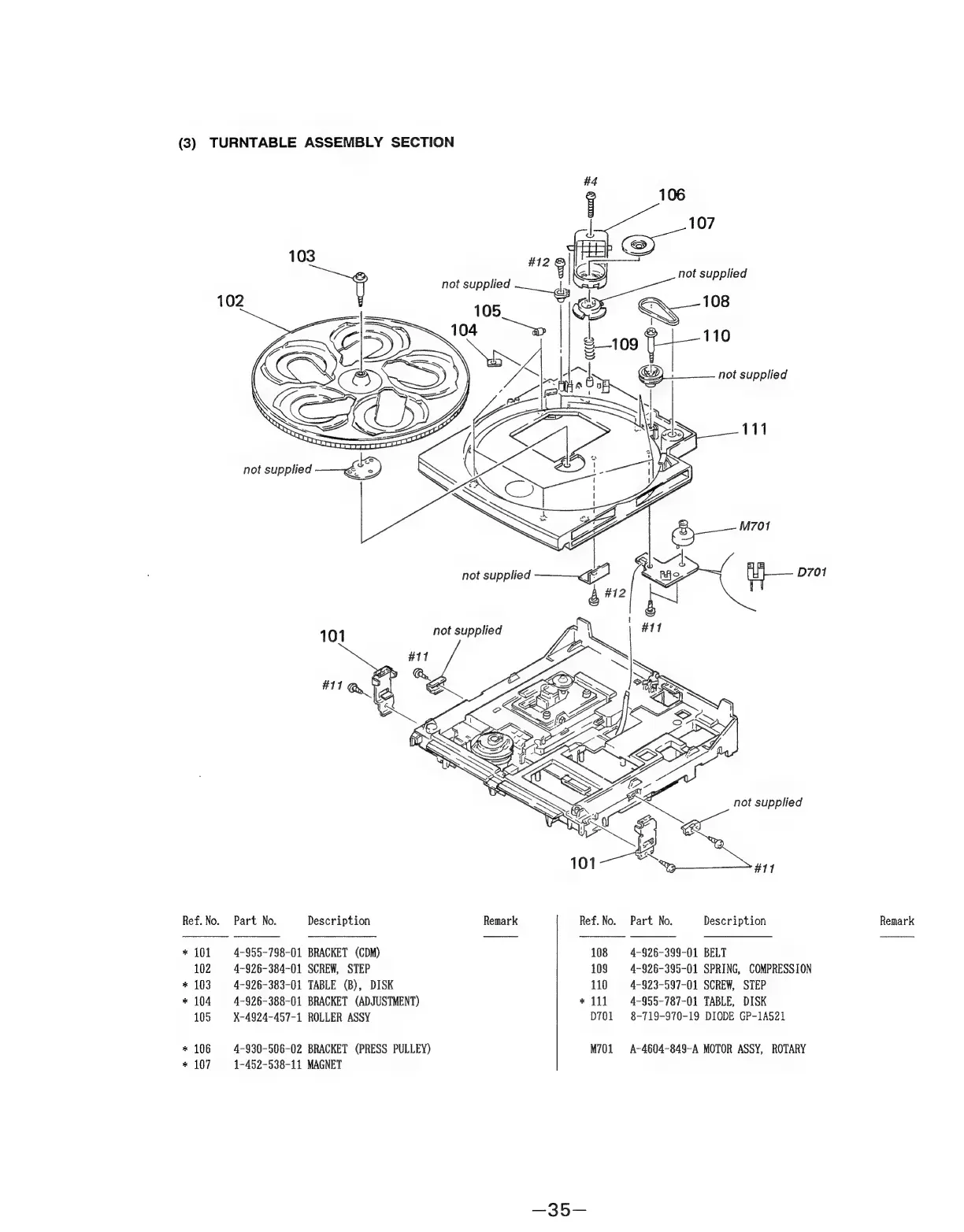

(3) TURNTABLE ASSEMBLY SECTION
107
not supplied
Oo
110
102
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 101 4-955-798-01 BRACKET (CDM) 108 4-§26-399-01 BELT
102 4-926-384-01 SCREW, STEP 109 4-926-395-01 SPRING, COMPRESSION
* 103 4-926-383-01 TABLE (B), DISK 110 4-923-597-01 SCREW, STEP
* 104 4-926-388-01 BRACKET (ADJUSTMENT) * 111 4-955-787-01 TABLE, DISK
105 X-4924-457-1 ROLLER ASSY D701 8-719-970-19 DIODE GP-1A52i
* 106 4-930-506-02 BRACKET (PRESS PULLEY) M701 A~-4604-849-A MOTOR ASSY, ROTARY
* 107 = 1-452-538-11 MAGNET
