Sony HTC-D159 - Page 18

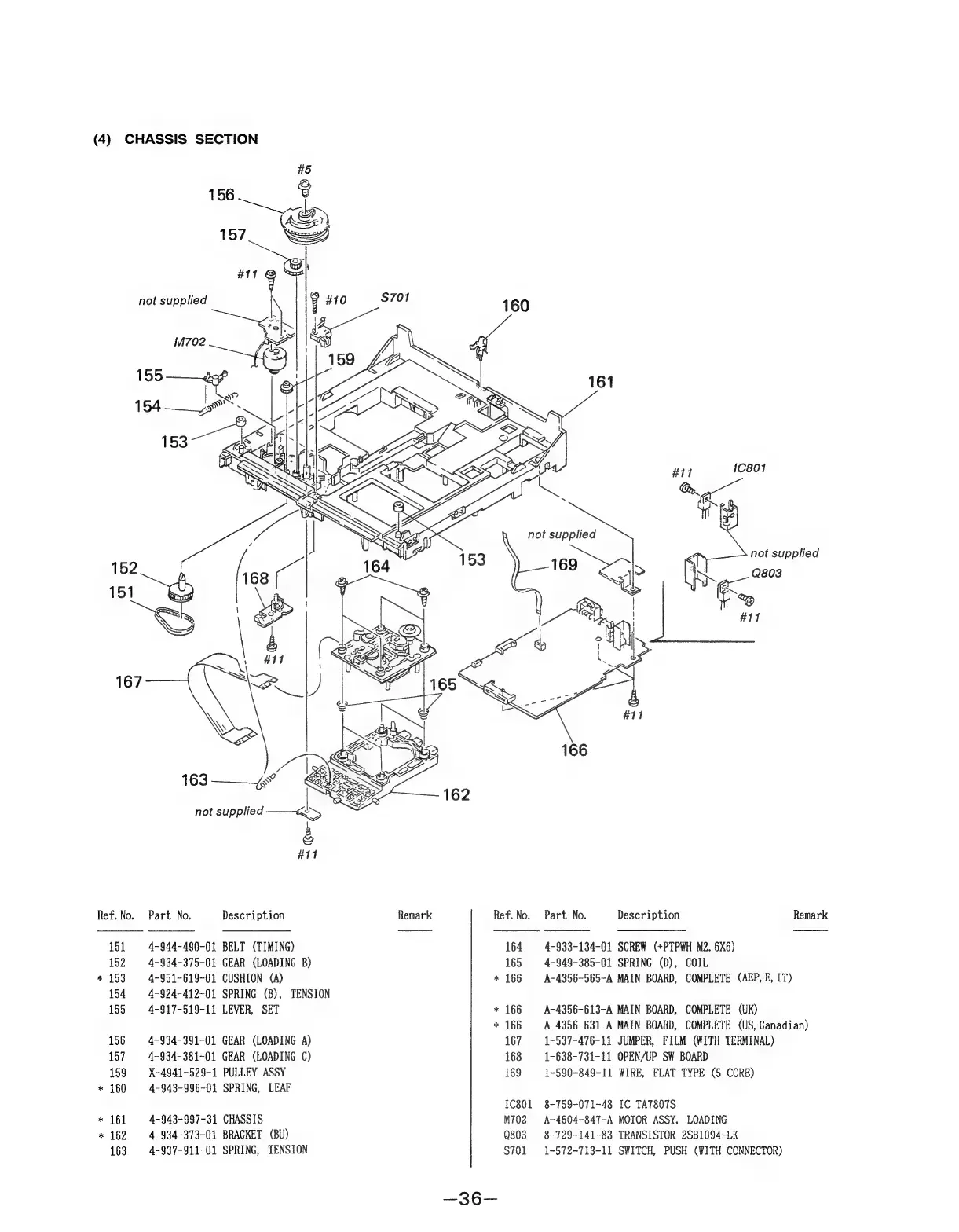

(4) CHASSIS SECTION
#5
156
AS)
157 Z
not supplied
M702
not supplied ——-<y
#11
Ref. No. Part No. Description Remark
151 4-944-490-01 BELT (TIMING)
152 4-934-375-01 GEAR (LOADING B)
* 153 4-951-619-01 CUSHION (A)
154 4-924-412-01 SPRING (B), TENSION
155 4-917-519-11 LEVER, SET
156 4~934-391-01 GEAR (LOADING A)
157 4~934-381-01 GEAR (LOADING C)
159 X-4941-529-1 PULLEY ASSY
* 160 4-943-996-01 SPRING, LEAF
* 161 4-943-997-31 CHASSIS
* 162 4-934-373-01 BRACKET (BU)
163 4-937-911-01 SPRING, TENSION
Ref. No.
164
165
* 166
* 166
* 166
—36—
167
168
169
1C801
M702
Q803
S701
Part No. Description Remark
4-933-134-01 SCREW (+PTPWH M2. 6X6)
4-949-385-01 SPRING (D), COIL
A-4356-565-A MAIN BOARD, COMPLETE (AEP, E, IT)
A-4356-613-A MAIN BOARD, COMPLETE (UK)
A-4356-631-A MAIN BOARD, COMPLETE (US, Canadian)
1-537-476-11 JUMPER, FILM (WITH TERMINAL)
1-638-731-11 OPEN/UP SW BOARD
1-590-849-11 WIRE, FLAT TYPE (5 CORE)
8-759-071-48 IC TA7807S
A-4604-847-A MOTOR ASSY, LOADING
8-729-141-83 TRANSISTOR 2SB1094-LK
1-572-713-11 SWITCH, PUSH (WITH CONNECTOR)
