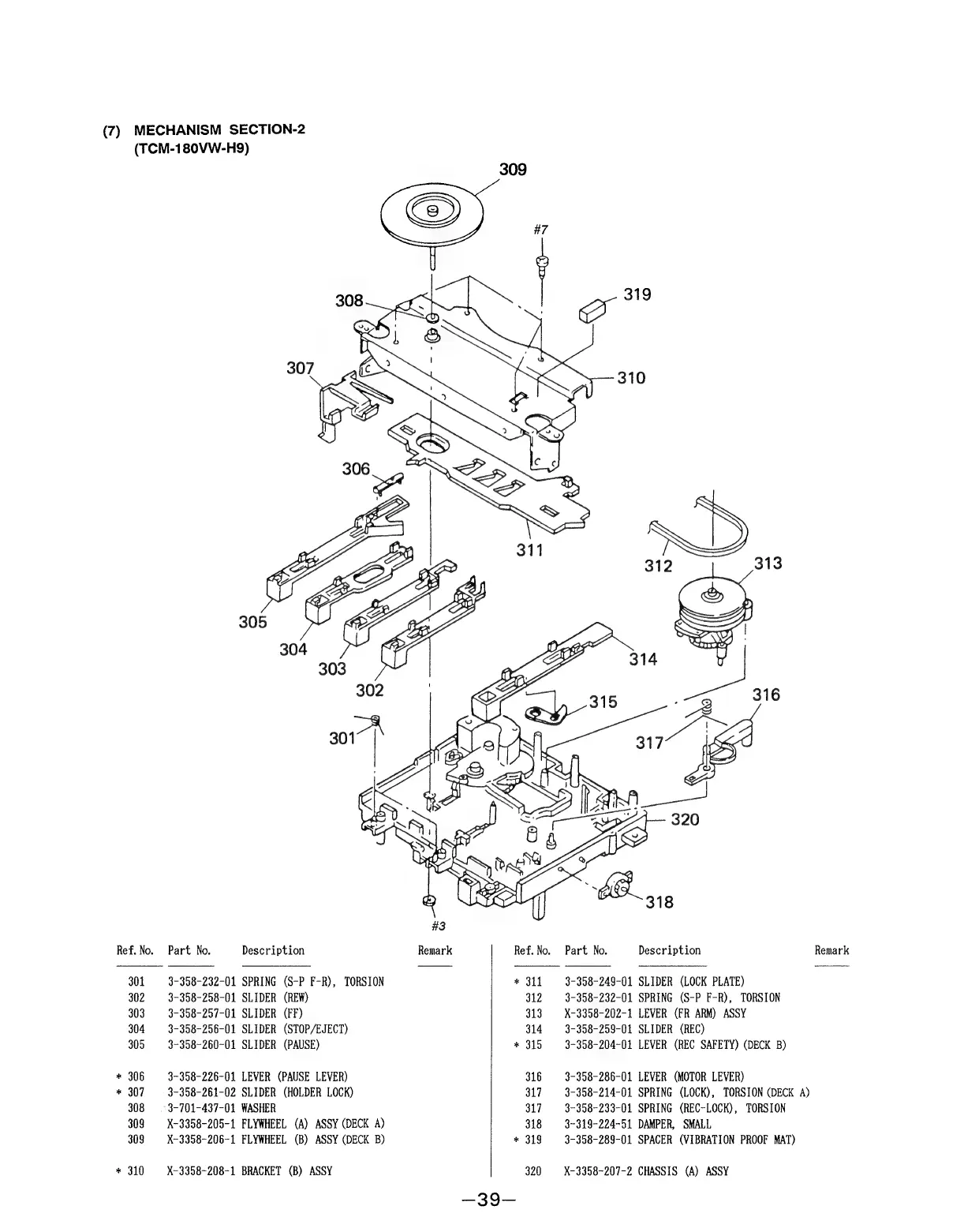

(7) MECHANISM SECTION-2
(TCM-180VW-H9)
Ref. No. Part No. Description
301 3-358-232-01 SPRING (S-P F-R), TORSION
302 3-358-258-01 SLIDER (REW)
303 3-358-257-01 SLIDER (FF)
304 3-358-256-01 SLIDER (STOP/EJECT)
305 3-358-260-01 SLIDER (PAUSE)
* 306 3-358-226-01 LEVER (PAUSE LEVER)
307 — 3-358-261-02 SLIDER (HOLDER LOCK)
308 = 3-701-437-01 WASHER
309 X-3358-205-1 FLYWHEEL (A) ASSY (DECK A)
309 X-3358-206-1 FLYWHEEL (B) ASSY (DECK B)
*
* 310 | X-3358-208-1 BRACKET (B) ASSY
Ref. No.
311
312
313
314
315
316
317
317
318
319
320
318
Part No. Description Remark
3-358-249-01 SLIDER (LOCK PLATE)
3-358-232-01 SPRING (S-P F-R), TORSION
X-3358-202-1 LEVER (FR ARM) ASSY
3-358-259-01 SLIDER (REC)
3-358-204-01 LEVER (REC SAFETY) (DECK B)
3-358-286-01 LEVER (MOTOR LEVER)
3-358-214-01 SPRING (LOCK), TORSION (DECK A)
3-358-233-01 SPRING (REC-LOCK), TORSION
3-319-224-51 DAMPER, SMALL
3-358-289-01 SPACER (VIBRATION PROOF MAT)
X-3358-207-2 CHASSIS (A) ASSY
