Sony HTC-D159 - Page 20

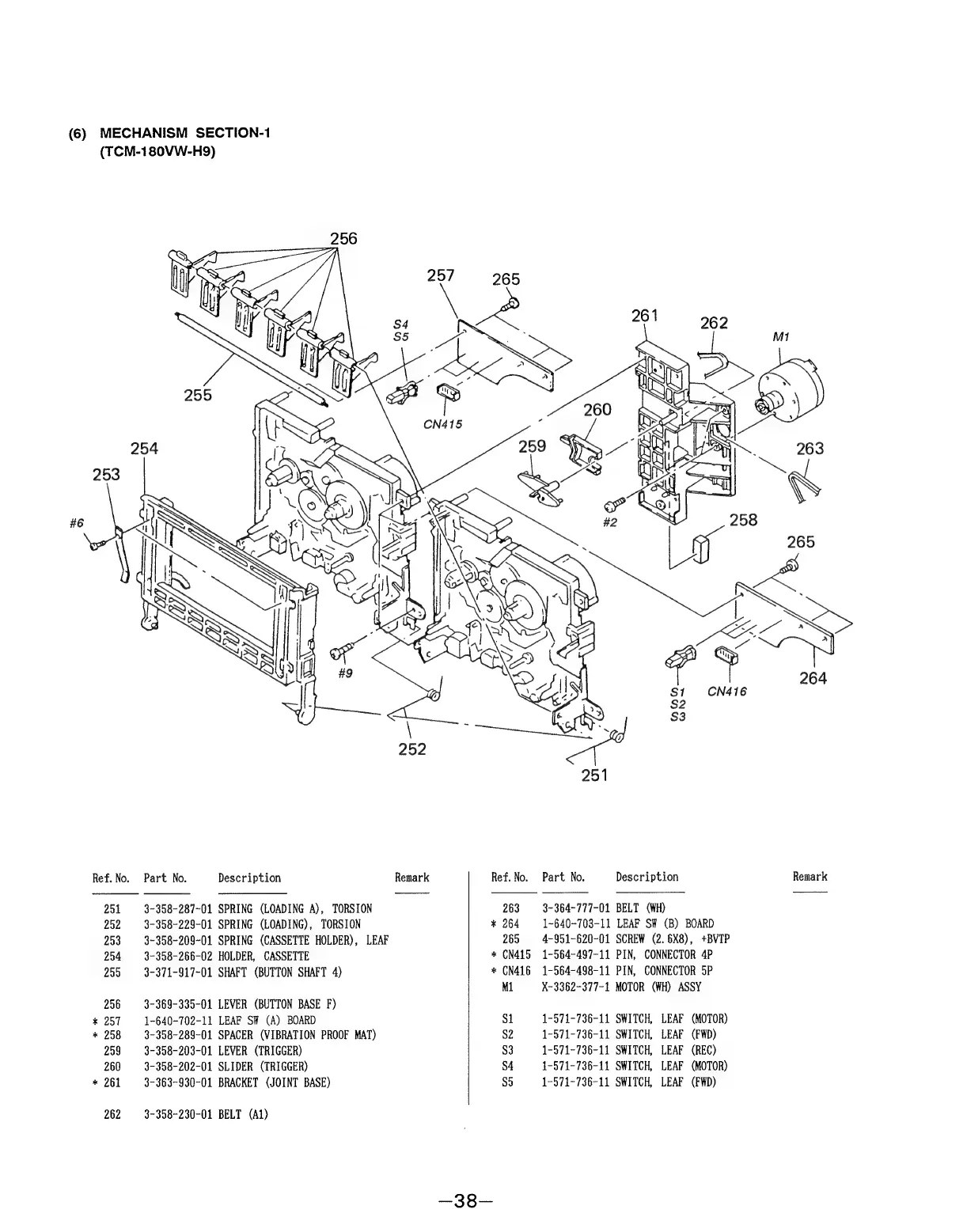

(6) MECHANISM SECTION-1
(TCM-180VW-H9)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 3~358-287-01 SPRING (LOADING A), TORSION 263 3-364-777-01 BELT (WH)
252 3-358-2259-01 SPRING (LOADING), TORSION * 264 1-640-703-11 LEAF S¥ (B) BOARD
253 3-358-209-01 SPRING (CASSETTE HOLDER), LEAF 265 4-951-620-01 SCREW (2. 6X8), +BVIP
254 3-358-266-02 HOLDER, CASSETTE * (N415 1-564-497-11 PIN, CONNECTOR 4P
255 3-371-917-01 SHAFT (BUTTON SHAFT 4) * (N416 1-564-498-11 PIN, CONNECTOR 5P
M1 X-3362-377-1 MOTOR (WH) ASSY
256 3-369-335-01 LEVER (BUTTON BASE F)
* 257 1-640-702-11 LEAF SW¥ (A) BOARD 51 1-571-736-11 SWITCH, LEAF (MOTOR)
* 258 3-358-289-01 SPACER (VIBRATION PROOF MAT) 82 1-571-736-11 SWITCH, LEAF (FWD)
259 3-358-203-01 LEVER (TRIGGER) $3 1-571-736-11 SWITCH, LEAF (REC)
260 3-358-202-01 SLIDER (TRIGGER) $4 1-571-736-11 SWITCH, LEAF (MOTOR)
* 261 3-363-930-01 BRACKET (JOINT BASE) 55 1-571-736-11 SWITCH, LEAF (FWD)
262 3-358-230-01 BELT (A1)
