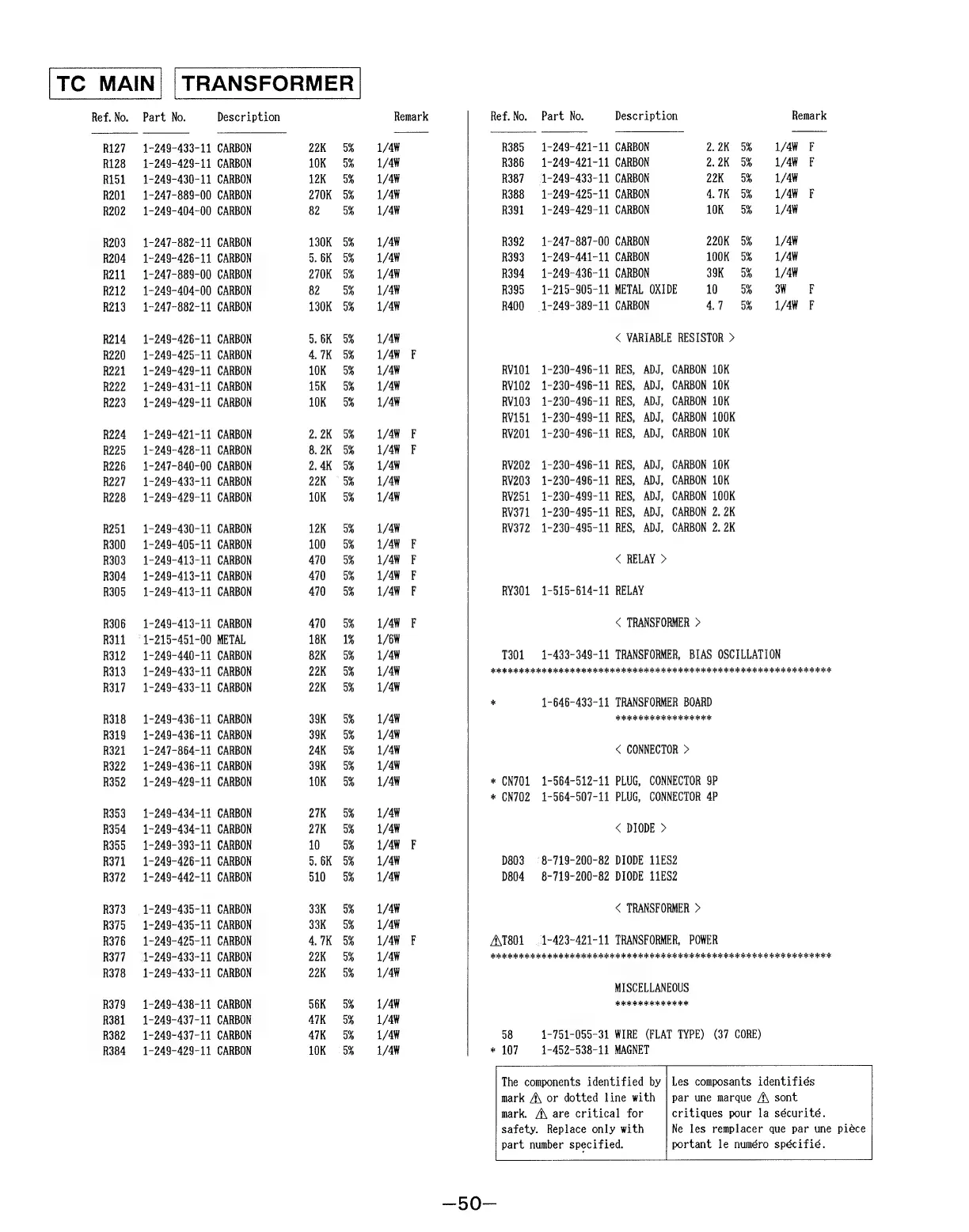

Sony HTC-D159 - Page 32

TRANSFORMER
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R127. = 1-249-433-11 CARBON 22K 5% 1/4W R385 1-249-421-11 CARBON 2.2K 5% 1/4W F
R128 1-249-429-11 CARBON 10K 5% 1/4W R386 1-249-421-11 CARBON 2.2K 5% 1/4W¥ F
Ri51 1-249-430-11 CARBON 12K 5% 1/4W R387. =: 1-249-433-11 CARBON 22K 5% 1/4W
R201 1-247-889-00 CARBON 270K 5% 1/44 R388 1-249-425-11 CARBON 4.7K 5% 1/44 F
R202 1-249-404-00 CARBON 82 5h 1/4W R391 1-249-429-11 CARBON 10K = 5% 1/4W
R203 1-247-882-11 CARBON 130K 5% 1/44 R392 1-247-887-00 CARBON 220K 5% 1/4W
R204 1~-249-426-11 CARBON 5.6K 5% 1/44 R393 1-249-441-11 CARBON 100K 5% 1/4W
R211 1-247-889-00 CARBON 270K 5% 1/4¥ R394 1-249-436-11 CARBON 39K = 5% 1/4W
R212 1-248-404-00 CARBON 82 Hy 4 1/4W R395 1-215-905-11 METAL OXIDE 10 5% 3H F
R213. 1-247-882-11 CARBON 130K 5% 1/4W R400 = 1-249-389-11 CARBON 4.7 5% 1/4W F
R214 1-249-426-11 CARBON 5.6K 5% 1/4W < VARIABLE RESISTOR >
R220 1-249-425-11 CARBON 4.7K 5% 1/4W F
R221 1-249-429-11 CARBON 10K 5% 1/4W RV101 1-230-496-11 RES, ADJ, CARBON 10K
R222 1-249-431-11 CARBON 15K = 5% 1/4W RV102 1-230-496-11 RES, ADJ, CARBON 10K
R223 1-249-429-11 CARBON 10K 5% 1/44 RV103 1-230-496-11 RES, ADJ, CARBON 10K
RV151 1-230-498-11 RES, ADJ, CARBON 100K
R224 1-249-421-11 CARBON 2.2K 5% 1/4W F RV201 1-230-496-11 RES, ADJ, CARBON 10K
R225 1-249-428-11 CARBON 8.2K 5% 1/4W F
R226 1-247-840-00 CARBON 2.4K 5% 1/4W RV202 1-230-496-11 RES, ADJ, CARBON 10K
R227 1-249-433-11 CARBON 22K = % 1/4¥ RV203 1-230-496-11 RES, ADJ, CARBON 10K
R228 1-249-429-11 CARBON 10K 5% 1/4¥ RV251 1-230-499-11 RES, ADJ, CARBON 100K
RV371 1-230-495-11 RES, ADJ, CARBON 2. 2K
R251 1-249-430-11 CARBON 12K bh 1/4¥ RV372 1-230-495-11 RES, ADJ, CARBON 2. 2K
R300 1-249-405-11 CARBON 100 5% 1/4W F
R303 1-249-413-11 CARBON 470 5% 1/4W F < RELAY >
R304 1-249-413-11 CARBON 470 5% 1/4W F
R305 1-249-413-11 CARBON 470 5% 1/4W F RY301 1-515-614-11 RELAY
R306 1-249-413-11 CARBON 470 = 5% 1/4¥ F < TRANSFORMER >
R311 = 1-215-451-00 METAL 18K 1% 1/6W
R312 1-249-440-11 CARBON 82K 5% 1/4W T301 1-433-349-11 TRANSFORMER, BIAS OSCILLATION
R313 1-249-433-11 CARBON 22K «645% 1/4W JOOS OIG ISO IOS oI mob folol a I ICCC ICO IO I IO IOI KK aI Iz fk
R317: 1-249-433-11 CARBON 22K = oo% 1/4W
* 1-646-433-11 TRANSFORMER BOARD
R318 1-249-436-11 CARBON 39K = o% 1/4W Foor IIA IK
R319 1-249-436-11 CARBON 39K 5% 1/4W
R321 1-247-864-11 CARBON 24K 5% 1/AW < CONNECTOR >
R322 1-249-436-11 CARBON 39K 5% 1/4W
R352 14-249-429-11 CARBON 10K = 5% 1/4W * (N701 1-564-512-11 PLUG, CONNECTOR 9P
* (N702 1-564-507-1411 PLUG, CONNECTOR 4P
R353 1-249-434-11 CARBON 27K oo 1/4W
R354 1-249-434-11 CARBON 27K 5% 1/4W < DIODE >
R355 1-249-393-11 CARBON 10 om 1/4W F
R371 1-249~426-11 CARBON 5.6K 5% 1/4¥ D803 = 8-719-200-82 DIODE 11ES2
R372 1-249-442-11 CARBON 310 5 1/4W D804 8-719-200-82 DIODE 11ES2
R373 = 1-249-435-11 CARBON 33K 5% 1/4¥ < TRANSFORMER >
R375 = 1-249-435-11 CARBON 33K o% 1/4W
R376 1-249-425-11 CARBON 4.7K 5% 1/4W F A\T801 =: 1-423-421-11 TRANSFORMER, POWER
R377 =: 1-249-433-11 CARBON 22K = 45% 1/4W Jeol io oiioloioioidioiolol i itototolojoi i iotolol i iciototoioi i itoioiol acid fotogak dog tok
R378 1-249-433-11 CARBON 22K 5% 1/4W
MISCELLANEOUS
R379 = 1-249-438-11 CARBON 56K 5% 1/4W elo oioioioiiioi took
R381 1-249-437-11 CARBON ATK 5% 1/4W
R382 1-249-437-11 CARBON 471K 5% 1/4W 58 1-751-055-31 WIRE (FLAT TYPE) (37 CORE)
R384 1-249-429-11 CARBON 10K = 5% 1/4W * 107 1-452-538-1141 MAGNET
