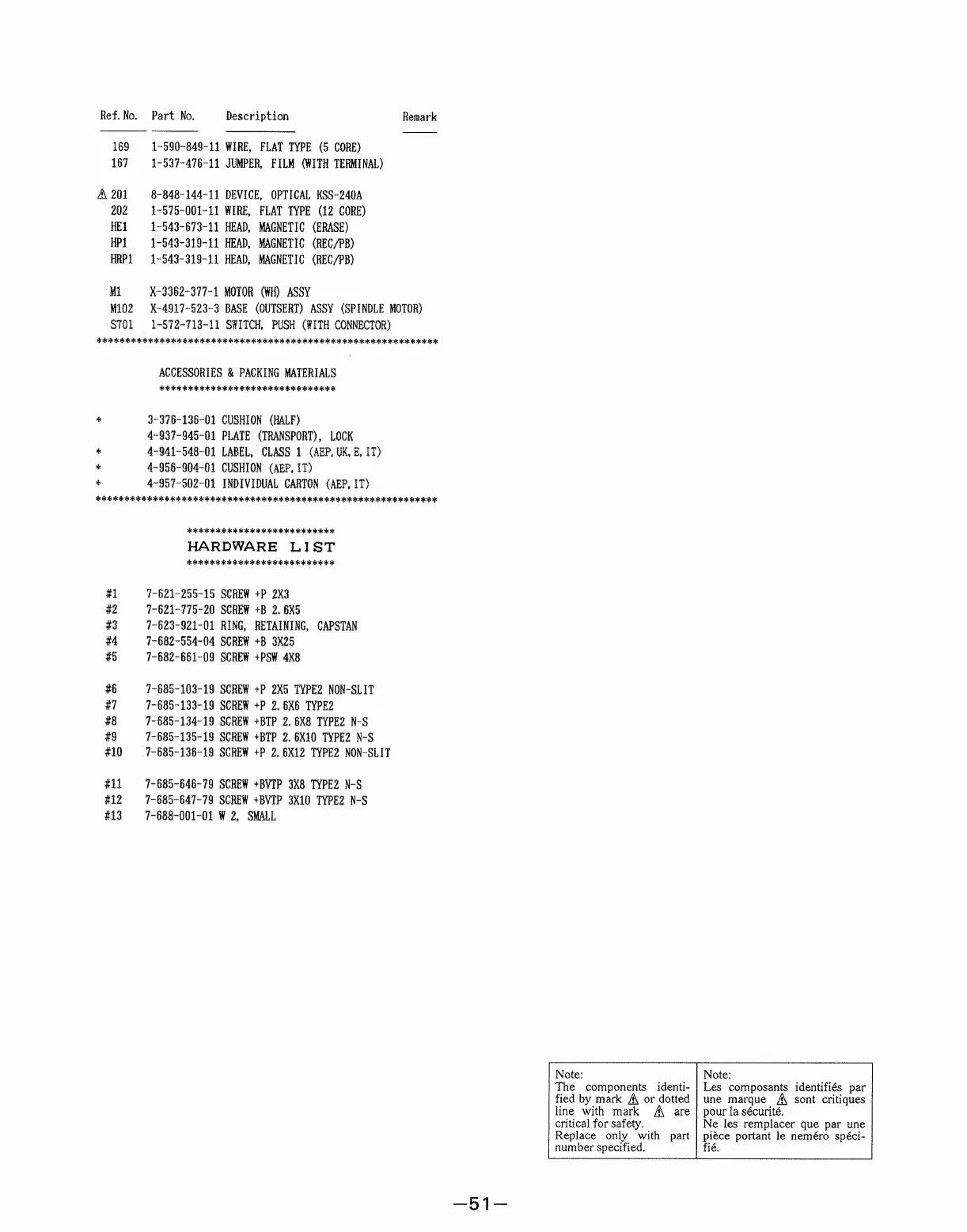

Sony HTC-D159 - Page 33

Ref. No. Part No. Description Remark
169 1-590-849-11 WIRE, FLAT TYPE (5 CORE)
167 1-537-476-11 JUMPER, FILM (WITH TERMINAL)
A201 8-848-144-11 DEVICE, OPTICAL KSS-240A
202 =1-575-001-11 WIRE, FLAT TYPE (12 CORE)
HE1 = 1~-543-673-11 HEAD, MAGNETIC (ERASE)
HP1 1-543-319-11 HEAD, MAGNETIC (REC/PB)
HRP1 1-543-319-11 HEAD, MAGNETIC (REC/PB)
M1 X-3362-377-1 MOTOR (WH) ASSY
M102 X-4917-523-3 BASE (QUTSERT) ASSY (SPINDLE MOTOR)
S701 | 1-572-713-11 SWITCH, PUSH (WITH CONNECTOR)
2 OIoIOI i jofok iokok doioiotoioioioioioioiototokoioioiototoioioiokaiototokioiciciokokdoioiofoiok ok gotoiok
ACCESSORIES & PACKING MATERIALS
BO oo ok ok doiototoioioioiotokotokokokokoktotok
* 3-376-136-01 CUSHION (HALF)
4-937-945-01 PLATE (TRANSPORT), LOCK
* 4-9$41-548-01 LABEL, CLASS 1 (AEP, UK, E, IT)
* 4-956-904-01 CUSHION (AEP, IT)
* 4-957-502-01 INDIVIDUAL CARTON (AEP, IT)
FASO SOG I IO II OOO OI OR IO IO IO IO EO IO IFO FOR AOR IO BOK
EO ok kokototokokotkototaiok dekokoiokok
HARDWARE LIST
2 OI foi oi oi ciot ik dokok totokdok ic
#1 7-621-255-15 SCREW +P 2X3
#2 7-621-775-20 SCREW +B 2. 6X5
#3 7-623-921-01 RING, RETAINING, CAPSTAN
#4 7-682-554-04 SCREW +B 3X25
#5 7-682-661-09 SCREW +PSW 4X8
#6 7-685-103-19 SCREW +P 2X5 TYPE2 NON-SLIT
#7 7-685-133-19 SCREW +P 2. 6X6 TYPE2
#8 7-685-134-19 SCREW +BTIP 2. 6X8 TYPE2 N-S
#9 7-685-135-19 SCREW +BTP 2. 6X10 TYPE2 N-S
#10 = 7-685~-136-19 SCREW +P 2. 6X12 TYPE2 NON-SLIT
#11 = 7-685-646-79 SCREW +BVIP 3X8 TYPE2 N-S
#12 = 7-685-647-79 SCREW +BVIP 3X10 TYPE2 N-S
#13 = 7-688-001-01 W 2, SMALL
Note:
The components identi-
fied by mark A\ or dotted
line with mark A\ are
critical for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque A\ sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le neméro spéci-
fié.
