Sony HTC-D259 - Page 19

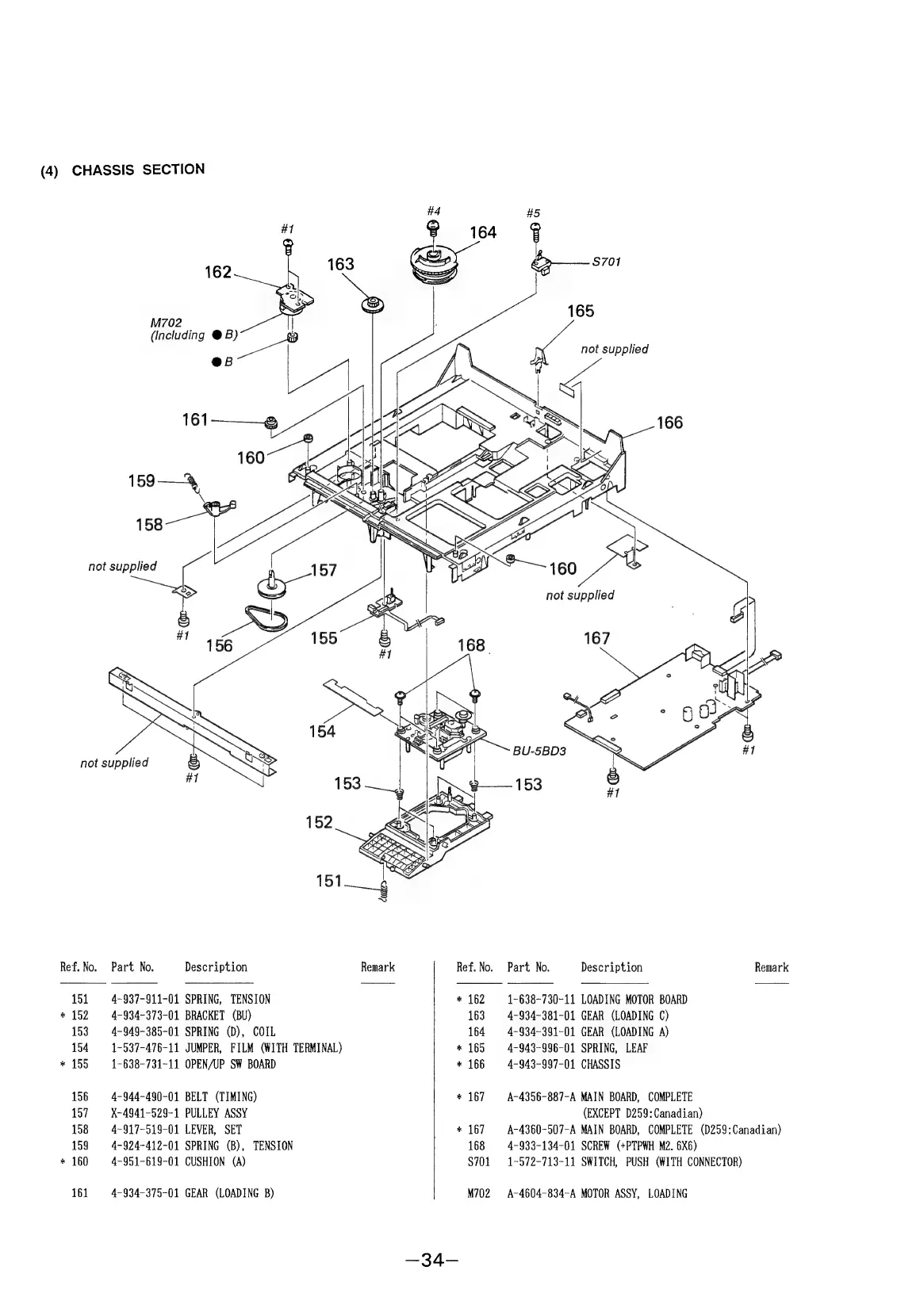

(4) CHASSIS SECTION
Ref. No.
151
* 152
153
154
* 155
156
157
158
159
* 160
161
162
M702
(Including @B)
@B
Part No. Description Remark
4-937-911-01 SPRING, TENSION
4~934-373-01 BRACKET (BU)
4-949-385-01 SPRING (D), COIL
1-537-476-11 JUMPER, FILM (WITH TERMINAL)
1-638-731-11 OPEN/UP SW BOARD
4-944-490-01 BELT (TIMING)
X-4941-529-1 PULLEY ASSY
4-917-519-01 LEVER, SET
4-924-412-01 SPRING (B), TENSION
4-951-619-01 CUSHION (A)
4-934-375-01 GEAR (LOADING B)
#4
164
Ref. No.
* 162
163
164
* 165
* 166
* 167
* 167
168
$701
M702
a BU-5BD3
#5
—
165
not supplied
not supplied
167
Part No. Description Remark
1-638-730-11 LOADING MOTOR BOARD
4-934-381-01 GEAR (LOADING C)
4-934-391-01 GEAR (LOADING A)
4-943-996-01 SPRING, LEAF
4-943-997-01 CHASSIS
A-4356-887-A MAIN BOARD, COMPLETE
(EXCEPT D259: Canadian)
A-4360-507-A MAIN BOARD, COMPLETE (D259:Canadian)
4-933-134-01 SCREW (+PTPWH M2. 6X6)
1-572-713-11 SWITCH, PUSH (WITH CONNECTOR)
A-4604-834-A MOTOR ASSY, LOADING
