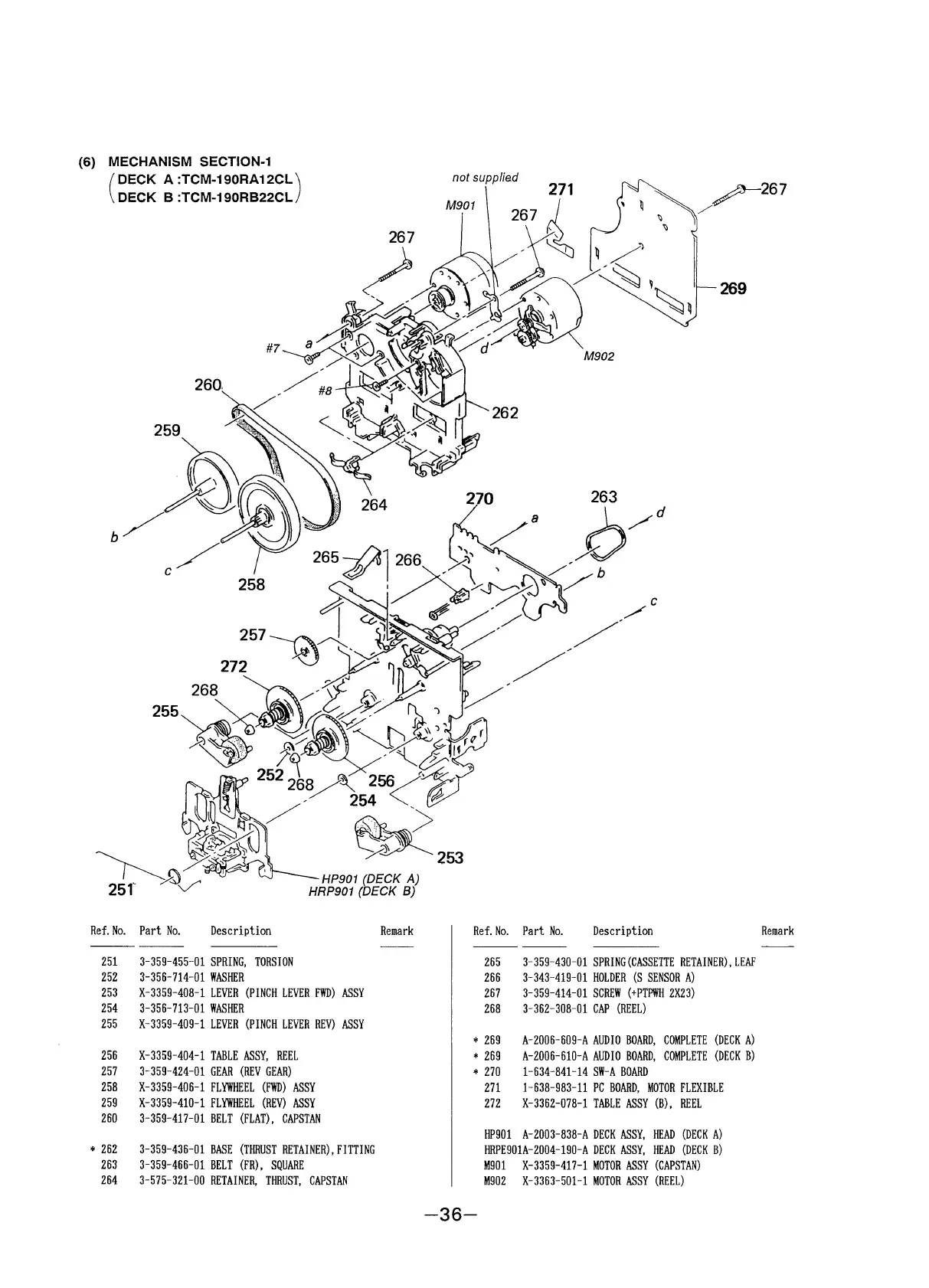

(6) MECHANISM SECTION-1
ea A :TCM-190RA1 er)
DECK B :TCM-190RB22CL
Ref. No.
251
292
253
254
299
256
297
298
299
260
* 262
263
264
Part No. Description Remark
3-359-455-01 SPRING, TORSION
3-356-714-01 WASHER
X-3359-408-1 LEVER (PINCH LEVER FWD) ASSY
3-356-713-01 WASHER
X-3359-409-1 LEVER (PINCH LEVER REV) ASSY
X-3359-404-1 TABLE ASSY, REEL
3-359-424-01 GEAR (REV GEAR)
X-3359-406-1 FLYWHEEL (FWD) ASSY
X-3359-410-1 FLYWHEEL (REV) ASSY
3-359-417-01 BELT (FLAT), CAPSTAN
3-359-436-01 BASE (THRUST RETAINER), FITTING
3-359-466-01 BELT (FR), SQUARE
3-575-321-00 RETAINER, THRUST, CAPSTAN
HP901 (DECK A)
HRP901 (DECK B)
Ref. No.
not supplied
265
266
267
268
* 269
* 269
* 270
—36—
271
272
HPS01
Part No. Description Remark
3-359-430-01 SPRING (CASSETTE RETAINER), LEAF
3-343-419-01 HOLDER (S SENSOR A)
3-359-414-01 SCREW (+PTPWH 2X23)
3-362-308-01 CAP (REEL)
A-2006-609-A AUDIO BOARD, COMPLETE (DECK A)
A-2006-610-A AUDIO BOARD, COMPLETE (DECK B)
1-634-841-14 SW-A BOARD
1-638-983-11 PC BOARD, MOTOR FLEXIBLE
X-3362-078-1 TABLE ASSY (B), REEL
A-2003-838-A DECK ASSY, HEAD (DECK A)
HRPE901A-2004-190-A DECK ASSY, HEAD (DECK B)
M901
M902
X-3359-417-1 MOTOR ASSY (CAPSTAN)
X-3363-501-1 MOTOR ASSY (REEL)
