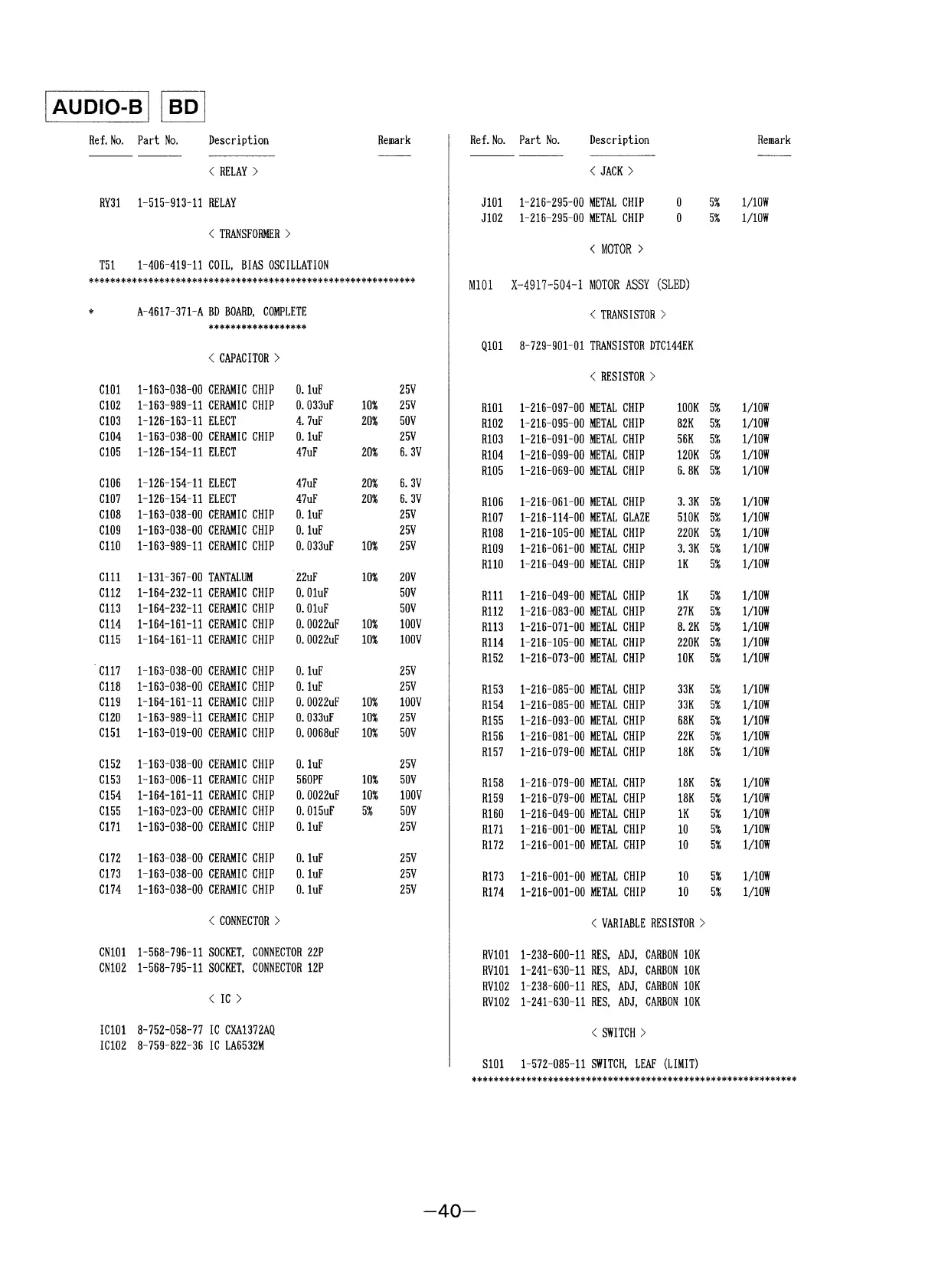

AUDIO-B) | BD]
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< RELAY > < JACK >
RY31- 1-515-913-11 RELAY J101 1-216-295-00 METAL CHIP 0 5% 1/10W
Ji02 1-216-295-00 METAL CHIP 0 o% = «1 /10W
< TRANSFORMER >
< MOTOR >
T51 1-406-419-11 COIL, BIAS OSCILLATION
oo ioioioioiioioiok dokigioiiok ddloiok ko ioloiok dokioi goioiotokok tokokoiodokdok tek M101 X-4917-504-1 MOTOR ASSY (SLED)
* A-4617-371-A BD BOARD, COMPLETE < TRANSISTOR >
FESO IA IO Rp OR
Qi01 8-729-901-01 TRANSISTOR DTC144EK
< CAPACITOR >
< RESISTOR >
C101 1-163-038-00 CERAMIC CHIP 0. tu 25V
C102 =©1-163-989-11 CERAMIC CHIP (0. 033uF 10% = 25V Ri01 1-216-G97-00 METAL CHIP 100K 5% 1/10W
103 1-126-163-11 ELECT 4. Tuk 20% = SOV R102 1-216-095-00 METAL CHIP 82K 5% 1/10W
C104 1-163-038-00 CERAMIC CHIP = 0. luF 20V R103 1-216-091-00 METAL CHIP 56K 5% = 1/10
C105 1-126-154-11 ELECT 47uF 20% 6. BV R104 1-216-099-00 METAL CHIP 120K 5% 1/10W
R105 1-216-069-00 METAL CHIP 6.8K 5% 1/10W
C106 1-126-154-11 ELECT ATuF 20% 6.3
C107 1-126-154-11 ELECT 47uF 206 6. BV R106 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
C108 — 1-163-038-00 CERAMIC CHIP — 0. tu 25V R107 1-216-114-00 METAL GLAZE 510K 5% 1/10
C103 1-163-038-00 CERAMIC CHIP = 0. luF 25V R108 1-216-105-00 METAL CHIP 220K 5% 1/10W
C110 =©1-163-989-11 CERAMIC CHIP 0.033uF 10% 8 25V Ri09 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
. R110 1-216-049-00 METAL CHIP 1K 5% = 1/10W
C111 1-131-367-00 TANTALUM 22uF 10% 20V
C112 1-164-232-11 CERAMIC CHIP — 0. OluF SOV R111 1-216-049-00 METAL CHIP 1K 5% = 1/10W
C113 1-164-232-11 CERAMIC CHIP = 0. OluF o0V R112 1-216-083-00 METAL CHIP 27K 5% = 1/10W
C114 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V R113 1-216-071-00 METAL CHIP 8.2K 5% 1/108
C115 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V R114 1-216-105-00 METAL CHIP 220K 5% 1/10
. R152 1-216-073-00 METAL CHIP 10K 5% = 1/10W
C117 1-163-038-00 CERAMIC CHIP 0. 1uF 25V
C118 1-163-038-00 CERAMIC CHIP = 0. luF ZV R153 1-216-085-00 METAL CHIP 33K 5% 1 /10W
C119 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V R154. 1-216-085-00 METAL CHIP 33K 5% 1/10W
C120 = 1-163-989-11 CERAMIC CHIP 0. 033uF 10% 25V R155 1-216-093-00 METAL CHIP 68K 5% 1/10
C151 1-163-019-00 CERAMIC CHIP 0. 0068uF 10% 50V R156 1-216-081-00 METAL CHIP 29K 5% 1/10W
R157 1-216-079-00 METAL CHIP 18K 5% 1/10W
C152 1-163-038-00 CERAMIC CHIP 0. tu 25V
C153 1-163-006-11 CERAMIC CHIP 560PF 10% 50V R158 1-216-079-00 METAL CHIP 18K 5% 1/108
C154 = 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V R159 1-216-079-00 METAL CHIP 18K 5% 1/10W
C155 1-163-023-00 CERAMIC CHIP 0. 015uF a 30V R160 1-216-049-00 METAL CHIP 1K 5% 1/108
C171 1-163-038-00 CERAMIC CHIP = 0. luF 25V R171 1-216-001-00 METAL CHIP 10 5% 1/10W
R172 1-216-001-00 METAL CHIP 10 5% = 1/10W
C172 1-163-038-00 CERAMIC CHIP 0. 1uF 25V
C173 1-163-038-00 CERAMIC CHIP = 0. luF 20V R173 1-216-001-00 METAL CHIP 10 5% 1/10W
C174 1-163-038-00 CERAMIC CHIP = 0. luF 25V R174 1-216-001-00 METAL CHIP 10 5% 1/10W
< CONNECTOR > < VARIABLE RESISTOR >
CN101 1-568-796-11 SOCKET, CONNECTOR 22P RV101 1-238-600-11 RES, ADJ, CARBON 10K
CN102 1-568-795-11 SOCKET, CONNECTOR 12P RV101 1-241-630-11 RES, ADJ, CARBON 10K
RV102 1-238-600-11 RES, ADJ, CARBON 10K
< 1¢ > RV102 1-241-630-11 RES, ADJ, CARBON 10K
1C101 8-752-058-77 IC CXA1372AQ < SWITCH >
1€102 8-759-822-36 I¢ LA6532M
$101 1-572-085-11 SWITCH, LEAF (LIMIT)
FIG III IC OI II II IOI I IO IO I IIA TOR AOR AOR OR AOR FOR
—A0—
