POWER SUPPLY DURING SERVICING
• As this set has not own power supply, it does not operate inde-
pendently. Therefore, during servicing, connect it to the Pre-
Main amplifier and Tuner Unit (STR-NX1/NX3) of MHC-NX1/
NX3AV.

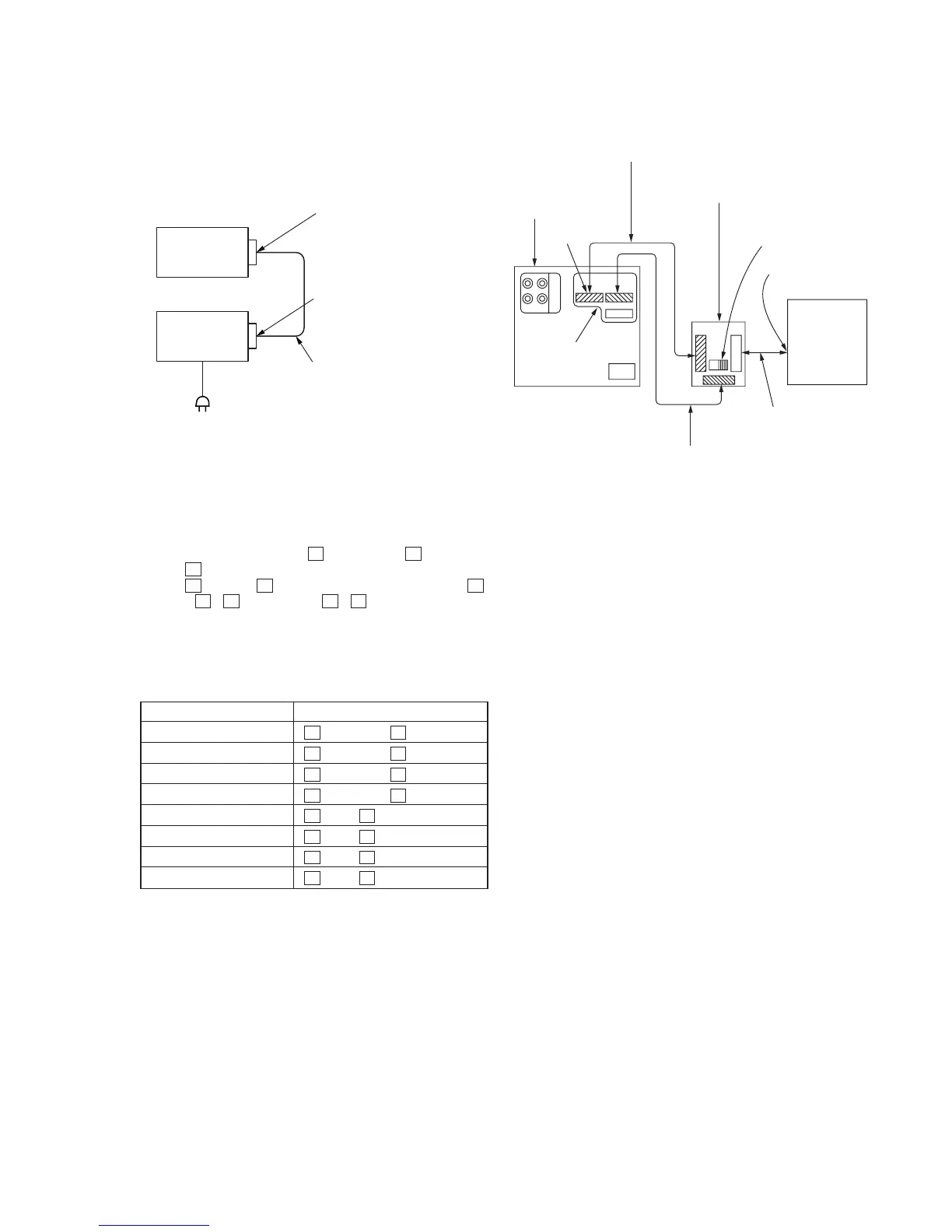

If STR-NX1/NX3 are not available, use the Power Feed Jig (PFJ-
1) and Relay Connector Jig.
In this case, after turn on the POWER switch on the Power Feed
Jig, supply power with the following methods.
Procedure:
1. Press three buttons of s (DECK B), A (DISC 1),
and s (CD) simultaneously.
2. The G (CD) and S (CD) LEDs blink, and then pressing G
(CD), G / g (DECK A), or G / g (DECK B) button can
make each play possible.
3. Also, the other functions are enabled by pressing two buttons
simultaneously.
A combination of respective functions and buttons is as fol-
lows.
function button
CD AMS – s (DECK A), S (CD)
AMS + s (DECK A), s (CD)
FR s (DECK B), S (CD)
FF s (DECK B), s (CD)
Deck-A REW/AMS – s (CD), g (DECK A)
FF/AMS + s (CD), G (DECK A)
Deck-B REW/AMS – s (CD), g (DECK B)
FF/AMS + s (CD), G (DECK B)
Set
SYSTEM CONTROL termina
To Next Page
