Sony HVR-M10E - Page 80

HVR-M10C/M10E/M10J/M10N/M10P/M10U
4-81 4-82
FP-971/FP-976
For Schematic Diagram
• Refer to page 4-77 for printed wiring board.
• : Uses unleaded solder.
11
1-864-144-

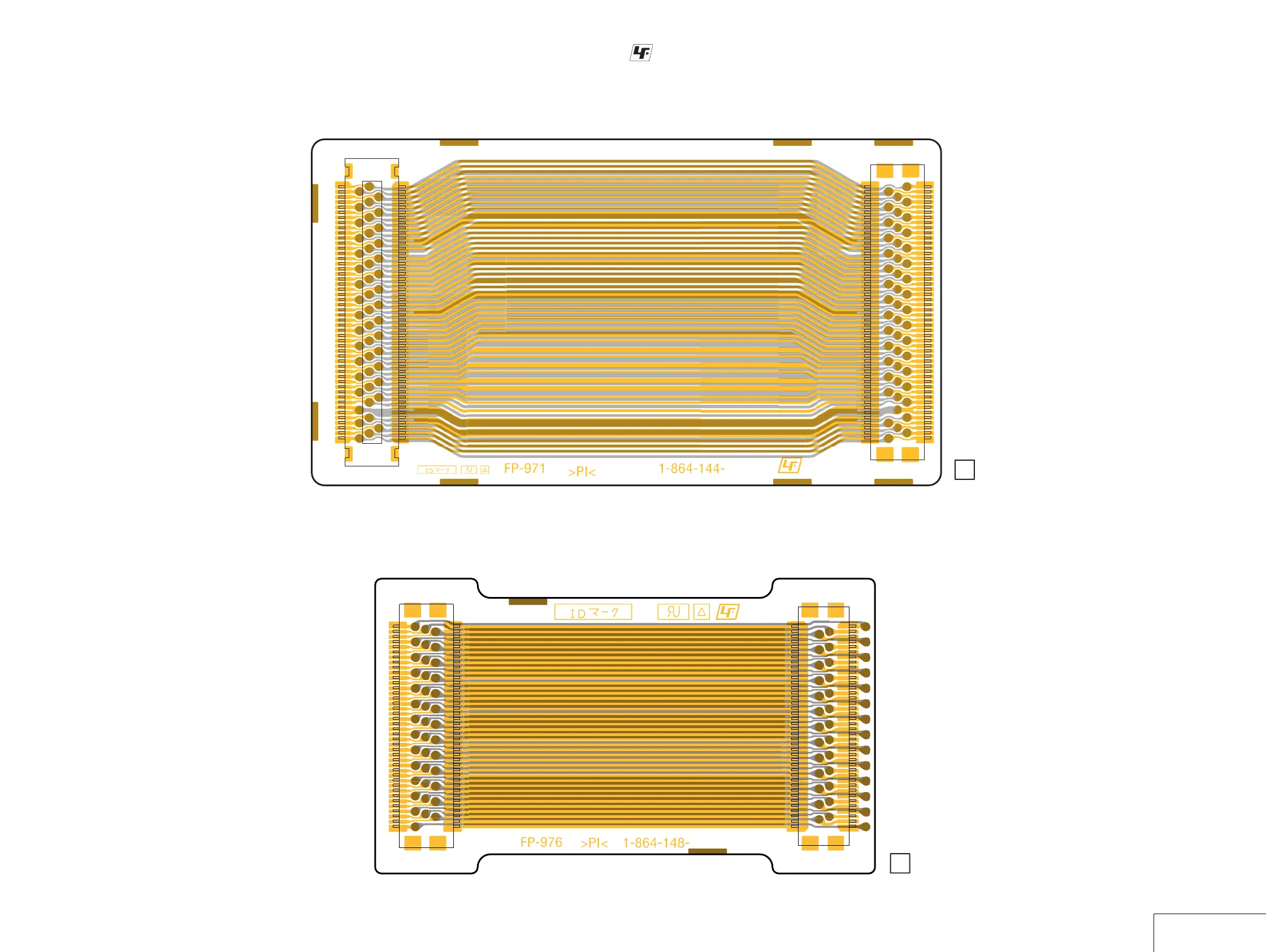

FP-971 FLEXIBLE BOARD
16
CN710
CN711
1
2
99
1
99
100
2
100
CN760
CN761
1
79
1
79
2
80
2
80
FP-976 FLEXIBLE BOARD
11
1-864-148-
16
• Ref. No.; 70,000 Series.
