Sony HXR-NX5U Service Manual

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-11

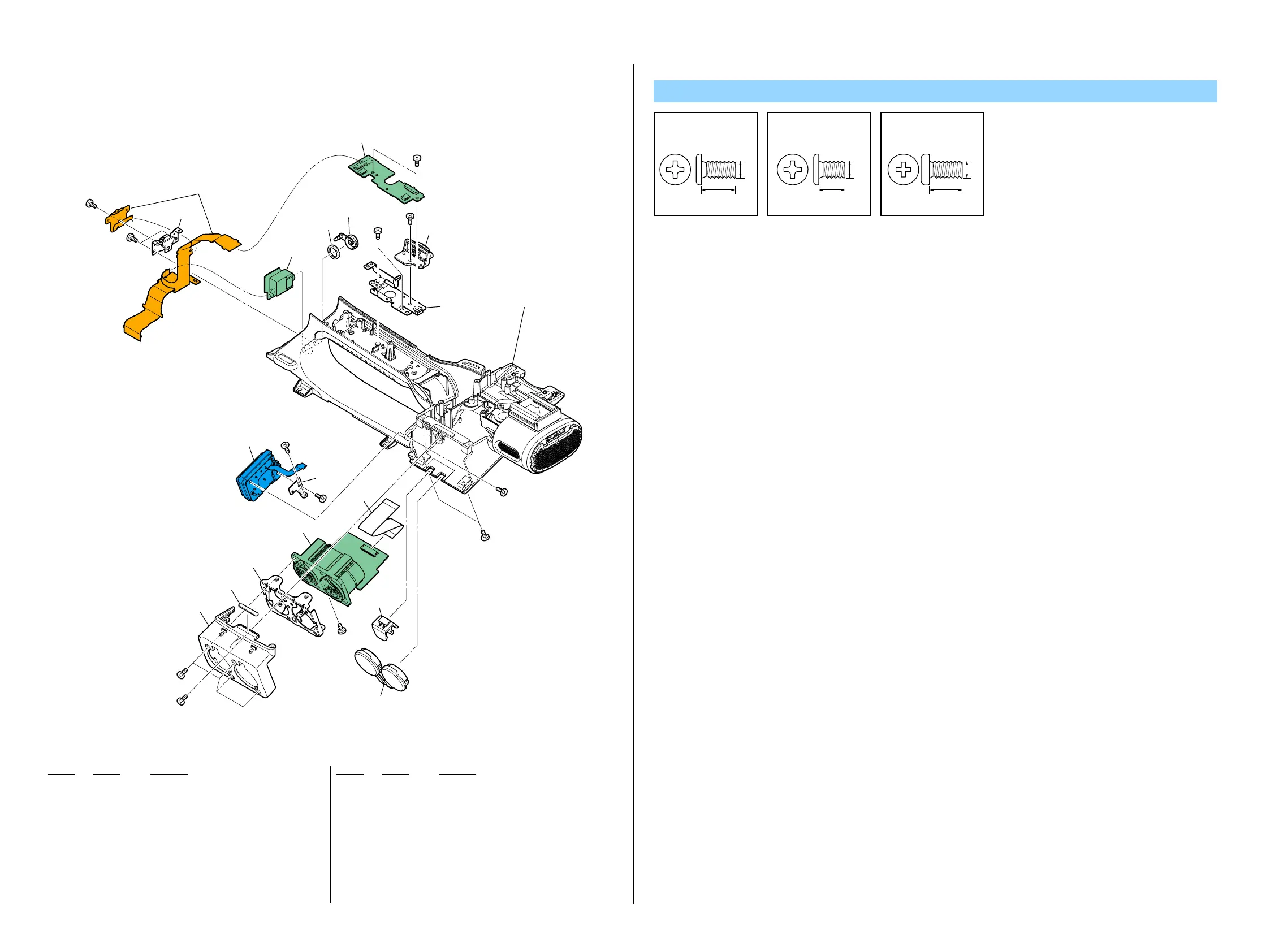

2-1-9. HANDLE SECTION-3
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
401 A-1752-136-A FP-1152 FLEXIBLE BOARD, COMPLETE
402 A-1752-114-A HP-156 BOARD, COMPLETE
403 A-1752-123-A HG-001 BOARD, COMPLETE
404 4-165-284-01 COVER, HP JACK
405 3-061-234-01 NUT (M6X0.5)
406 X-2188-599-1 KNOB ASSY, ZOOM SELECTION
407 1-834-244-11 FLEXIBLE FLAT CABLE (FFC-116)
408 A-1752-130-A XL-011 BOARD, COMPLETE
* 409 4-165-279-01 BRACKET, XL
410 3-288-474-01 RUBBER, PANEL RETAINER
411 4-165-282-01 COVER, XLR
412 4-165-285-01 COVER, XLR RUBBER
413 2-892-095-01 CLAMP, CABLE
414 1-480-870-11 SWITCH BLOCK, CONTROL (XS93000)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#119 7-627-556-58 SCREW +P 2.6X5
Screw
ns
ns
ns
#49
#49
#50
#50
#50
#50
#119
#49
#49
#49
#49
#49
401
402
403
405
Handle section-4
(See page 2-12)
404
406
407
414
408
409
410
411
412
413
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
