Sony ICD-UX522F - Page 10

ICD-UX522F/UX523F
10

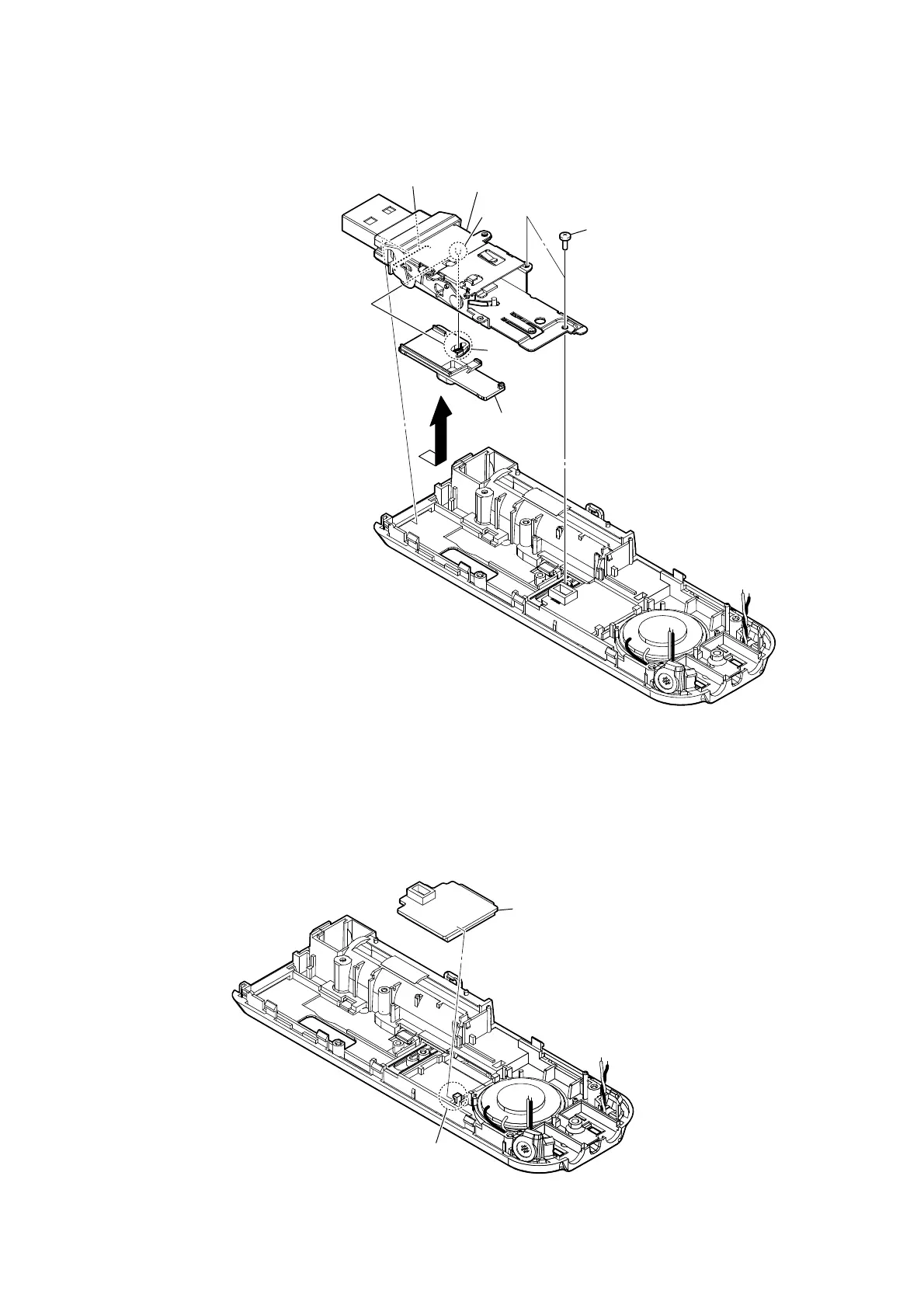

2-12. SLOT BOARD
2-11. USB ASSY
1 two screws
(M1.4)
4 knob (USB)
2 claw
5 USB assy
shaft
hole
3
Note:
When installing USB assy, Match the position of
the shaft of USB assy and the hole of knob (USB).
– Front top view –
1 claw
2 SLOT board
– Front top view –
