Sony ICF-303L - Section 2 Disassembly; Cabinet (Rear) Assy; Main Board

– 4 –
1 Unsolder the 2 places.
2
3 screw (2x8)
4 claws
5 chassis assy
6 holder, jac
k
7 MAIN board
chassis
rack
A
Note : Follow the disassembly procedure in the numerical order given.

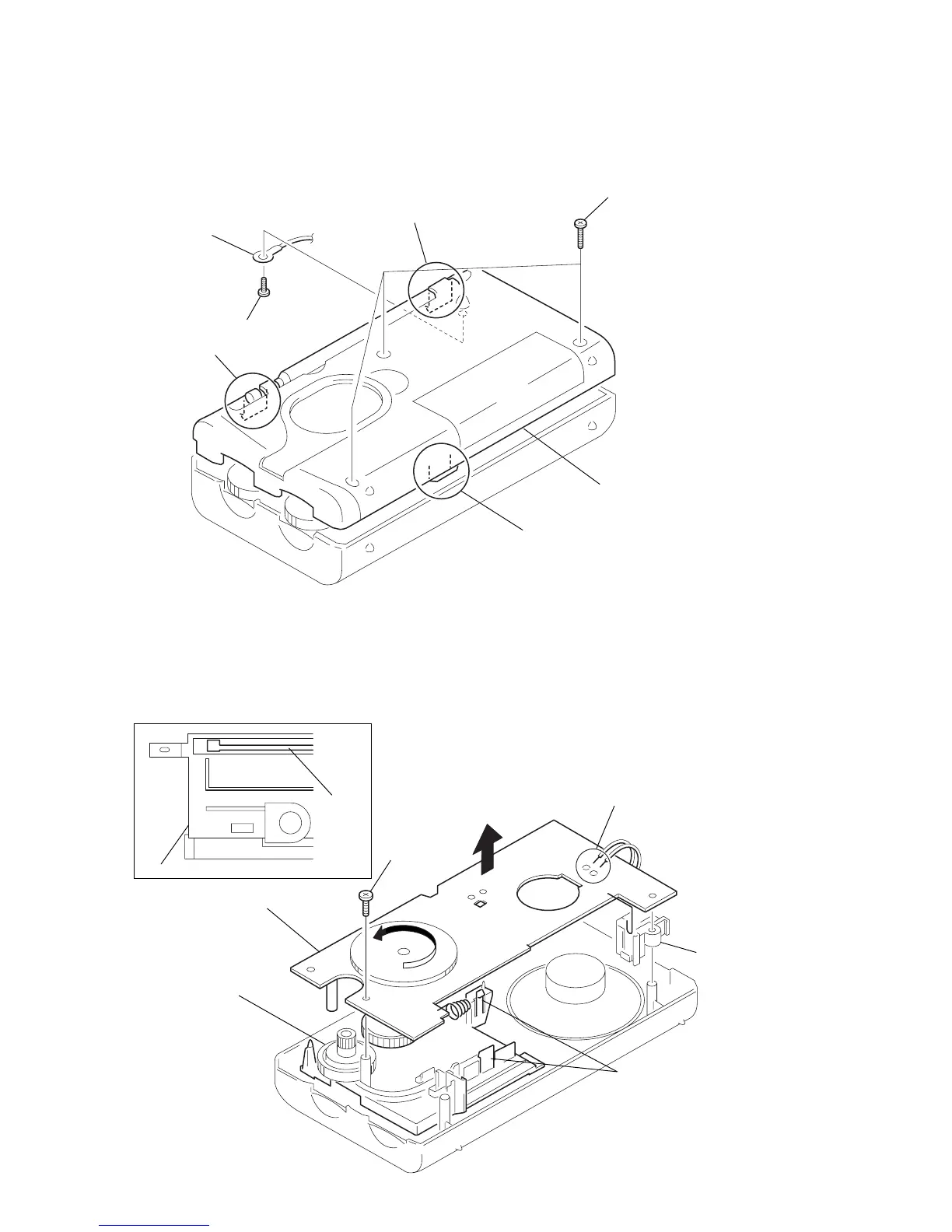

2-1. CABINET (REAR) ASSY
2-2. MAIN BOARD
SECTION 2
DISASSEMBLY
1 screws +P 2.6x12
5 screws B 1.7x4
6 lug 2.6
7 cabinet (REAR) assy
2 claw
3 claw
4 claw
• Setting the Pointer
1. Turn the gear (tuning capacitor) in the direction of A until it is stopped.
2. Place the rack as shown in the figure.
3. Mount the pointer.
