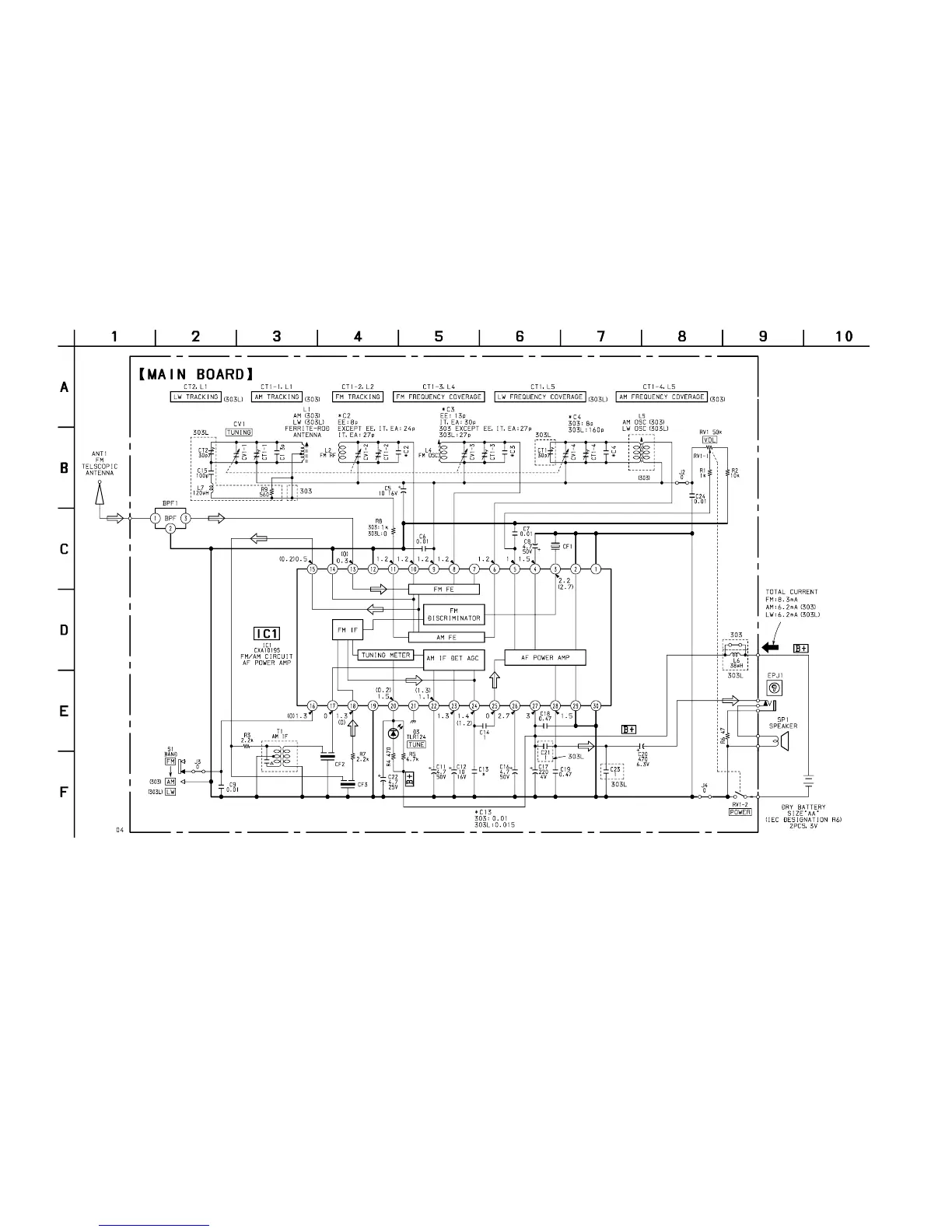

4-2. SCHEMATIC DIAGRAM
– 9 – – 10 –
ICF-303/303L
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
•
¢
: internal component.
• C : panel designation.
• U : B+ Line.
• H : adjustment for repair.
• Total current is measured with power on.
• Power voltage is dc 3 V and fed with regulated dc power
supply from battery terminal.
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
( ) : AM or LW
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Signal path.
F : FM
• Abbreviation
IT : Italian model
EE : East European model
EA : Saudi Arabia model
To Next Page
