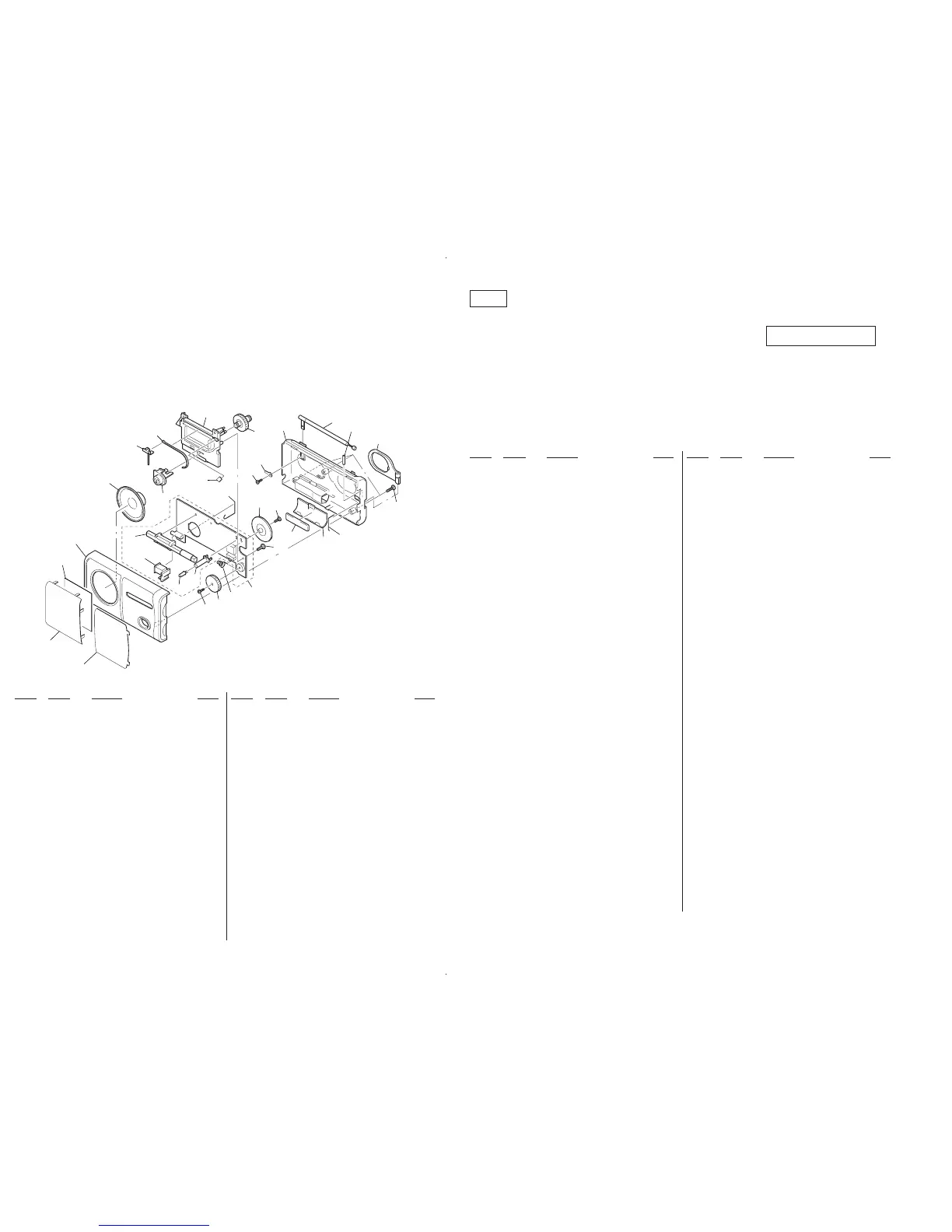

SECTION 5
EXPLODED VIEW
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories and packing materials are given in
the last of this parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
•Abbreviation
EE : East European model
IT : Italian model
EA : Saudi Arabia model
– 11 – – 12 –
SECTION 6
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
• CAPACITORS
uF : µF
• COILS
uH : µH
When indicating parts by reference
number, please include the board.
•Abbreviation
EE : East European model
IT : Italian model
EA : Saudi Arabia model
CND : Cnadian model
AR : Argentina model
AUS:Australian model
CH
TW
:
:
Chinese model
Taiwan model
MAIN
1 3-037-044-01 PLATE, TRANSPARENT (303:EXCEPT EE,IT,EA)
1 3-037-044-11 PLATE, TRANSPARENT (IT,EA)
1 3-037-044-21 PLATE, TRANSPARENT (EE)
1 3-037-044-31 PLATE, TRANSPARENT (303L)
2 3-037-046-01 PANEL (SPEAKER) (BLACK)
2 3-037-046-11 PANEL (SPEAKER) (WHITE) (EXCEPT EE)
3 3-037-038-01 CABINET (FRONT) (BLACK)
3 3-037-038-11 CABINET (FRONT) (WHITE) (EXCEPT EE)
4 3-037-045-01 HOLDER, JACK
5 3-037-043-01 HOLDER, LED
6 3-037-020-01 KNOB (POWER/VOL) (BLACK)
6 3-037-020-11 KNOB (POWER/VOL) (WHITE) (EXCEPT EE)
7 3-037-048-01 TERMINAL (–), BATTERY
8 3-880-990-00 SCREW (1.7X3), FLAT, (+) SPECIAL
* 9 A-3663-369-A MAIN BOARD, COMPLETE
(303:EXCEPT EE,IT,EA)
* 9 A-3663-372-A MAIN BOARD, COMPLETE (303L)
* 9 A-3663-375-A MAIN BOARD, COMPLETE (EE)
* 9 A-3663-378-A MAIN BOARD, COMPLETE (IT,EA)
10 3-371-765-21 SCREW (2X8), +BTP
11 3-369-171-01 GEAR (TUNING CAPACITOR)
12 3-037-047-01 TERMINAL (+), BATTERY
13 3-040-693-01 SHEET, SPEAKER (for WHITE)
14 3-037-025-11 POINTER
15 3-369-170-01 RACK
* 16 3-037-040-01 CHASSIS
* 17 3-037-706-01 PLATE, RACK RETAINER
18 3-037-041-01 KNOB (TUNE) (BLACK)
18 3-037-041-11 KNOB (TUNE) (WHITE) (EXCEPT EE)
19 3-318-203-61 SCREW (B1.7X4), TAPPING
20 7-623-505-01 LUG, 2.6
21 3-037-039-01 CABINET (REAR) (BLACK)
21 3-037-039-11 CABINET (REAR) (WHITE) (EXCEPT EE)
22 3-372-124-01 CUSHION (BATTERY)
23 3-037-024-01 HANDLE (BLACK)
23 3-037-024-11 HANDLE (WHITE) (EXCEPT EE)
24 7-685-136-19 SCREW +P 2.6X12 TYPE2 N-S
25 3-037-034-01 SPRING (HANDLE)
26 3-037-019-01 LID, BATTERY CASE (BLACK)
26 3-037-019-11 LID, BATTERY CASE (WHITE) (EXCEPT EE)
27 3-037-042-01 KNOB (BAND) (BLACK)
27 3-037-042-11 KNOB (BAND) (WHITE) (EXCEPT EE)
ANT1 1-501-247-21 ANTENNA, TELESCOPIC
D3 8-719-069-94 LED TLR124 (TUNE)
L1 1-402-566-11 ANTENNA, FERRITE-ROD (AM) (303)
L1 1-402-567-11 ANTENNA, FERRITE-ROD (LW) (303L)
SP1 1-529-456-11 SPEAKER (6.6cm)
* A-3663-369-A MAIN BOARD, COMPLETE
(303:EXCEPT EE,IT,EA)
* A-3663-372-A MAIN BOARD, COMPLETE (303L)
* A-3663-375-A MAIN BOARD, COMPLETE (EE)
* A-3663-378-A MAIN BOARD, COMPLETE (IT,EA)
**********************
3-037-043-01 HOLDER, LED
< BPF >
BPF1 1-233-452-11 FILTER, BAND PASS (EE)
BPF1 1-236-839-11 FILTER, BAND PASS (EXCEPT EE)
< CAPACITOR >
C2 1-163-091-00 CERAMIC CHIP 8PF 50V
(EE)
C2 1-163-102-00 CERAMIC CHIP 24PF 5% 50V
(EXCEPT EE,IT,EA)
C2 1-163-103-00 CERAMIC CHIP 27PF 5% 50V
(IT,EA)
C3 1-163-096-00 CERAMIC CHIP 13PF 5% 50V
(EE)
C3 1-163-104-00 CERAMIC CHIP 30PF 5% 50V
(IT,EA)
C3 1-163-237-11 CERAMIC CHIP 27PF 5% 50V
(303L)
C3 1-163-713-11 CERAMIC CHIP 27PF 5% 50V
(303:EXCEPT EE,IT,EA)
C4 1-163-091-00 CERAMIC CHIP 8PF 50V
(303)
C4 1-163-122-00 CERAMIC CHIP 160PF 5% 50V
(303L)
C5 1-126-157-11 ELECT 10uF 20% 16V
C6 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C8 1-126-163-11 ELECT 4.7uF 20% 50V
C9 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C11 1-126-163-11 ELECT 4.7uF 20% 50V
C12 1-126-157-11 ELECT 10uF 20% 16V
C13 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
(303)
C13 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V
(303L)
C14 1-162-638-11 CERAMIC CHIP 1uF 16V
C15 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
(303L)
C16 1-126-163-11 ELECT 4.7uF 20% 50V
C17 1-124-434-00 ELECT 220uF 20% 4V
C18 1-162-637-11 CERAMIC CHIP 0.47uF 16V
C19 1-162-637-11 CERAMIC CHIP 0.47uF 16V
C20 1-126-941-11 ELECT 470uF 20% 6.3V
C21 1-162-638-11 CERAMIC CHIP 1uF 16V
(303L)
C23 1-162-638-11 CERAMIC CHIP 1uF 16V
(303L)
C24 1-163-031-11 CERAMIC CHIP 0.01uF 50V
< FILTER >
CF1 1-567-097-61 FILTER, CERAMIC
CF2 1-577-072-11 FILTER, CERAMIC (303)
CF2 1-578-677-11 FILTER, CRYSTAL (303L)
CF3 1-567-097-61 FILTER, CERAMIC
< TRIMMER >
CT1 1-141-245-00 CAP, TRIMMER 30PF (303L)
CT2 1-141-245-00 CAP, TRIMMER 30PF (303L)
< VARIABLE CAPACITOR >
CT1 1-151-659-11 CAP, VARIABLE (EXCEPT EE)
CV1 1-151-659-11 CAP, VARIABLE (TUNING) (EXCEPT EE)
CT1 1-151-659-22 CAP, VARIABLE (EE)
CV1 1-151-659-22 CAP, VARIABLE (TUNING) (EE)
< DIODE >
D3 8-719-069-94 LED TLR124 (TUNE)
< JACK >
EPJ1 1-563-836-21 JACK (v)
< IC >
IC1 8-752-037-02 IC CXA1019S
< JUMPER RESISTOR >
J2 1-216-296-00 SHORT 0
J3 1-216-296-00 SHORT 0
J4 1-216-296-00 SHORT 0
< COIL >
L1 1-402-566-11 ANTENNA, FERRITE-ROD (AM) (303)
L1 1-402-567-11 ANTENNA, FERRITE-ROD (LW) (303L)
L2 1-403-614-11 COIL, AIR-CORE (EE)
* L2 1-422-320-11 COIL, AIR-CORE (EXCEPT EE)
