Sony ICF-703 - Section 5 Exploded View

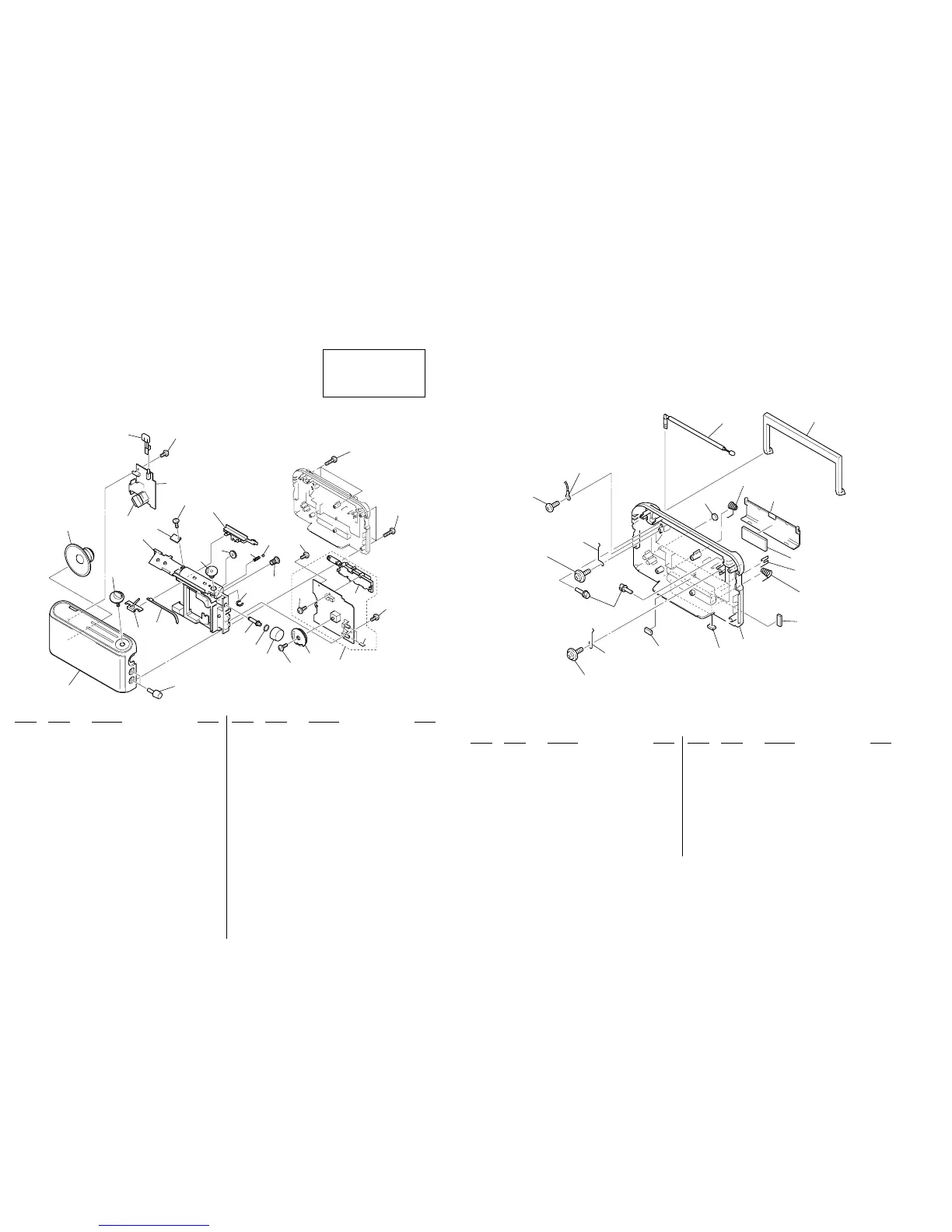

SECTION 5
EXPLODED VIEW
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories and packing materials are given in
the last of this parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Abbreviation
IT : Italian model
– 13 – – 14 –
1 X-3379-333-1 CABINET (FRONT) SUB ASSY (BLACK) (703L)
1 X-3379-335-1 CABINET (FRONT) SUB ASSY (BLACK) (703)
1 X-3379-336-1 CABINET (FRONT) SUB ASSY (WHITE) (703L)
1 X-3379-338-1 CABINET (FRONT) SUB ASSY (WHITE) (703)
2 3-043-337-01 KNOB (CONTROL) (BLACK)
2 3-043-337-11 KNOB (CONTROL) (WHITE) (AEP)
3 3-043-343-01 KNOB (BAND) (BLACK)
3 3-043-343-11 KNOB (BAND) (WHITE) (AEP)
4 3-043-347-01 POINTER
5 3-043-348-01 RACK (POINTER)
6 3-043-330-01 CHASSIS
* 7 1-677-379-11 LED BOARD
* 8 1-677-381-11 POWER BOARD
9 3-043-339-01 BUTTON (POWER) (BLACK)
9 3-043-339-11 BUTTON (POWER) (WHITE) (AEP)
10 3-043-344-11 GEAR (BAND) (703)
10 3-043-344-21 GEAR (BAND) (703L)
11 3-043-349-01 GEAR (A), MIDWAY
12 3-043-721-01 SPRING (BAND)
13 3-048-207-01 RING (BAND)
14 3-043-350-01 GEAR (B), MIDWAY
15 3-043-345-01 SLIDER (BAND) (703L)
15 3-043-345-11 SLIDER (BAND) (703)
16 7-685-532-14 SCREW +BTP 2.6X5 TYPE2 N-S
17 7-685-547-19 SCREW +BTP 3X10 TYPE2 N-S
18 7-685-550-14 SCREW +BTP 3X16 TYPE2 N-S
* 19 A-3683-164-A MAIN PC BOARD ASSY (703L)
* 19 A-3683-177-A MAIN PC BOARD ASSY (703:AEP)
* 19 A-3683-196-A MAIN PC BOARD ASSY (703:IT)
20 3-043-346-01 HOLDER, FERRITE-ROD ANTENNA
21 3-043-342-01 DRUM (A), VC
22 3-364-941-11 SCREW (+B) (2.6X5), NYLOK
23 3-043-338-01 KNOB (TUNING) (BLACK)
23 3-043-338-11 KNOB (TUNING) (WHITE) (AEP)
24 3-045-680-01 SPRING (TUNING)
25 3-043-336-01 SHAFT (TUNING)
26 7-671-112-11 BALL, STEEL
27 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
28 3-049-870-01 WOVEN (VOL), FABRIC NON
SP1 1-529-676-11 SPEAKER (10.2cm)
0 T401 1-435-513-11 TRANSFORMER, POWER
R
R
SP1
T401
2
1
3
4
5
6
7
8
17
17
17
18
18
10
9
11
12
13
14
15
16
19
28
20
27
21
22
23
24
25
26
5-1. CABINET (FRONT) SECTION
51 3-045-684-01 CABINET (REAR) (BLACK)
51 3-045-684-11 CABINET (REAR) (WHITE) (AEP)
52 3-049-207-01 CUSHION (BATTERY) (B)
53 3-049-448-01 CUSHION (BATTERY) (D)
54 3-043-717-01 SPRING (HANDLE)
55 7-685-903-31 SCREW +PTPWH 3X10 (TYPE2)
56 3-049-447-01 CUSHION (BATTERY) (C)
57 3-043-335-01 SHAFT (HANDLE)
58 7-685-903-21 SCREW +PTPWH 3X8 (TYPE2)
59 3-049-592-01 SPRING (HANDLE) (B)
60 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
61 7-623-508-01 LUG, 3
62 3-043-334-01 HANDLE (BLACK)
62 3-043-334-11 HANDLE (WHITE) (AEP)
63 3-043-718-01 TERMINAL (+.–), BATTERY
64 3-049-208-01 CUSHION (HANDLE)
65 3-043-331-01 LID, BATTERY CASE (BLACK)
65 3-043-331-11 LID, BATTERY CASE (WHITE) (AEP)
66 9-911-815-02 CUSHION
67 3-043-719-01 TERMINAL (+), BATTERY
68 3-043-720-01 TERMINAL (–), BATTERY
ANT1 1-501-222-71 ANTENNA, TELESCOPIC (FM)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
5-2. CABINET (REAR) SECTION
ANT1
59
60
61
57
58
62
64
63
65
66
67
68
56
54
55
51
52
53
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
