CF-C113V
FM FREQUENCY COVERAGE ADJUSTMENT
Adjust parts Frequecy display
Reading on digital
voltmeter
L5 TV 2CH 59.75MHz 2.35 ± 0.1V
confirmation FM 108.0MHz
Less than 13.5V
(Standard 12.5V)
FM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L4 – 2 TV 2CH 59.75MHz
CT5 FM 108.0MHz
TV IF ALIGNMENT
Adjust for a maximum reading on level meter.
T1 10.7MHz
TV FREQUENCY COVERAGE ADJUSTMENT
Adjust parts Frequecy display
Reading on digital
voltmeter
L2 WEATHER 2CH 162.4MHz 1.0 ± 0.1V
confirmation TV 13CH 215.75MHz
less than 12.3V
(Standard 11.0V)
TV TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L1 WEATHER 2CH 162.4MHz
CT1 TV 13CH 215.75MHz

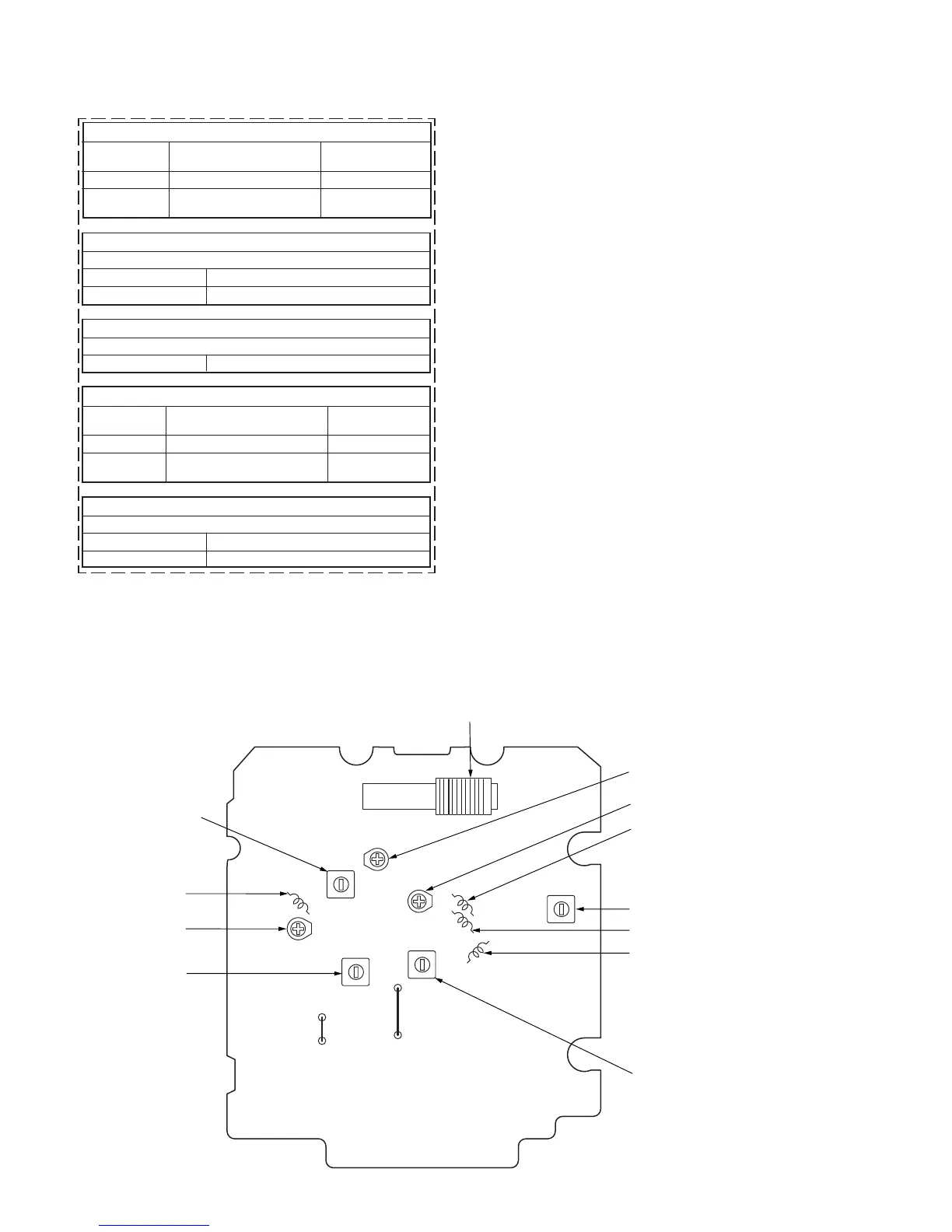

Adjustment Location :
ICF-C113/C113V
L2 : TV Frequency
Coverage Adjustment
L5 : FM Frequency
Coverage Adjustment
L6 : AM Frequency
Coverage Adjustment
L1 : TV Tracking
Adjustment
L3 : AM Tracking Adjustment
T2: AM IF Alignment
T1 : TV IF Alignment
CT1 : TV Tracking
Adjustment
[MAIN BOARD]
(Component side)
CT3 : AM Tracking Adjustment
CT5 : FM Tracking Adjustment
L4 —1 : FM Tracking Adjustme
n
L4 —2 : FM Tracking Adjustme
n
JW5
GND
VT
JW9
