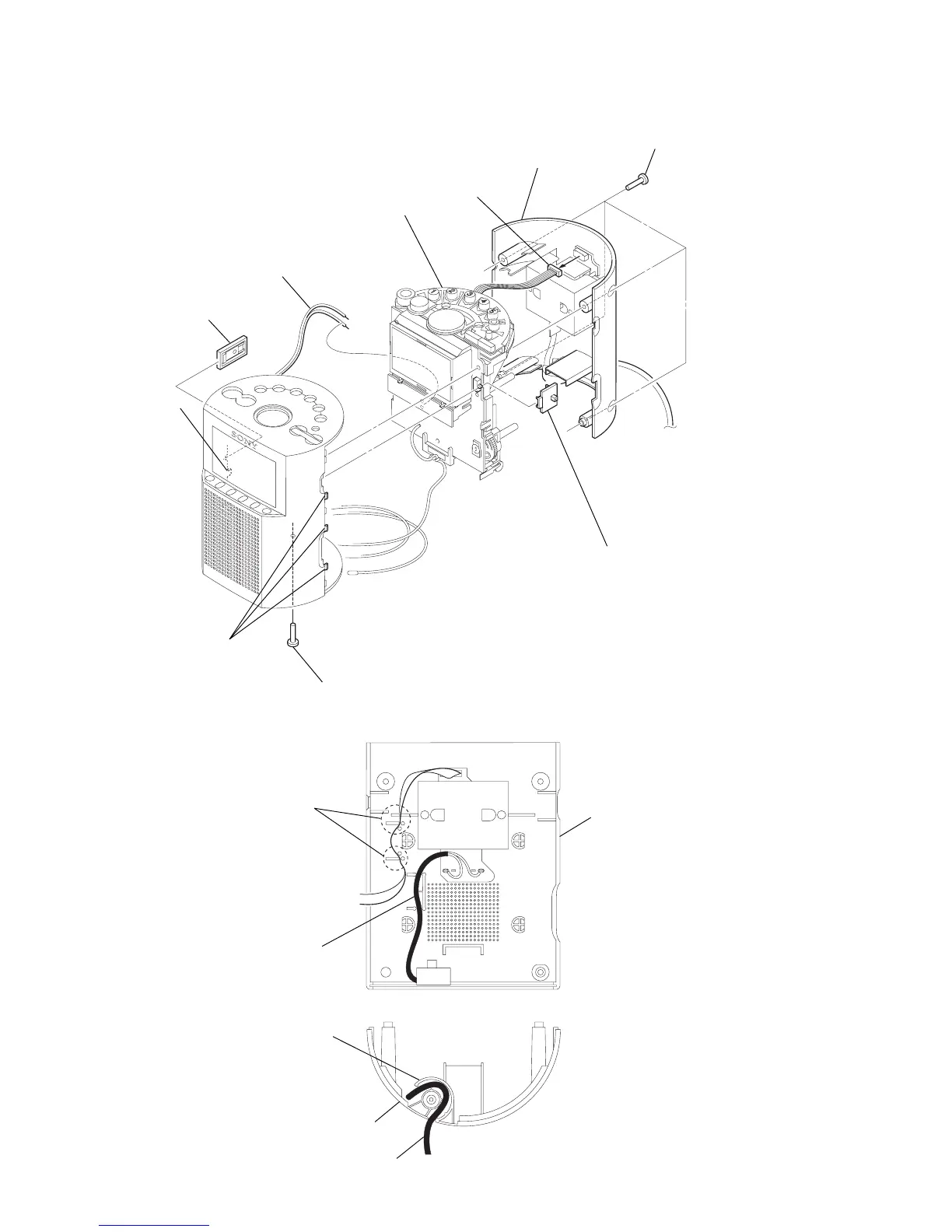

CHASSIS ASSY
POWER CORD SETTING
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
1 screw (P3 × 14)
2 three claws
2 claw
6 button (DST)
5 Break the soldering of
speaker lead.
7 chassis assy
3 rear cabinet
6 knob (brightness)
1 four screws (P3 × 14
)
4 connector
(CN301)
rear cabine
t
power cord
boss
rear cabinet
power cord
Put the secondary flat cable
between bosses to fix.
Set the power cord as illustrated below,
then install the cabinet.
