– 19 –
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AUS : Australian model
CND : Canadian model
FR : French model
SP : Singapore model

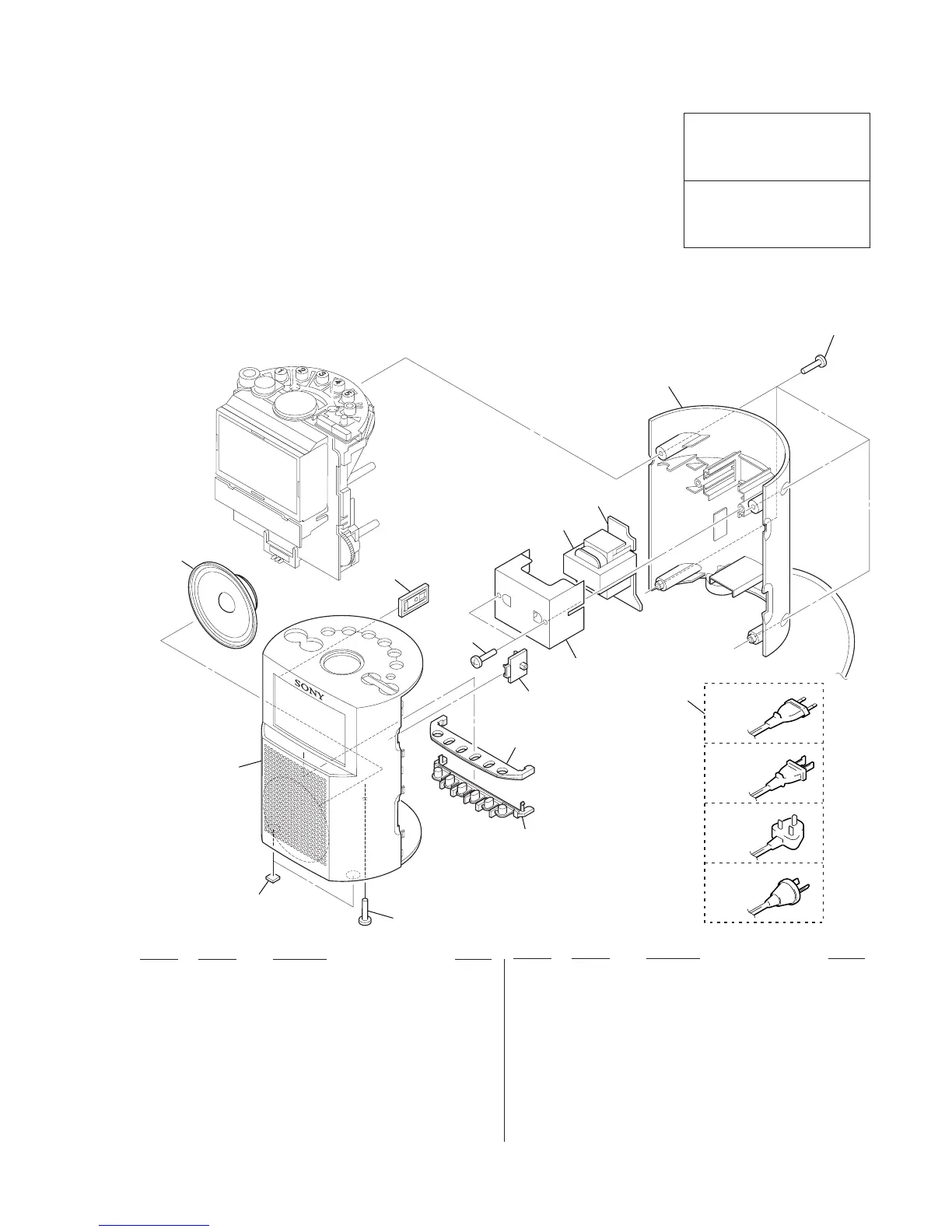

(1) CABINET SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 7-685-649-79 SCREW +P 3X14 TYPE2 NON-SLIT
2 3-368-852-01 FOOT
3 X-3377-454-1 CABINET (FRONT) SUB ASSY (C793: AEP, SP,
AUS)
3 X-3377-083-1 CABINET ASSY (C793: US, CND)
3 X-3377-215-1 CABINET ASSY (C793L)
4 3-032-463-01 BUTTON (DST)
* 5 1-671-842-11 TRANSFORMER BOARD
6 3-032-458-01 CABINET (REAR)
7 3-032-462-01 BUTTON (ALARM)
8 3-032-465-01 PANEL (ALARM)
9 3-032-460-01 KNOB (BRIGHTNESS)
! 10 1-555-795-00 CORD, POWER (C793: AEP, SP/C793L: FR)
! 10 1-696-572-21 CORD, POWER (C793L: UK)
! 10 1-783-817-11 CORD, POWER (C793: US, CND)
! 10 1-790-431-11 CORD, POWER (C793: AUS)
SP301 1-504-748-21 SPEAKER (6.6cm)
! T301 1-433-600-11 TRANSFORMER, POWER (C793: US, CND)
! T301 1-433-601-11 TRANSFORMER, POWER
(C793: AEP, SP, AUS/C793L)
SP301
4
1
9
8
7
1
2
3
5
6
1
10
T301
not supplied
AEP, FR, SP
US, CND
UK
AUS
