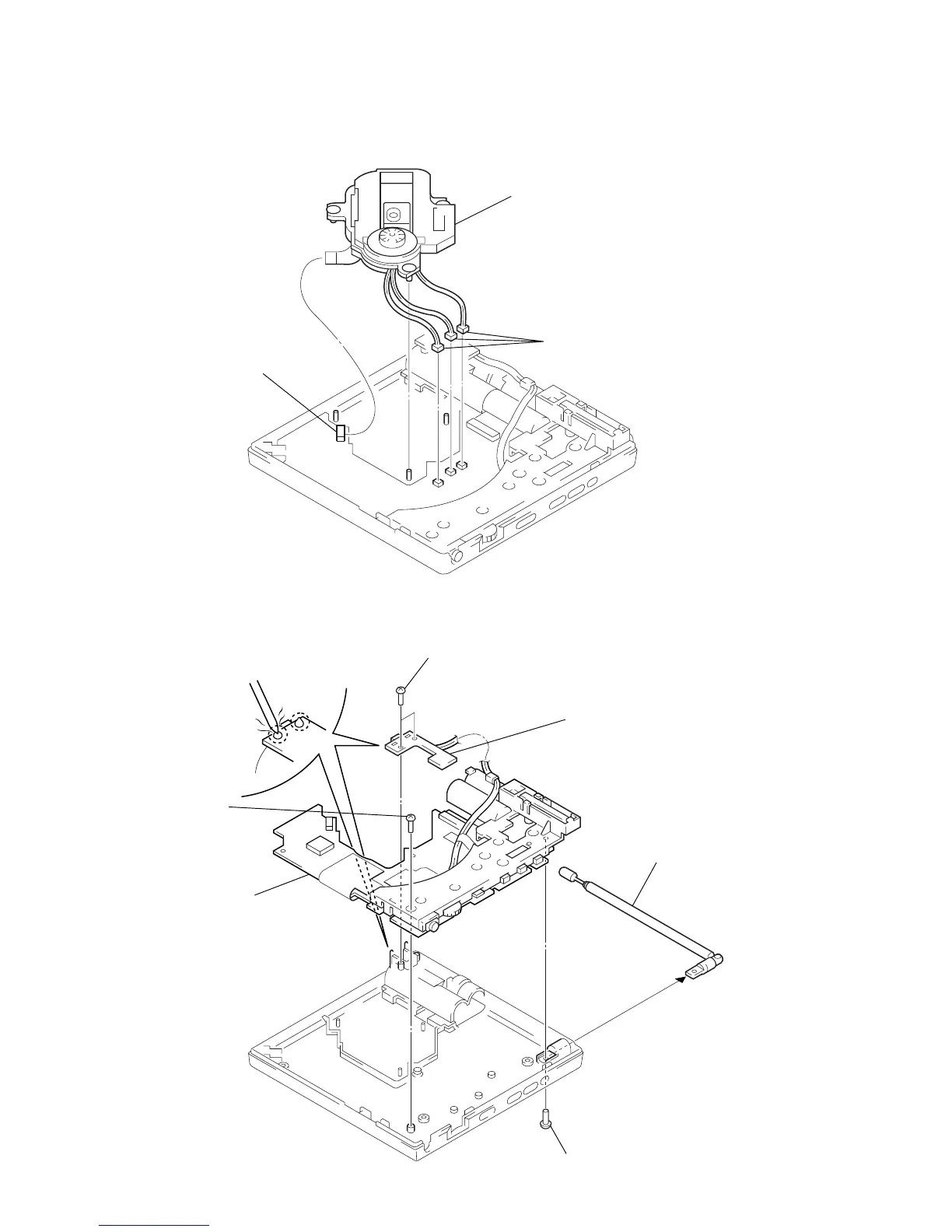

OPTICAL PICK-UP (CDM-2911EBA)
3 optical pick-up
(CDM-2911EBA)
2 three connectors
(CN601, 602, 603
)
1 connector (CN501)
MAIN BOARD
3 two screws
(B1.7 × 5)
4 Remove two solders.
6 screw (2 × 8)
7 main board
1 screw (B3 × 6)
2 telescopic antenna
5 jack board
