[PRESET 3]:
[PRESET 4]:
[PRESET 5]:
[ OFF, ALARM RESET]: All lit

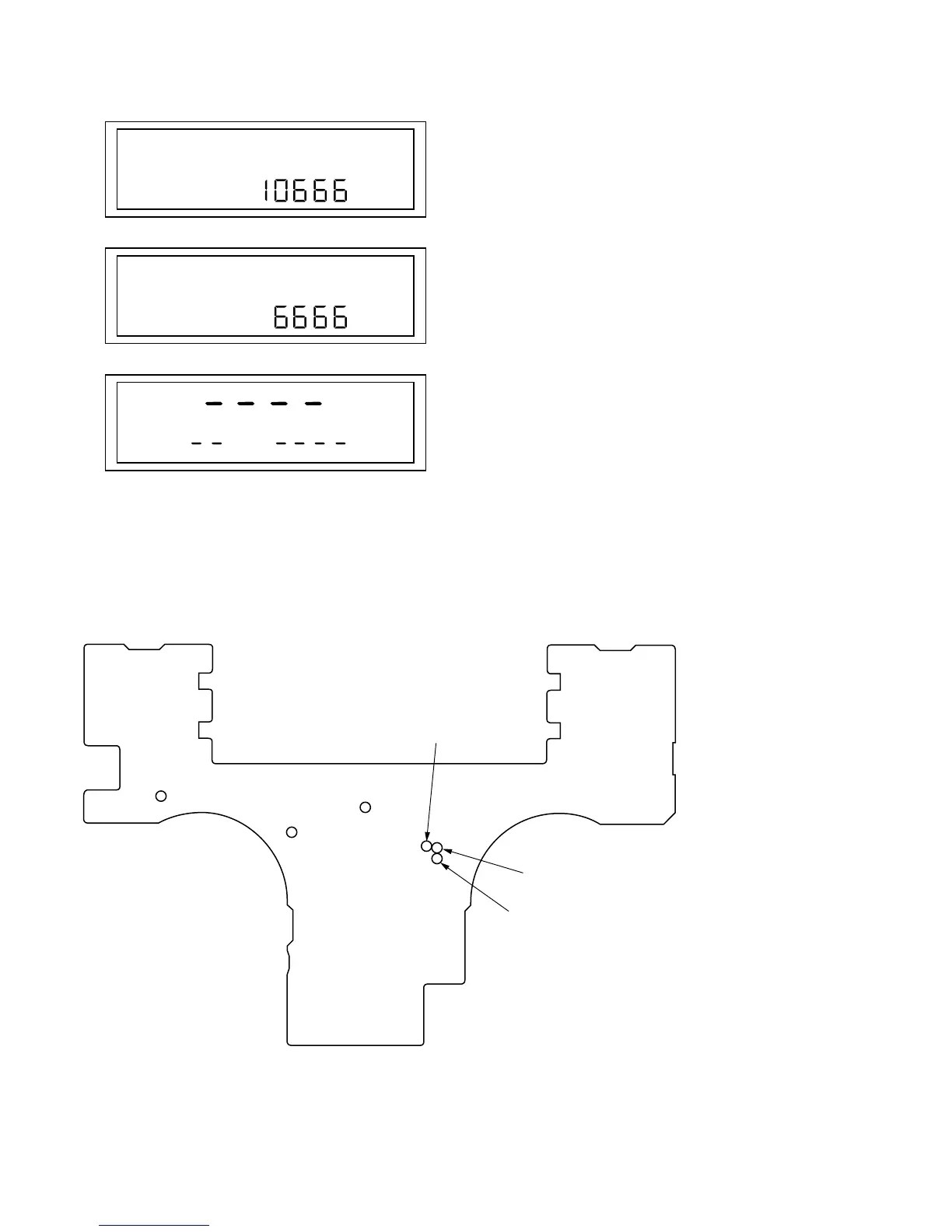

• Step3 (Resetting of LCD display check mode)
1. Remove external power supply.
2. Disconnect TP446 (TUNER TEST) and TP444 (GND).
Connecting Location:
– LCD Board (Conductor Side) –
x
TP448
(CD TEST 3)
TP449
(GND)
TP444
(GND)
TP445
(CD TEST 1)
TP446
(TUNER TEST)
TP447
(CD TEST 2)
