Sony ICF-CD2000 - Page 30

– 54 –

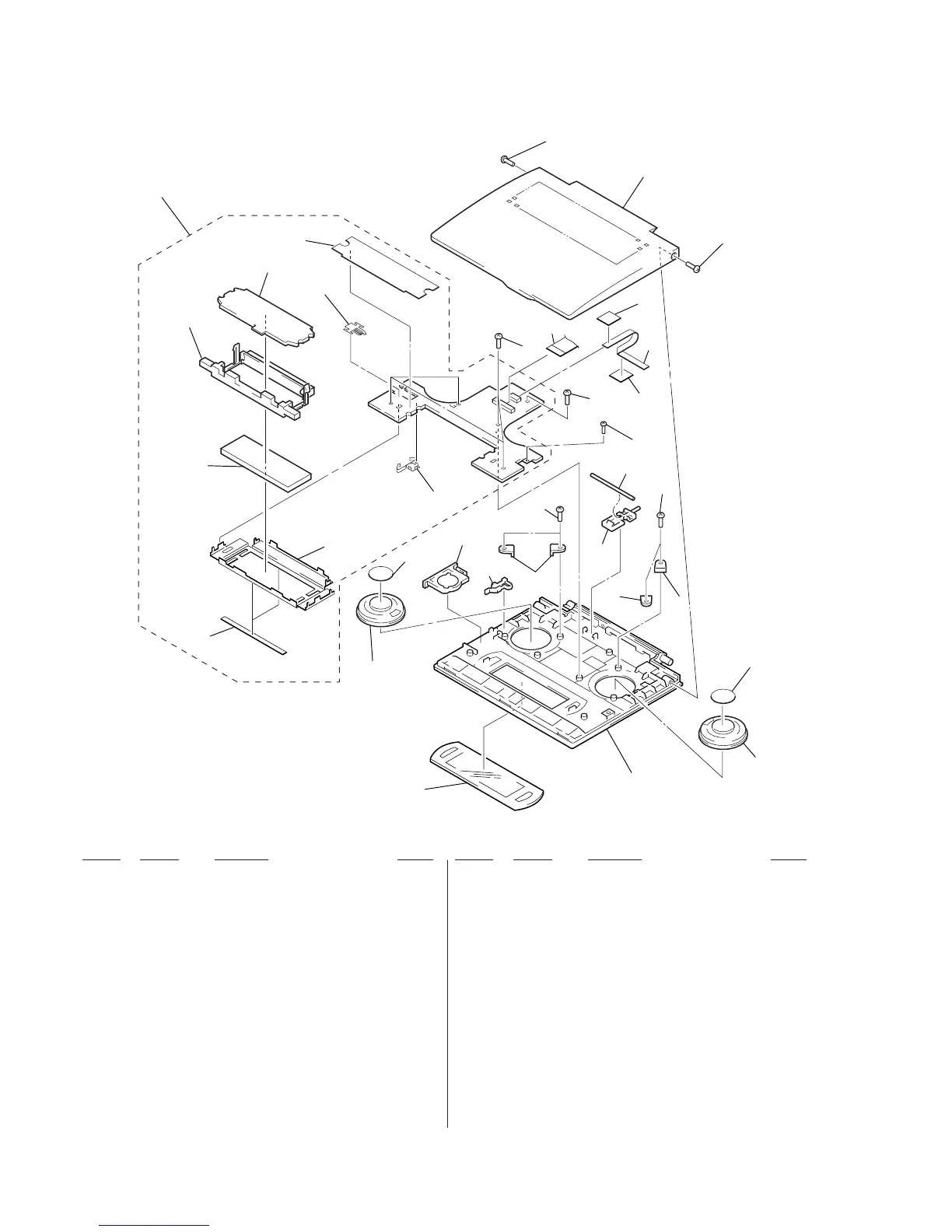

(2) LCD BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 3-033-576-11 WINDOW (LCD)
53 3-035-203-01 SHEET (SP), ELECTROSTATIC
54 X-3378-281-1 CASE (LITHIUM), BATTERY
55 3-033-561-01 BUTTON (LITHIUM)
* 56 3-934-436-01 HOOK (SP)
58 3-033-564-01 TERMINAL (LITHIUM +), BATTERY
* 59 A-3683-085-A LCD BOARD, COMPLETE (US, Canadian)
* 59 A-3683-087-A LCD BOARD, COMPLETE (E, SP, JEW)
* 59 A-3683-103-A LCD BOARD, COMPLETE (CD2000S)
60 3-033-565-01 TERMINAL (LITHIUM -), BATTERY
61 3-043-413-01 CUSHION (SHIELD CASE)
63 4-356-741-21 SCREW, TAPPING (BIND 2X8)
65 1-791-188-11 WIRE (FLAT TYPE) (5 CORE) (CD2000: US,
CND/CD2000S)
67 3-033-545-01 PLATE, LIGHT GUIDE
68 3-033-560-01 HOLDER, LCD
69 3-033-573-01 SHEET (LCD)
70 3-318-203-71 SCREW (B1.7X5), TAPPING
71 3-895-823-01 SCREW (B1.4X2.3), TAPPING
72 1-791-189-11 WIRE (FLAT TYPE) (36 CORE) (CD2000: US,
CND/CD2000S)
73 X-3377-783-1 CABINET (REAR) ASSY (CD2000)
73 X-3377-784-1 CABINET (REAR) ASSY (CD2000S)
74 3-934-781-01 SPRING (OFF SW)
75 3-033-555-01 BUTTON (OFF-SW)
76 X-3377-221-1 CABINET (FRONT) SUB ASSY
77 3-825-652-01 SPACER (A)
78 X-3378-282-1 CASE (LCD), SHIELD ASSY
LCD401 1-803-591-11 DISPLAY PANEL, LIQUID CRYSTAL
SP101 1-505-311-11 SPEAKER (4cm)
SP201 1-505-311-11 SPEAKER (4cm)
59
69
60
67
61
53
68
LCD401
SP101
SP201
58
78
54
55
70
56
70
56
71
70
70
51
76
53
56
77
65
63
77
72
63
73
74
75
