– 55 –

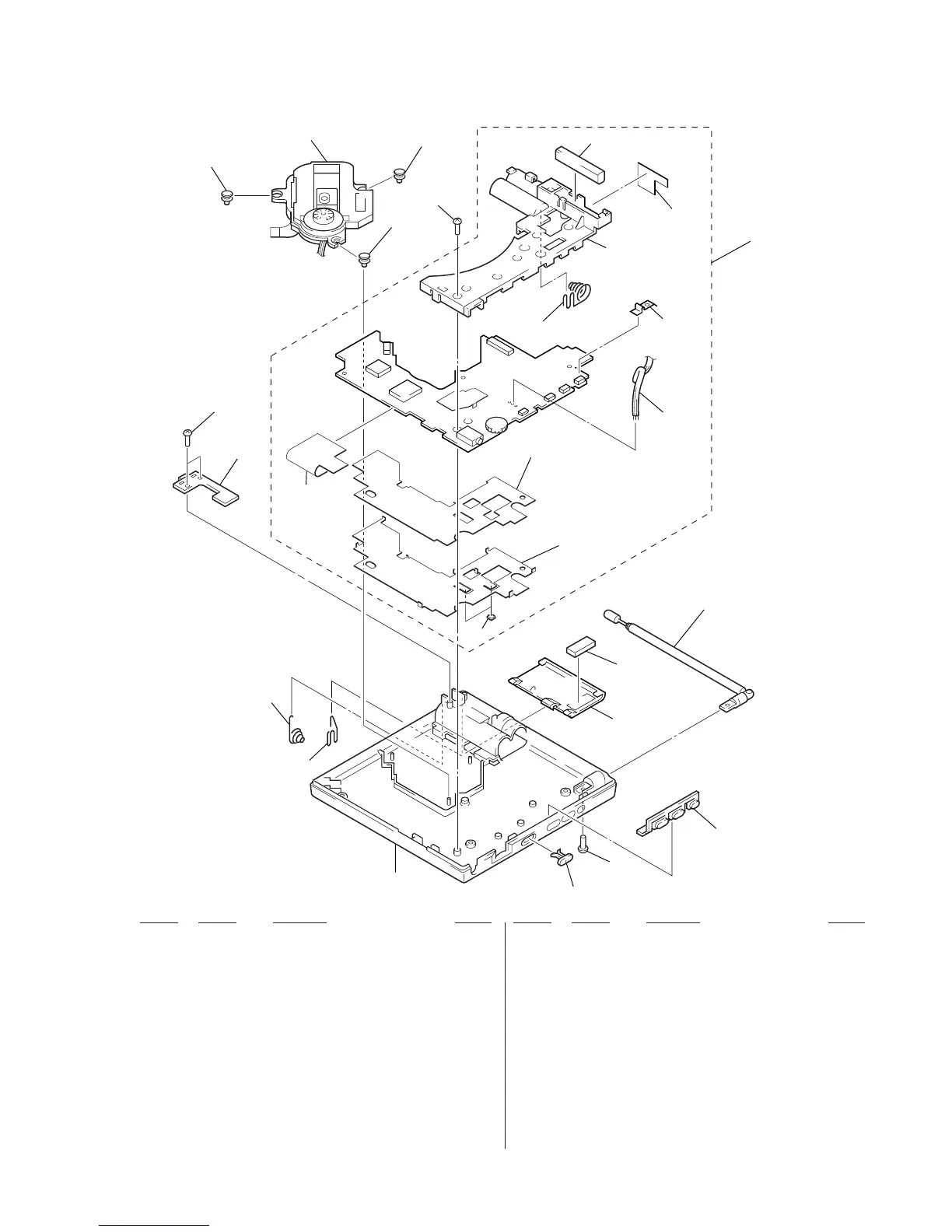

(3) MAIN BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 3-033-547-11 CABINET (LOWER) (CD2000)
101 3-033-547-21 CABINET (LOWER) (CD2000S)
102 3-033-570-01 TERMINAL (-), BATTERY
103 3-033-569-01 TERMINAL (+), BATTERY
104 3-040-780-01 SHEET, ELECTROSTATIC
* 105 A-3683-084-A MAIN BOARD, COMPLETE (CD2000: US, CND)
* 105 A-3683-086-A MAIN BOARD, COMPLETE
(CD2000: E, SP, JEW)
* 105 A-3683-102-A MAIN BOARD, COMPLETE (CD2000S)
* 106 1-673-933-11 JACK BOARD
107 3-318-203-71 SCREW (B1.7X5), TAPPING
108 3-040-426-01 INSULATOR
109 3-040-409-01 SHEET (CHASSIS), ELECTROSTATIC
110 3-033-549-01 CHASSIS
111 3-033-571-01 TERMINAL (+ -), BATTERY
112 3-033-574-01 CUSHION (BATTERY CASE LID)
113 3-033-550-01 LID, BATTERY CASE
114 3-033-552-01 BUTTON (CD)
115 3-370-475-01 SCREW (NYLOCK +B 3X6)
116 3-033-562-01 KNOB (MEGABASS)
118 4-356-741-21 SCREW, TAPPING (BIND 2X8)
119 3-039-164-01 SHEET (SHIELD B), INSULATING
120 3-040-410-01 CUSHION (SHIELD B)
121 3-033-563-01 TERMINAL BOARD, ANTENNA
ANT1 1-501-222-71 ANTENNA, TELESCOPIC (FM/SW)
L7 1-754-065-11 ANTENNA, FERRITE-ROD AM (MW)
107
106
104
119
120
112
113
114
115
116
101
103
102
111
105
109
L7
110
108
108
118
108
121
not supplied
not
supplied
CDM-2911EBA
ANT1
