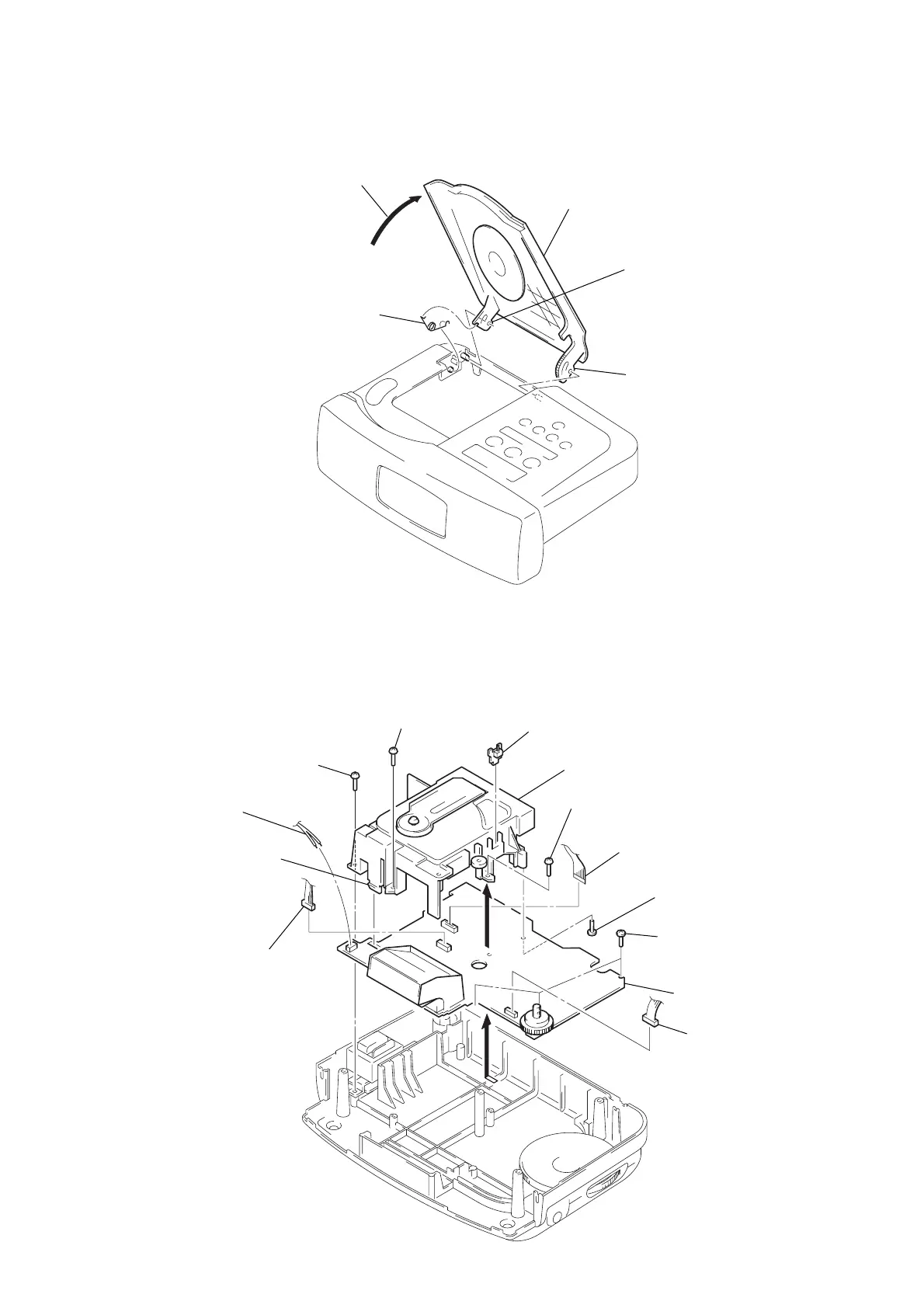

CD LID ASS’Y
MAIN BOARD AND OPTICAL PICK-UP SECTION
5 CD lid ass’y
3 left hinge plate
4 right hinge plate
1 Open the CD lid ass’y.
2 CD lid spring
1 switch board
9 optical pick-up section
3 screw
(BTP3 × 10)
0 flat cable (CNP501)
7 screw
(P3 × 14)
3 three screws
(BTP3 × 10)
6 main board
5 connector (CNP303
)
(except CD820:
US, Canadian)
!¡ connector
(CNP502)
4 screw
(PTP3 × 14)
3 screw
(BTP3 × 10)
2 lead wire
(CN901)
8 claw
