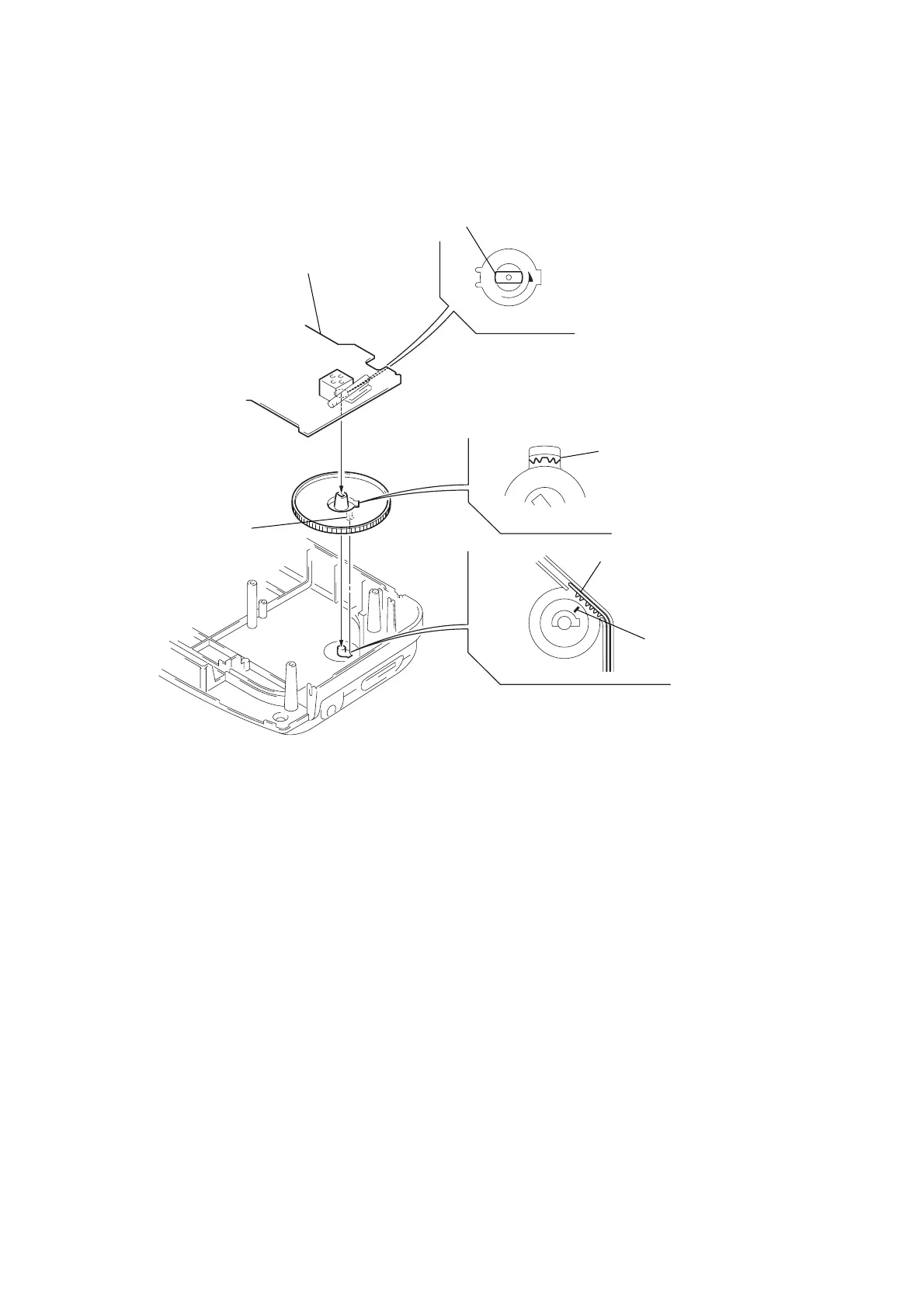

DIAL POINTER SETTING
Note: Follow the assembly procedure in the numerical order given.
4
Set the MAIN board.
pointer
(Fig. 2)
(Fig. 1)
marker
claw
(Fig. 3)
CV1
3
Turn the shaft CV1 to
the arrow direction from
the pattern side perfectly
(Fig. 3).
2
Fit
A
portion and fit a claw to
the hole of axle side and catch
in to pointer gear (Fig. 2).
pointer
A
1
Set the pointer at the marker
line (Fig. 1).
