Sony ICF-CD832 - 6 Exploded Views; Cabinet (Upper) Section

28
ICF-CD832
SECTION 6
EXPLODED VIEWS
Ref. No. Part No. Description Remark

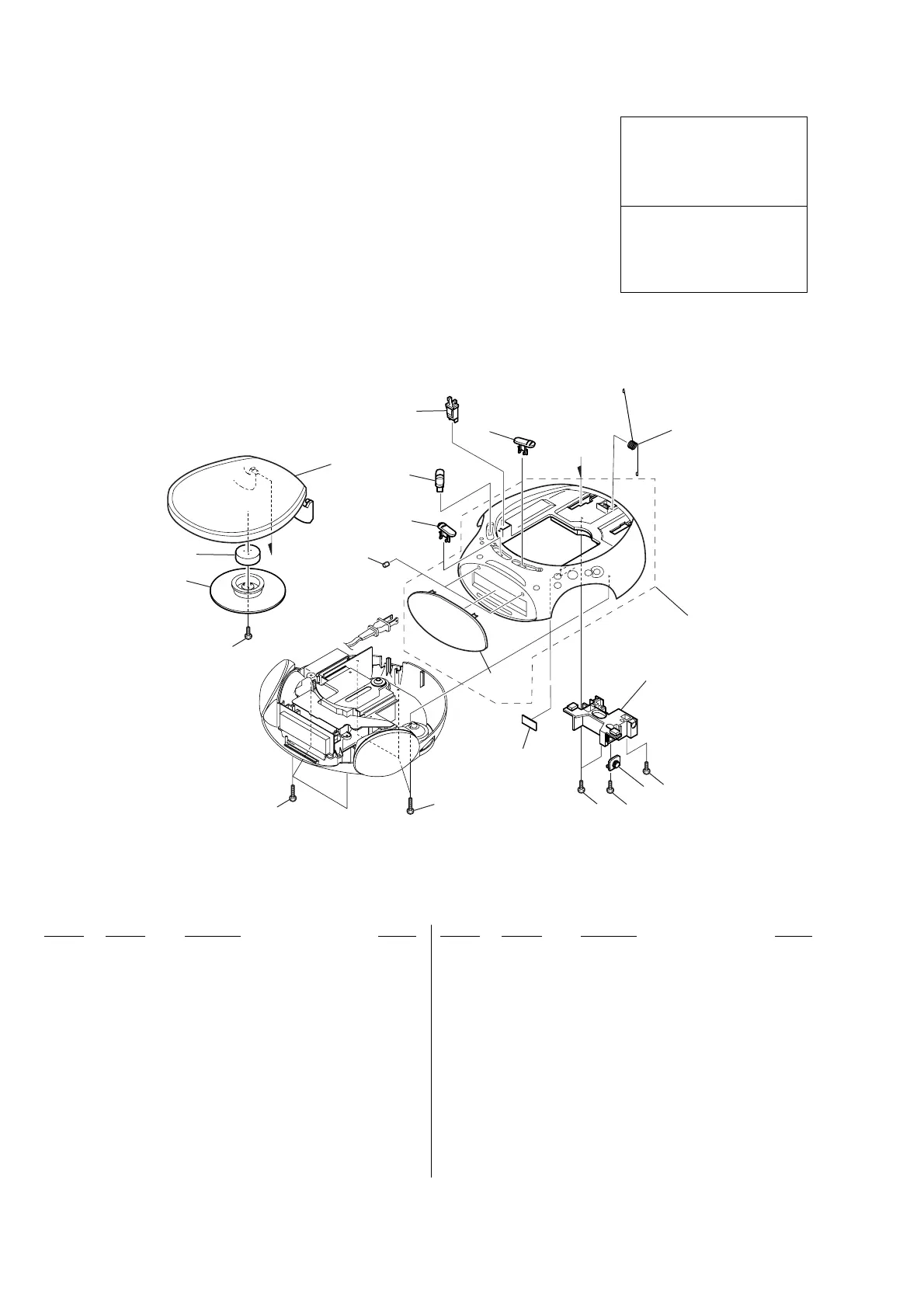

6-1. CABINET (UPPER) SECTION
Ref. No. Part No. Description Remark
1 X-3385-246-1 CABINET (UPPER) SUB ASSY
(BLACK)...(BLACK)
1 X-3385-248-1 CABINET (UPPER) SUB ASSY
(WHITE)...(WHITE)
2 3-248-349-01 HOLDER (CD)
3 3-047-468-21 DAMPER
4 3-154-113-01 CUSHION
5 3-248-341-51 KNOB (ALARM A) (WHITE)...(WHITE)
5 3-248-341-61 KNOB (ALARM A) (BLACK)...(BLACK)
6 3-248-343-51 KNOB (CD MODE) (WHITE)...(WHITE)
6 3-248-343-61 KNOB (CD MODE) (BLACK)...(BLACK)
7 3-248-342-51 KNOB (ALARM B) (WHITE)...(WHITE)
7 3-248-342-61 KNOB (ALARM B) (BLACK)...(BLACK)
8 3-019-395-01 PLATE, CHUCKING
9 1-452-899-11 MAGNET
10 X-3385-247-1 LID (CD) SUB ASSY (BLACK)...(BLACK)
10 X-3385-245-1 LID (CD) SUB ASSY (WHITE)...(WHITE)
11 3-248-357-01 SPRING (CD)
12 3-254-944-01 INDICATOR
13 3-254-145-01 SCREW (B3), (+) BV TAPPING
14 3-253-143-01 SCREW (B2.6), (+) P TAPPING
15 3-254-143-01 SCREW (B3), (+) BV TAPPING
S401 1-692-960-11 SWITCH, PUSH (1 KEY)
(Z PUSH OPEN/CLOSE)
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.
R
R
1
2
12
3
not
supplied
S401
4
5
6
7
8
9
10
A
A
11
15
15
15
14
13
13
Ver 1.1
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
