Sony ICF-CD832 - Chassis Section

30
ICF-CD832

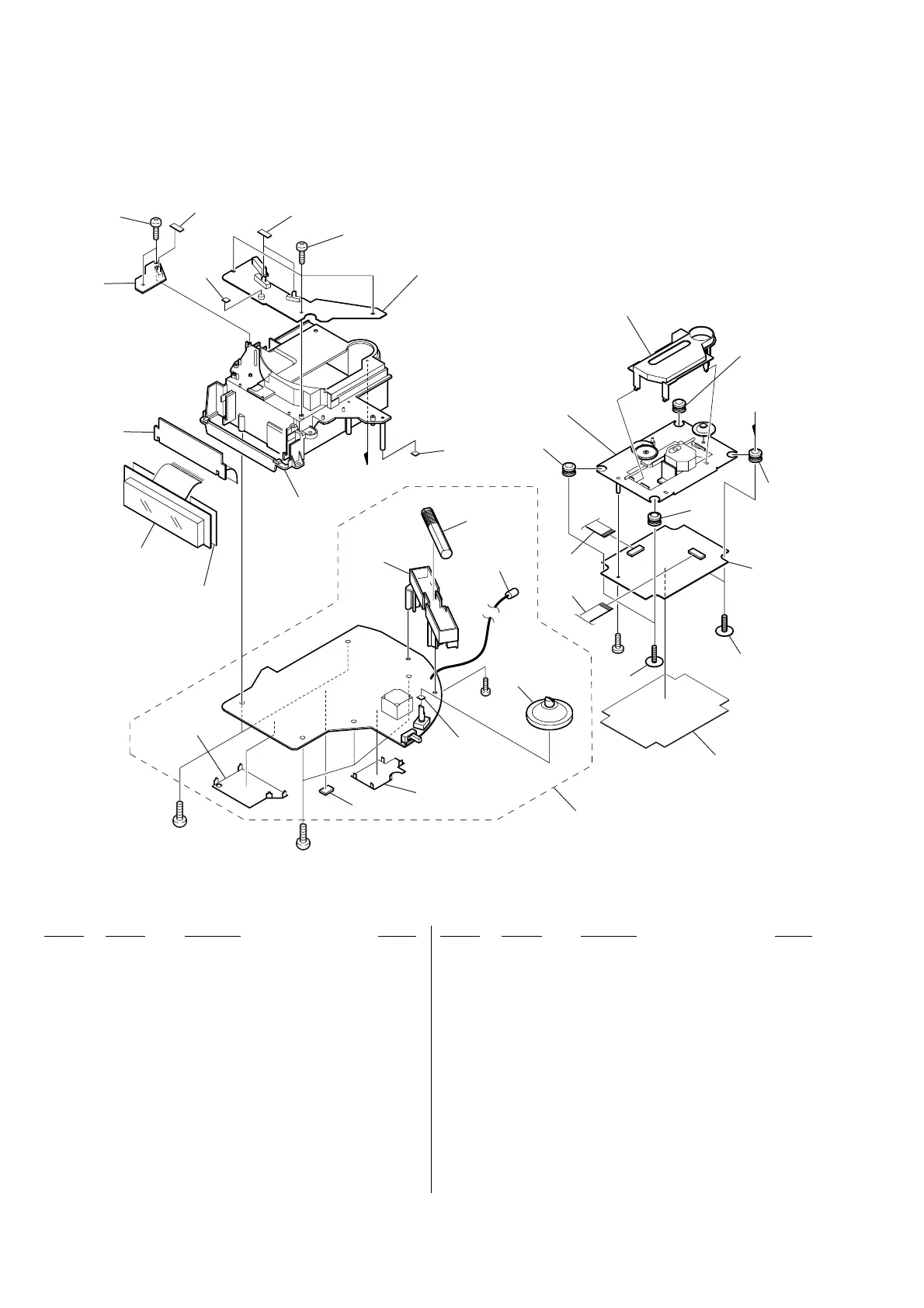

6-3. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-923-736-01 COVER, CD
102 3-046-853-01 RUBBER, VIBRATION PROOF
103 3-046-853-11 RUBBER, VIBRATION PROOF
104 1-824-018-11 CABLE, FLEXIBLE FLAT (14 CORE)
* 105 A-3683-956-A CD BOARD, COMPLETE
106 3-921-725-01 SCREW (2.6X10), +PWH
* 107 A-3347-588-A MAIN BOARD, COMPLETE (BLACK)
* 107 A-4547-112-A MAIN BOARD, COMPLETE (WHITE)
* 108 3-248-354-01 PLATE (MAIN), SHIELD
* 109 3-249-185-01 PLATE (TUNER), SHIELD
110 3-382-175-41 KNOB (V)
111 3-248-348-01 HOLDER (ANTENNA)
112 1-501-907-51 ANTENNA, FM WIRE
113 3-243-251-01 CUSHION (LIGHT GUIDE PLATE)
114 3-248-346-02 CHASSIS
* 115 A-3347-607-A KEY (A) BOARD, COMPLETE
116 3-371-765-21 SCREW (2X8), +BTP
* 117 A-3347-597-A KEY (B) BOARD, COMPLETE
118 3-256-226-01 SHEET (CD), INSULATING
* 119 A-3347-592-A DRIVE BOARD, COMPLETE
120 1-757-689-11 CABLE, FLEXIBLE FLAT (16 CORE)
121 3-831-441-11 CUSHION (B)
122 3-831-441-99 SPACER
L1 1-456-281-11 COIL, FERRITE-ROD ANTENNA (AM)
LED501 1-805-590-11 ELEMENT, LED INDICATOR (WHITE)
LED501 6-500-504-01 LED COG509T0A1 (BLACK)
#1 7-685-147-14 SCREW +P 3X10 TYPE2 NON-SLIT
#2 7-685-853-04 SCREW +BVTT 2X6 (S)
101
102
103
103
104
105
106
118
106
120
107
108
109
113
110
111
112
119
114
115
116
116
122
121
121
122
117
A
A
121
102
#1
#1
#1
#2
L1
KSM-213RDP
LED501
not supplied
Ver 1.1
