Sony ICF-CD832 - 3 Disassembly; Cabinet (Upper) Assy

7
ICF-CD832

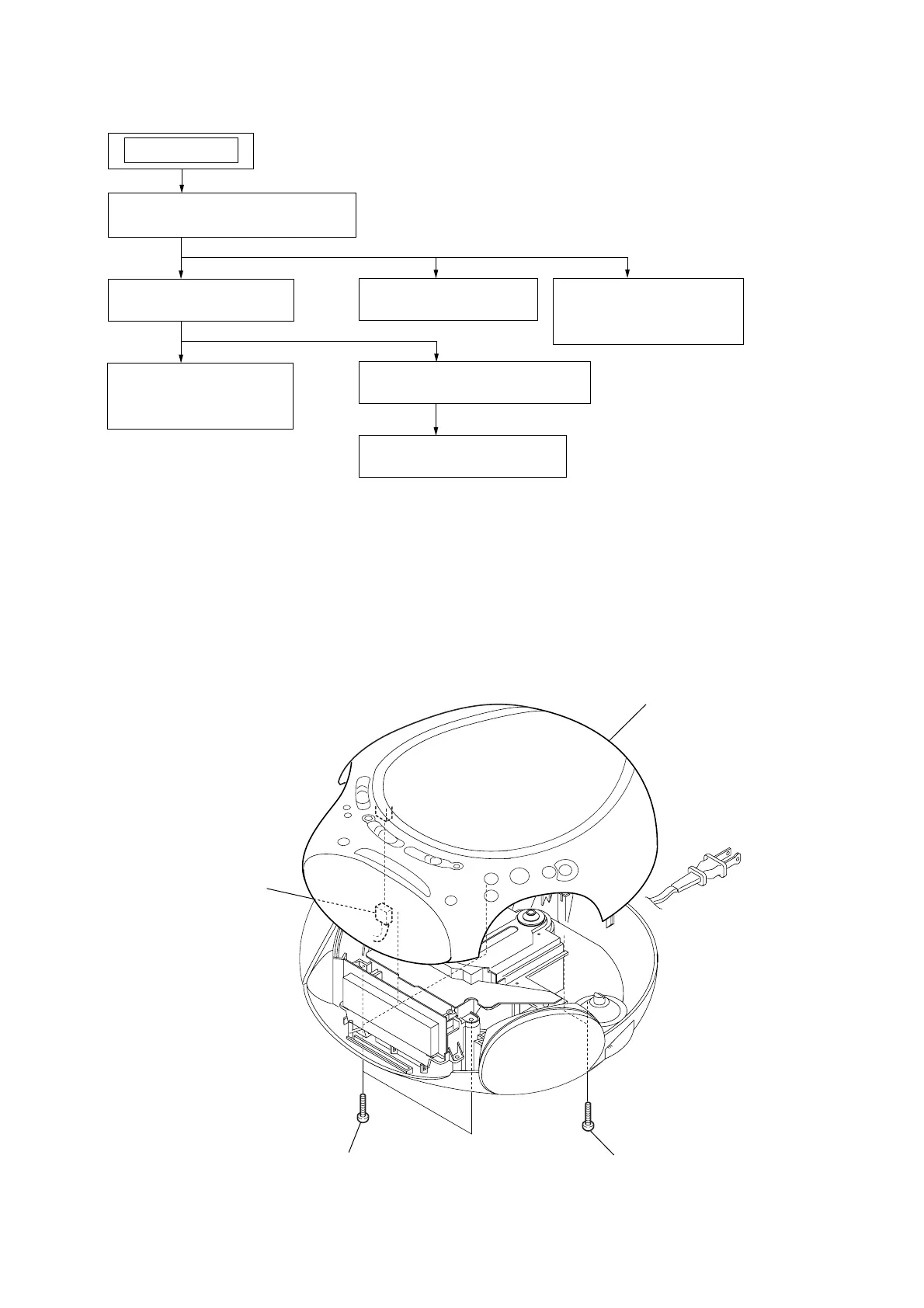

• The equipment can be removed using the following procedure.
SECTION 3
DISASSEMBLY
3-1. CABINET (UPPER) ASSY
(Page 7)
3-3. CHASSIS ASSY
(Page 8)
SET
3-4. MAIN BOARD,
DRIVE BOARD
(Page 9)
3-5. KEY (A) BOARD,
KEY (B) BOARD
(Page 9)
3-7. OPTICAL PICK-UP
(Page 10)
3-2. LID (CD)
(Page 8)
3-6. CD MECHANISM DECK
(Page 10)
3-1. CABINET (UPPER) ASSY
Note : Follow the disassembly procedure in the numerical order given.
1 two screws
(BV tapping (B3))
2 four screws
(BV tapping (B3))
3 cabinet (upper) sub ass
y
4 connector
