Sony ICF-S79 - Schematic Diagram (ICF-S79;S79 L); Schematic Diagram Notes; Signal Path

– 9 –
– 10 –
ICF-S79/S79L/S79V
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
• ¢ : internal component.
• : panel designation.
• B
+
: B+ Line.
• : adjustment for repair.
• Power voltage is dc 4.5 V and fed with regulated dc power
supply from battery terminal.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM (TV 2 – 6 ch)
( ) : AM (MW)
[]: LW

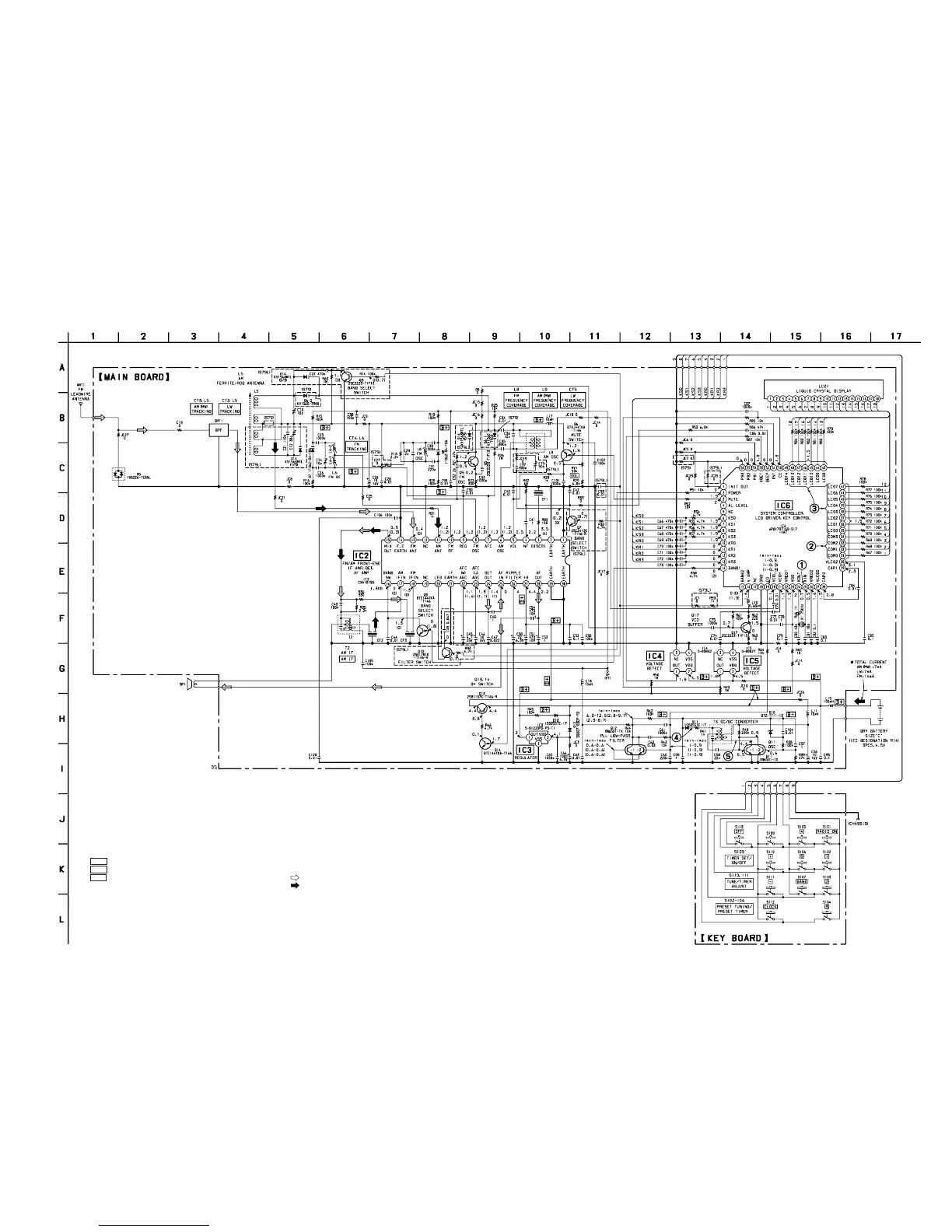

4-2. SCHEMATIC DIAGRAM (ICF-S79/S79L) • See page 11 for Waveforms and IC Block Diagrams.
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
: FM
: AM (MW/LW)
