ICF-SW1 |
AN-101

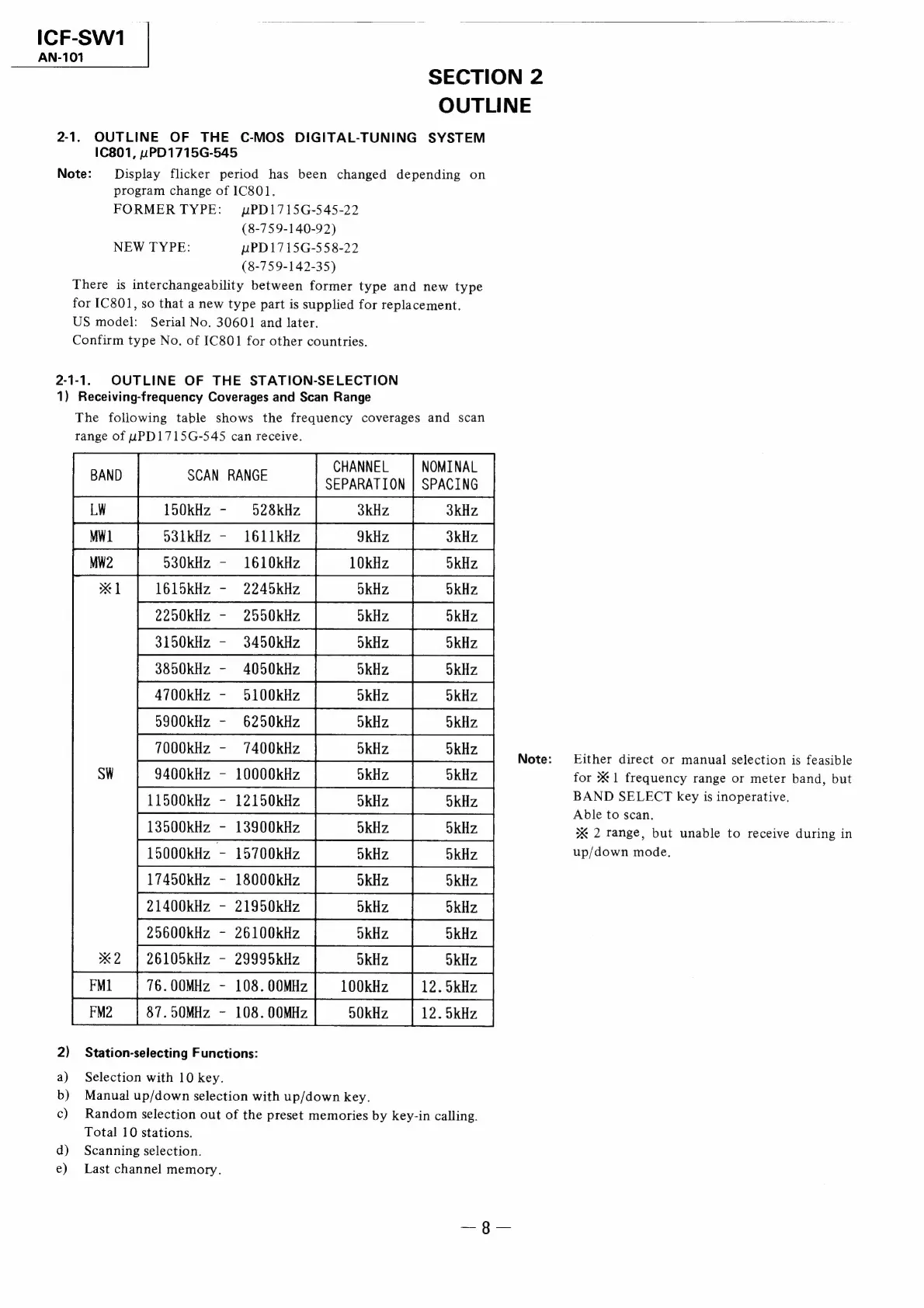

SECTION 2
OUTLINE
2-1. OUTLINE OF THE C-MOS DIGITAL-TUNING SYSTEM
1C801, u~PD1715G-545
Note: Display flicker period has been changed depending on
program change of IC801.
FORMERTYPE: pPD1715G-545-22
(8-759-140-92)
NEW TYPE: UPD1715G-558-22
(8-759-142-35)
There is interchangeability between former type and new type
for IC801, so that a new type part is supplied for replacement.
US model: Serial No. 30601 and later.
Confirm type No. of IC801 for other countries.
2-1-1. OUTLINE OF THE STATION-SELECTION
1)
2)
a)
b)
c)
d)
e)
Receiving-frequency Coverages and Scan Range
The following table shows the frequency coverages and scan
range of uUPD1715G-545 can receive.
CHANNEL
BAND
SCAN
RANGE
SEPARATION
|
SPACING
Station-selecting Functions:
NOMINAL
Note:
Selection with 10 key.
Manual up/down selection with up/down key.
Random selection out of the preset memories by key-in calling.
Total 10 stations.
Scanning selection.
Last channel memory.
Either direct or manual selection is feasible
for X%1 frequency range or meter band, but
BAND SELECT key is inoperative.
Able to scan,
% 2 range, but unable to receive during in
up/down mode,
