ICF-SW1
AN-101

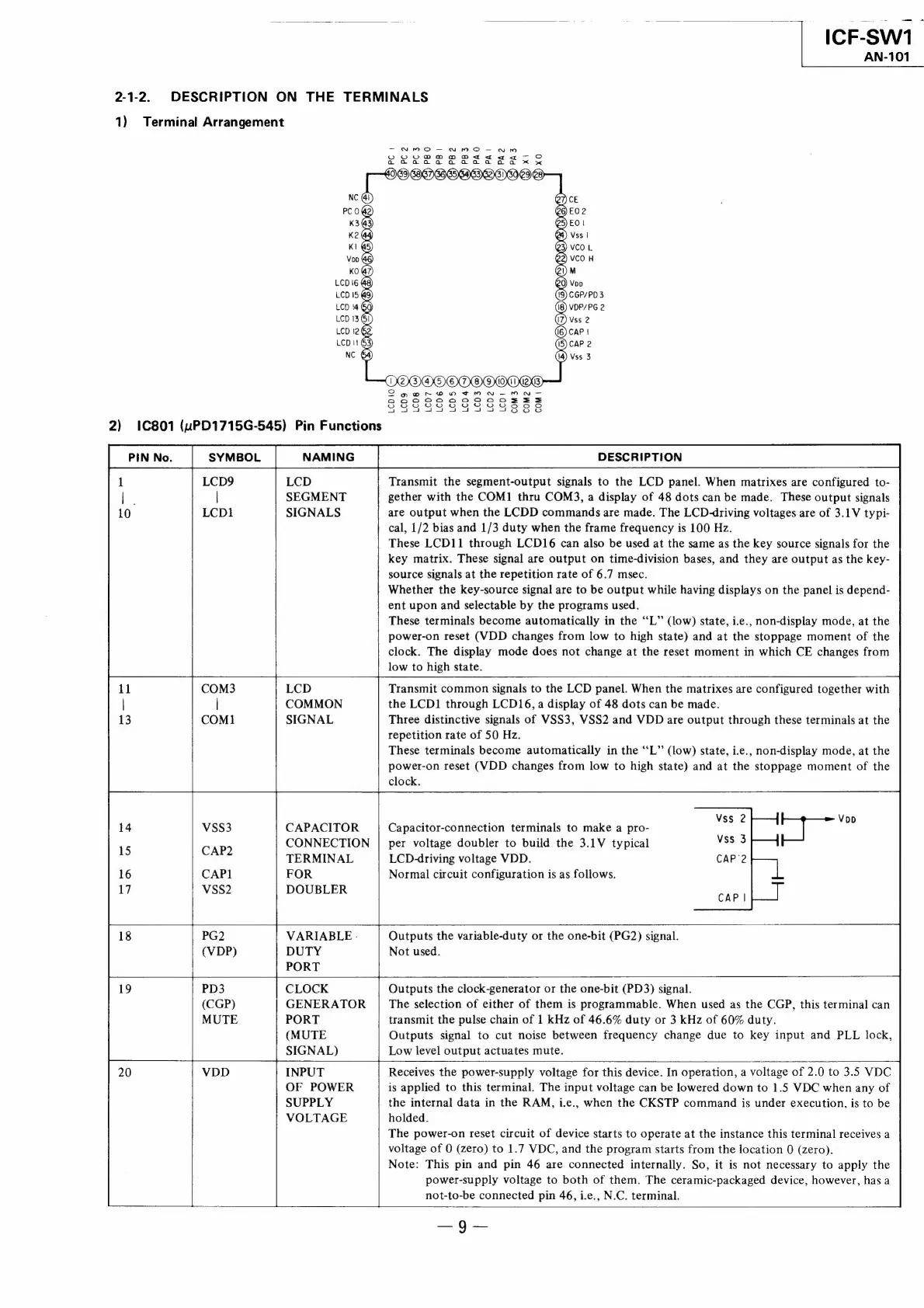

2-1-2.
2) 10801 (uPD1715G-545) Pin Functions
DESCRIPTION ON THE TERMINALS
1) Terminal Arrangement
@7) CE
QE) E02
@5) EO |
@4) Vss |
@3) VCO _L
@2) VCO H
QI) M
Voo
@ CGP/PD3
8 VDP/PG 2
Vss 2
(© car |
(15) CAP 2
(14) Vss 3
ODO ODE SHON
SCprorwnrtmn- MN —
aaanannaanannanktstzs
O'S -S°9'9 3 3.553 S98-8:8
PIN No. SYMBOL NAMING DESCRIPTION
1 LCD9 LCD Transmit the segment-output signals to the LCD panel. When matrixes are configured to-
P.. | SEGMENT gether with the COM1 thru COM3, a display of 48 dots can be made. These output signals
10 LCD1 SIGNALS are output when the LCDD commands are made. The LCD-driving voltages are of 3.1V typi-
cal, 1/2 bias and 1/3 duty when the frame frequency is 100 Hz.
These LCD11 through LCD16 can also be used at the same as the key source signals for the
key matrix. These signal are output on time-division bases, and they are output as the key-
source signals at the repetition rate of 6.7 msec.
Whether the key-source signal are to be output while having displays on the panel is depend-
ent upon and selectable by the programs used.
These terminals become automatically in the ‘“‘L” (low) state, i.e., non-display mode, at the
power-on reset (VDD changes from low to high state) and at the stoppage moment of the
clock. The display mode does not change at the reset moment in which CE changes from
low to high state.
11 COM3 LCD Transmit common signals to the LCD panel. When the matrixes are configured together with
| | COMMON the LCD1 through LCD16, a display of 48 dots can be made.
13 COM1 SIGNAL Three distinctive signals of VSS3, VSS2 and VDD are output through these terminals at the
repetition rate of 50 Hz.
These terminals become automatically in the ‘“‘L” (low) state, i.e., non-display mode, at the
power-on reset (VDD changes from low to high state) and at the stoppage moment of the
clock.
14 VSS3 CAPACITOR Capacitor-connection terminals to make a pro-
15 CAP? CONNECTION | per voltage doubler to build the 3.1V typical
TERMINAL LCD-4driving voltage VDD.
16 CAP1 FOR Normal circuit configuration is as follows.
17 VSS2 DOUBLER
18 PG2 VARIABLE; | Outputs the variable-duty or the one-bit (PG2) signal.
(VDP) DUTY Not used.
PORT
fs
19 PD3 CLOCK Outputs the clock-generator or the one-bit (PD3) signal.
(CGP) GENERATOR The selection of either of them is programmable. When used as the CGP, this terminal can
MUTE PORT transmit the pulse chain of 1 kHz of 46.6% duty or 3 kHz of 60% duty.
(MUTE Outputs signal to cut noise between frequency change due to key input and PLL lock,
SIGNAL) Low level output actuates mute.
enna essa Se
20 VDD INPUT Receives the power-supply voltage for this device. In operation, a voltage of 2.0 to 3.5 VDC
OF POWER is applied to this terminal. The input voltage can be lowered down to 1.5 VDC when any of
SUPPLY the internal data in the RAM, i.e., when the CKSTP command is under execution, is to be
VOLTAGE holded.
The power-on reset circuit of device starts to operate at the instance this terminal receives a
voltage of 0 (zero) to 1.7 VDC, and the program starts from the location 0 (zero).
Note: This pin and pin 46 are connected internally. So, it is not necessary to apply the
power-supply voltage to both of them. The ceramic-packaged device, however, has a
not-to-be connected pin 46, i.e., N.C. terminal.
—9—
