Sony ILCE-7SM2 - Rear Section-2 Parts Diagram; Rear Section-2 Component List; Disassembly Procedures; #1 X 1 Screw Assembly

ILCE-7SM2_L2
2-4

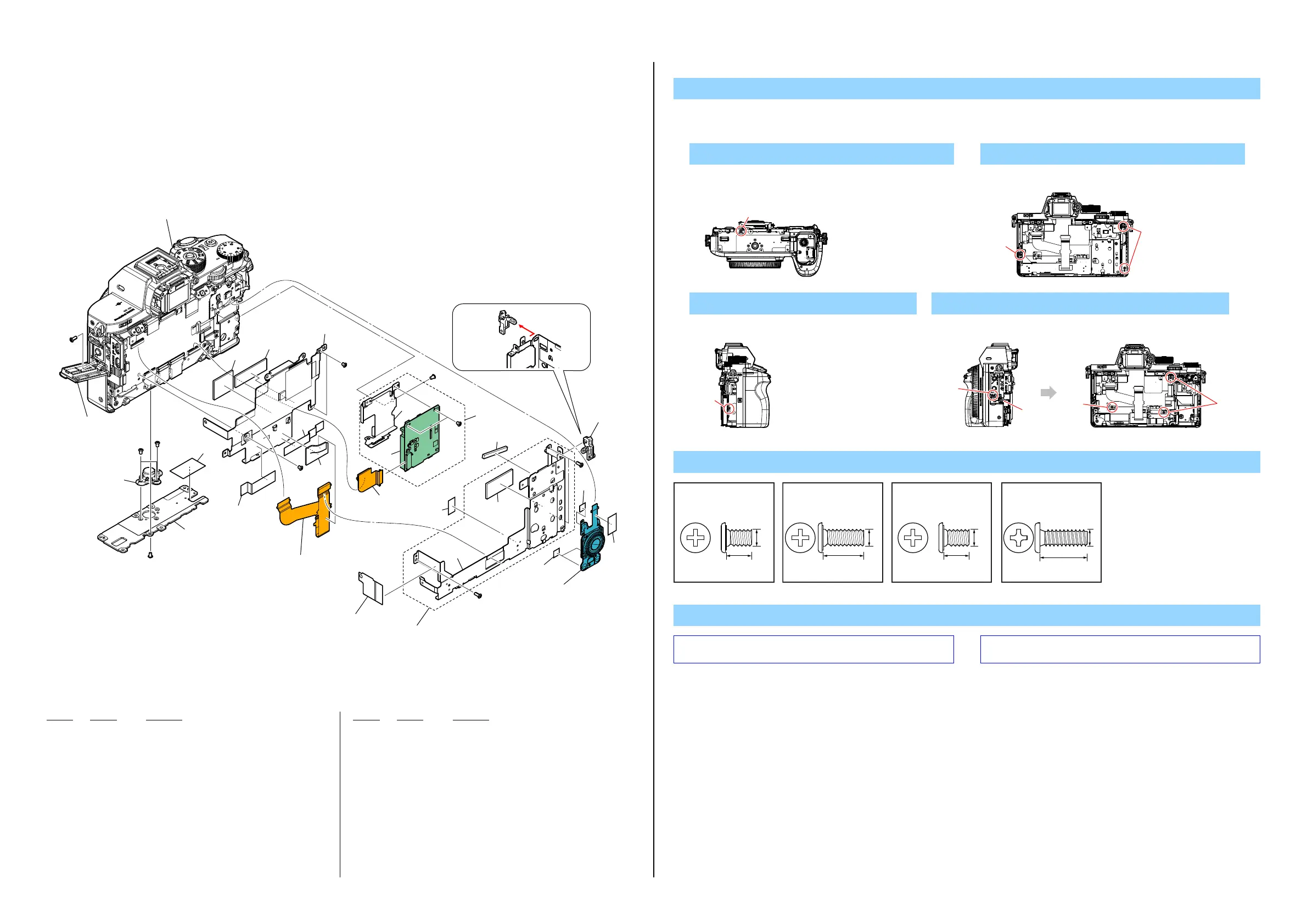

2-1-2. REAR SECTION-2
ns: not supplied
DISASSEMBLY
1. Remove in numerical order (1 to 7) in the left figure.
3 #1 X 1
#1
Bottom View
Ref. No. Part No. Description
Ref. No. Part No. Description
51 A-2071-012-A CN-1032 BOARD, COMPLETE (SERVICE)
52 1-893-795-11 FP-2279 FLEXIBLE BOARD (Note)
53 1-894-534-11 LC-1027 FLEXIBLE BOARD
54 4-559-277-01 SCREW (786), TRIPOD
55 4-559-276-02 FRAME, BM
56 4-575-772-01 SHEET (A (795)), SY RADIATION
57 X-2591-923-1 HEAT SINK ASSY (795), SY
58 X-2591-925-1 FRAME ASSY (795), MAIN
60 4-559-169-01 HOLDER (786), REC BUTTON
61 1-492-592-11 SWITCH BLOCK, CONTROL (BK77900)
62 4-567-362-01 SHEET, DROP PROTECTION B
63 4-567-457-01 SHEET, DROP PROTECTION D
64 4-564-092-01 CUSHION, REAR SW
65 4-576-690-01 SHEET (795), JK SLIDER
66 4-575-773-01 SHEET (B (795)), SY RADIATION
67 4-576-740-01 SHEET (B (795)), RADIATION (GF)
68 4-575-783-01 SHEET (795), REAR LC WP
69 4-575-771-01 SHEET (A (795)), RADIATION (GF)
#1 2-635-562-11 SCREW (M1.7)
#2 2-635-562-31 SCREW (M1.7)
#124 2-599-475-01 SCREW (M1.7)
#309 4-300-115-21 TAPPING (1.7) (CH)
5 #1 X 1
#1
Left View
4 #2 X 1, #309 X 2
Back View
#2
#309
7 Open the Jack Lid (7) → #1 X 1 → #1 X 3
#1
#1
Back View
#1
Right View

Screw
#1: M1.7 X 2.5
(Black)
2-635-562-11
2.5
1.7
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
2.0
1.7
#124: M1.7 X 2.0
(Silver)
2-599-475-01
#309: M1.7 X 5.0 (Tapping)
(Black)
4-300-115-21
1.7
5.0
Note: Refer to “Assembly-4: Notes on Assembling the FP-2279
Flexible Board” on page 3-1.
Note:
 3-1ページの“Assembly-4: NotesonAssemblingtheFP-
2279FlexibleBoard”を参照してください。
Note
Slide and pull
51
52
(Note)
62
63
61
64
65
64
60
58
53
66
56
69
68
67
57
54
55
#1
#2
#309
#1
#1
ns
#1
#1
#124
ns
ns
ns
n
s
#1
#1
1
2
3
5
6
7
4
Main Board Section
(See page 2-5)
7
ns
