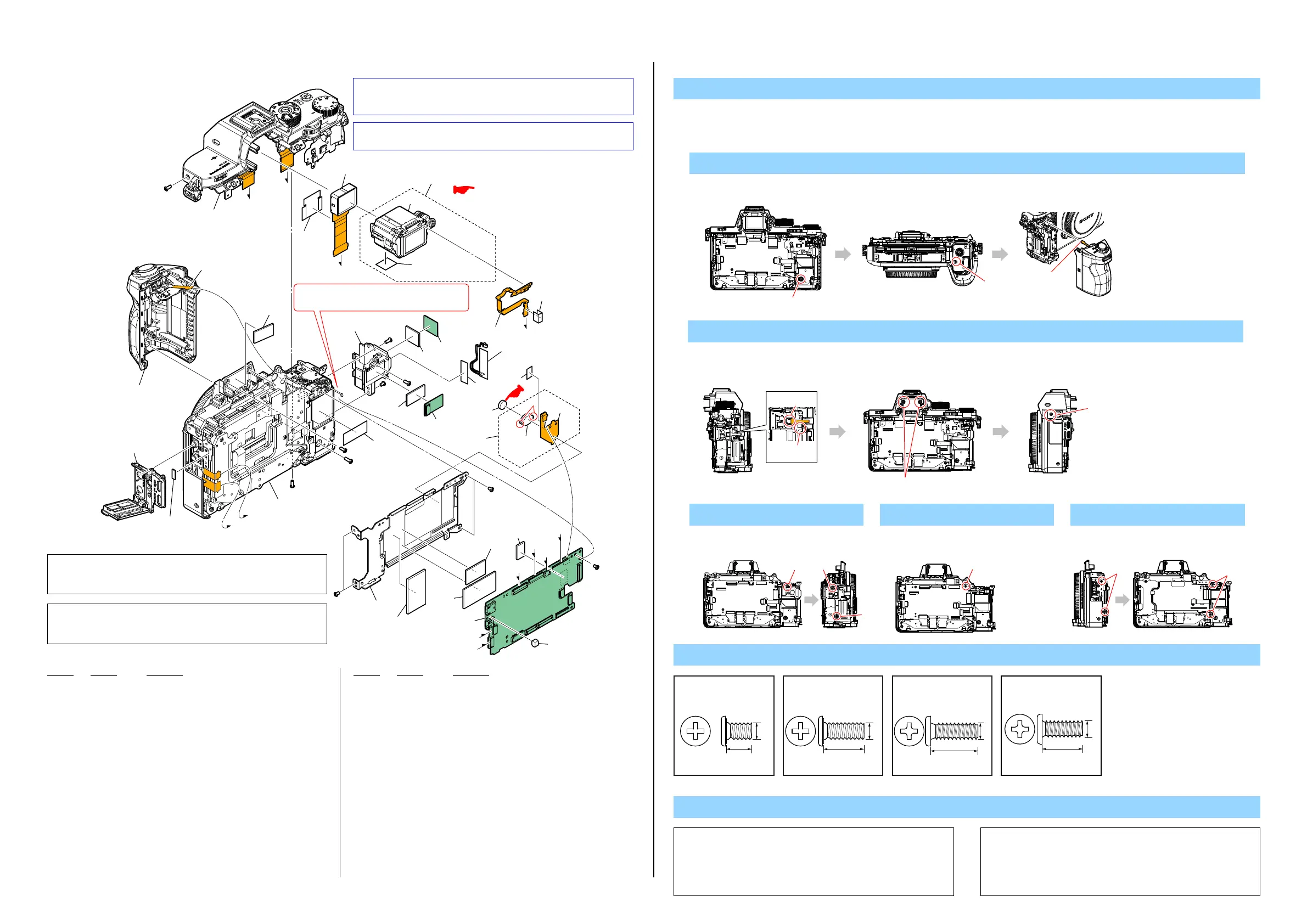

Sony ILCE-7SM2 - Main Board Section Parts Diagram; Main Board Section Component List; Disassembly Procedures; #309 X 1 Screw Assembly

ILCE-7SM2_L2
2-5
1
A
D
C
F
F
D
E
C
E
A
B
B
#2
(Note 2)
(Note 1)
(Size 10.6 x 12.0 mm)
#1
#1
#1
#1
(Note 1)
BH1100
BT1100
ns
#327
#327
#2
#309
#2
4
7
8
3
2
5
6
Top Cabinet Section
(See page 2-9)
1
Grip Cover Section
(See page 2-10)
Mecha Device
Section
(See page 2-6)
101
102
123
LCD902
104
107
108
109
110
111
112
115
116
113
ANT901
106
117
119
121
118
124
125
ns
When removing and re-assembling,
pull this connector vertically from the board.
: BT1100 (LITHIUM SECONDARY
BATTERY) Board on the mount
position.
(See page 6-55 of Level 3)

120
122
120
ns
DISASSEMBLY
1. Remove in numerical order (1 to 8) in the left figure.
2. The meaning of the symbol in left figure is as follows. Be careful when you remove it.
◇: Solder
2-1-3. MAIN BOARD SECTION
ns: not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
1 #309 X 1 → #2 X 1 → Flexible Board (1)
#309
#2
Back View Bottom View

Note 1:
Replace the battery holder (BH1100) together when
replacing the lithium secondary battery (BT1100) on the
BH-1003 flexible board. (The battery holder removed once
cannot be used again.) When mounting these parts, mount
new battery holder first and attach new lithium storage
battery next.
Note 1:
 BH-1003フレキシブル基板のリチウム蓄電池（BT1100）を交換
する場合はバッテリホルダ（BH1100）も同時に新品に交換して
くだ さい 。
 （一度使用したバッテリホルダは再使用できません。）部品取り
付けの際は、先にバッテリホルダを取り付けてからリチウム蓄
電池を装着してください。
101 X-2591-922-1 BASE ASSY (795), JK
102 4-559-295-01 SHEET, VF FLEXIBLE PROTECTION
104 A-2081-495-A VF BLOCK ASSY (795)
106 A-2075-938-A ES-1002 FLEXIBLE BOARD, COMPLETE
107 4-575-780-01 VF SHEET, RADIATION (795)
108 4-559-171-01 HOLDER, GYRO
109 4-559-173-01 CUSHION, GYRO G
110 A-2064-122-A GY-1008 BOARD, COMPLETE
111 4-559-172-01 CUSHION, GYRO
112 A-2064-121-A GY-1007 BOARD, COMPLETE
113 4-559-168-01 SHEET, N
115 X-2591-924-1 FRAME ASSY (795), SY MAIN
116 A-2084-513-A SY-1063 BOARD, COMPLETE (SERVICE)
117 A-2075-939-A BH-1003 FLEXIBLE BOARD, COMPLETE
118 4-575-770-01 SHEET (795), LIGHT SPACER
119 4-575-774-01 SHEET (C (795)), SY RADIATION
120 4-575-775-01 SHEET (D (795)), SY RADIATION
121 4-576-684-01 SHEET (E (795)), SY RADIATION
122 4-576-739-01 GASKET (HD (795))
123 CAUTION SHEET, VF FLEXIBLE ADHESIVE
124 4-578-833-01 SHEET (C (795)), RADIATION (GF)
125 4-579-986-01 SHEET (ES), ELECTROSTATIC
ANT901 A-2066-642-A SOLDERING_NFC BLOCK ASSY
 BH1100 1-251-928-21 SOCKET, BATTERY (Note 1)
 BT1100 1-756-134-16 BATTERY, LITHIUM (SECONDARY) (Note 1)
LCD902 A-2086-296-A ECX331CA-2_SERVICE (Note 2)
#1 2-635-562-11 SCREW (M1.7)
#2 2-635-562-31 SCREW (M1.7)
#309 4-300-115-21 TAPPING (1.7) (CH)
#327 4-300-113-11 TAPPING (1.7) (CH)
Note
Screw
Note 2: Refer to “1-2. NOTES FOR REPLACING THE EVF
DISPLAY DEVICE (LCD902) OR THE SY-1063 BOARD” on
page 1-1.
Note 2:
 1-4ページの“1-2.EVF表示素子（LCD902）またはSY-1063基板
交換時の注意”を参照してください。
3 Flexible Board (3-1) → Harness (3-2) → #2 X 3
Right ViewLeft View Back View
-1
-2
#2
#2
#327 #327
#1
Back View Left View
Back View
#1
#1
Back ViewRight View
#1
5 #327 X 2, #1 X 1 7 #1 X 1 8 #1 X 4
#1: M1.7 X 2.5
(Black)
2-635-562-11
2.5
1.7
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#309: M1.7 X 5.0 (Tapping)
(Black)
4-300-115-21
1.7
5.0
#327: M1.7 X 4.0 (Tapping)
(Silver)
4-300-113-11
4.0
1.7
CAUTION
For the part of 123: VF Flexible Adhesive Sheet, cut the Adhesive Sheet
(2-649-300-01) into the desired length and use it.
注意
123:VFFlexibleAdhesiveSheetは，AdhesiveSheet(2-649-300-01)
を切って使用すること。
