2. DESCRIPTION OF THE FRONT/REAR VIEW

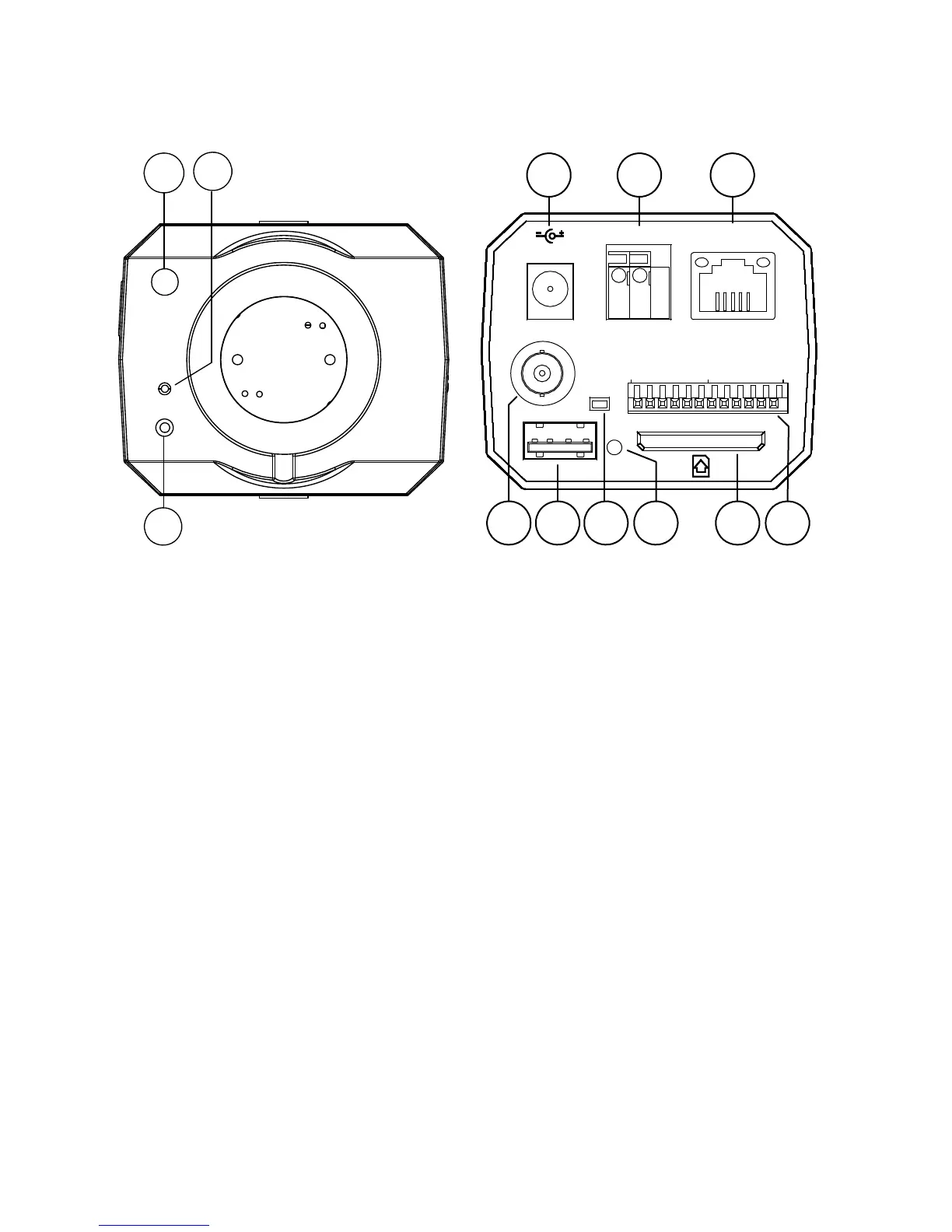

2.1 Front Panel and Rear Panel
-- Front Panel -- -- Rear Panel --
1
3
2
SD / SDHC
ETHERNET
(PoE)
AC 24V
DC 12V
VIDEO
USB
112
RESET
6
!
456
7
8
9
10 11 12
1. Light Sensor: Registers the quality of light in the camera’s environment, and controls the iris
shuttle to provide better information concerning the light.
2. MICROPHONE: The IP Camera has an additional audio function. The device has a
microphone built into its front panel which records sound.
3. POWER indicator: Indicates the power status of the unit.
4. Plug Inlet: A DC 12V inlet that connects to an external power supply.
5. Plug Inlet: An AC 24V inlet that connects to an external power supply.
6. ETHERNET 10/100 Connector: This is a standard RJ-45 connector for 10/100 Mbps
Ethernet networks. PoE (Power over Ethernet) function:
Provides power to the device via the
same cable as used for the network connection.
7. VIDEO OUT Connector: The connector provides the unit’s composite video signals to a
monitor.
8. USB port: The user can use a USB device cable to connect the IP camera to the USB port on
the PC.
9. RESET: Recover to factory default.
10. LED indicator: The green light indicates the unit is activating and the SD card cannot be
removed.
11. SD CARD slot: This is used for updating system software and archiving / accessing critical
images.
12. ALARM I/O: This is a 12-PIN connector including the ALARM IN/OUT, ALARM RESET,
GROUND and AUDIO items for connecting with external devices.
